Adaptive Technologies MM-060 60LB Indoor Speaker Wall Mount, Single Unit

Adaptive Technologies MM-060 60LB Indoor Speaker Wall Mount, Single Unit

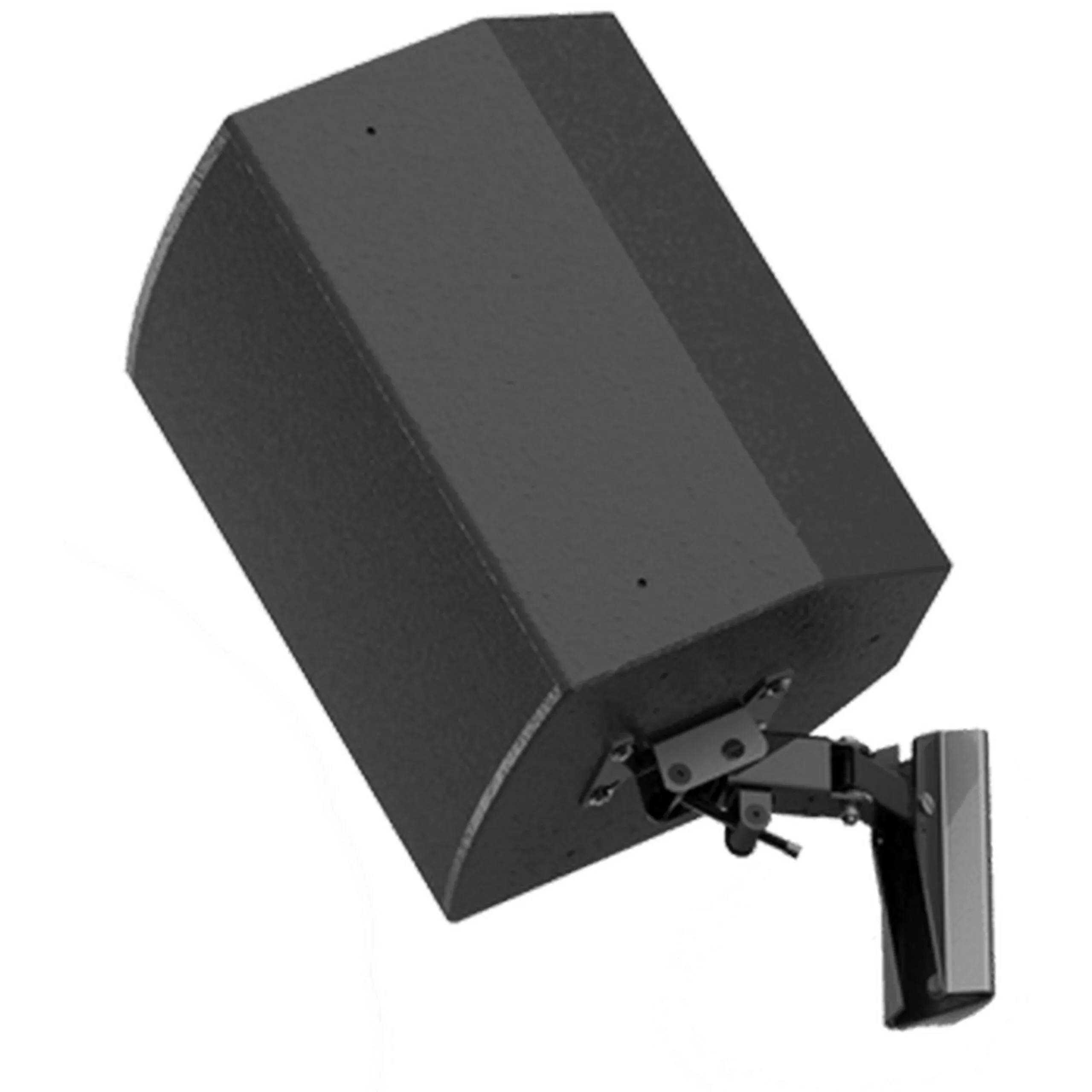

TheMultiMount MM-060 Indoor Speaker Wall Mount attaches both to the back andbottom panels of loudspeakers and aims them from walls and other verticalstructures.

Oncesecured, the mount offers up to 180 degrees of pan angle adjustments and up to45 degrees of no-drift tilt adjustments, compliments of a unique screw drivetilt mechanism.

TheMultiMount MM-060 Indoor Speaker Wall Mount is exceptionally easy to installand aim most mid-sized loudspeakers.

They aresolidly constructed with built in safety features and a load-rating of 7:1design factor.

Theinstallation sequence makes it easy for the installer.

Key Features

• Weatherresistant for covered outdoor and indoor use
• Infiniteno-drift tilt adjustments with screw-drive.
• Pan anglesecured with clutch style lock.
• Mounts towalls, studs and optional stud plate.
• Wall platequick install.
• Adapts to 4hole mounting patterns including
• 2-3/4” x 5”and 2” X 4-1/4”

TechnicalSpecifications

Material
StructuralSteel
Finish
Powder Coat
Color
Black
Tilt Adjustment
45 degrees
Swivel Adjustment
180 degrees
WLL
60 lbs.(27.3 Kg) max.
Design Factor
7:1 ratio
Net wgt
6.1 lbs.(2.8 Kg) each
Shipping wgt
8 lbs. (3.6Kg) each
Pack Count
1units/carton
