Adaptive Technologies SAS-100-CM Steerables Indoor Ceiling Mount

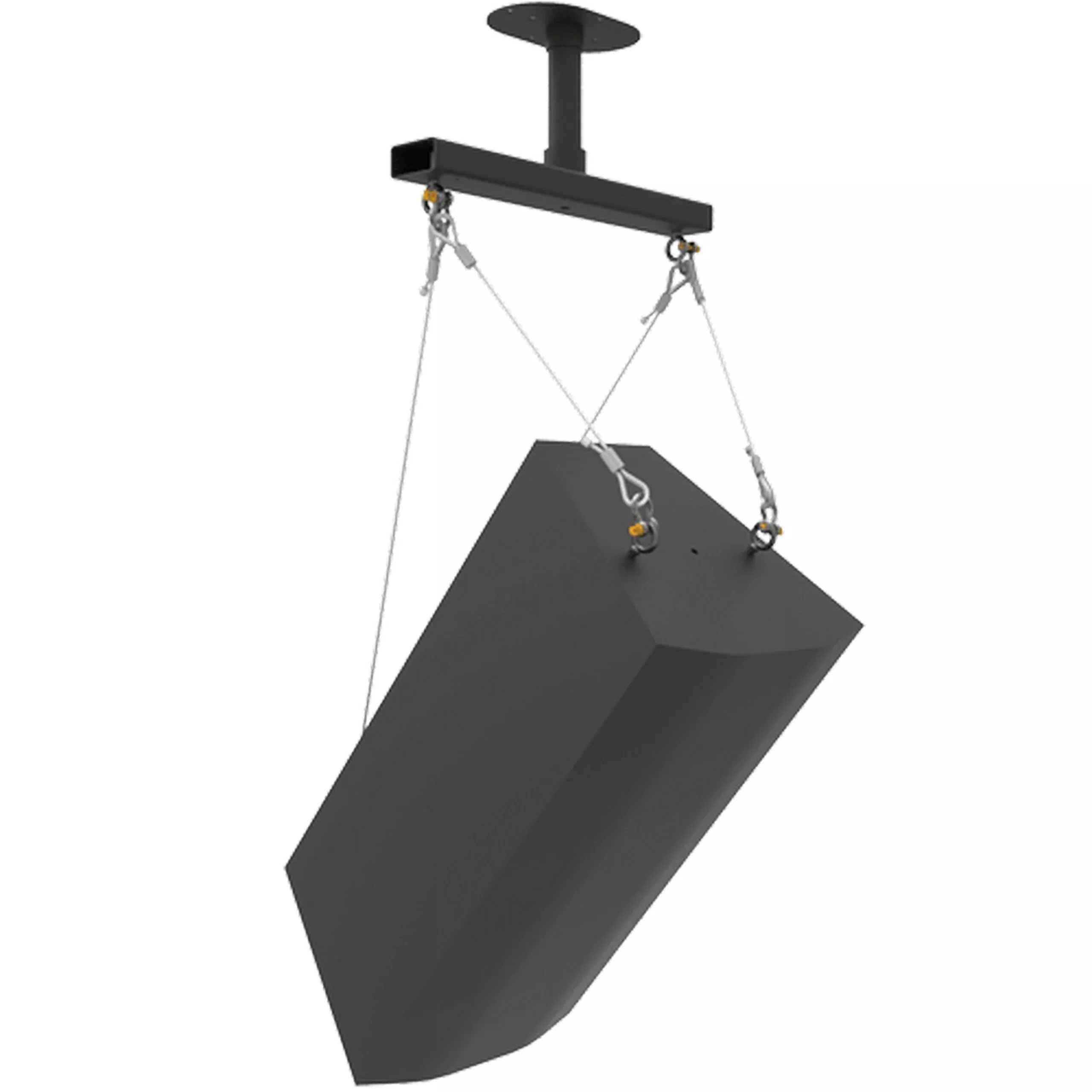

The Steerables Ceiling Mount, SAS-100-CM, suspends and aimsloudspeakers and other objects weighing up to 100 lbs/45 Kg up close to ceilingand other overhead surfaces. This design is ideal for applications wherecabinets equipped with suspension points need to be suspended and aimed, closebut out of reach of the audience. Typical applications include churches,schools, gymnasiums, auditoriums, theme parks, nightclubs, bars andrestaurants. Loudspeaker cabinets equipped with suspension or mounting pointscan be easily mounted and aimed from ceilings and other structurally secureoverhead structures with unprecedented ease of installation and preciseadjustments.
Key Features
- Suspends and aims flyable and mountable loudspeakers
- Secures to ceiling and other overhead structures usingstandard schedule 40, 1-1/2” diameter pipe.
- More headroom keeps cabinets out of reach
- Unique cross arm steering mechanism offers 360 of pancontrol
- Significant reductions in installation and planning time
- Adapts to standard Adaptive U-Series mounts and SteerablesTilt Cable Kits
Technical Specifications
Material
Structural Steel Alloy
Finish
Powder Coat
Color
Black
Pan Rotation
360 horizontal swivel max.
Working Load Limit
100 lbs./45 kg.
Design Factor
10:1 ratio based on ultimate yield point
Net Weight
11.5 lbs./5.2 Kg.
Shipping Weight
12.5 lbs./5.7 Kg
Pack Count
1/carton
