Adaptive Technologies SAS-500-WM-G Steerables Line Array Speaker Wall Mount, Grey

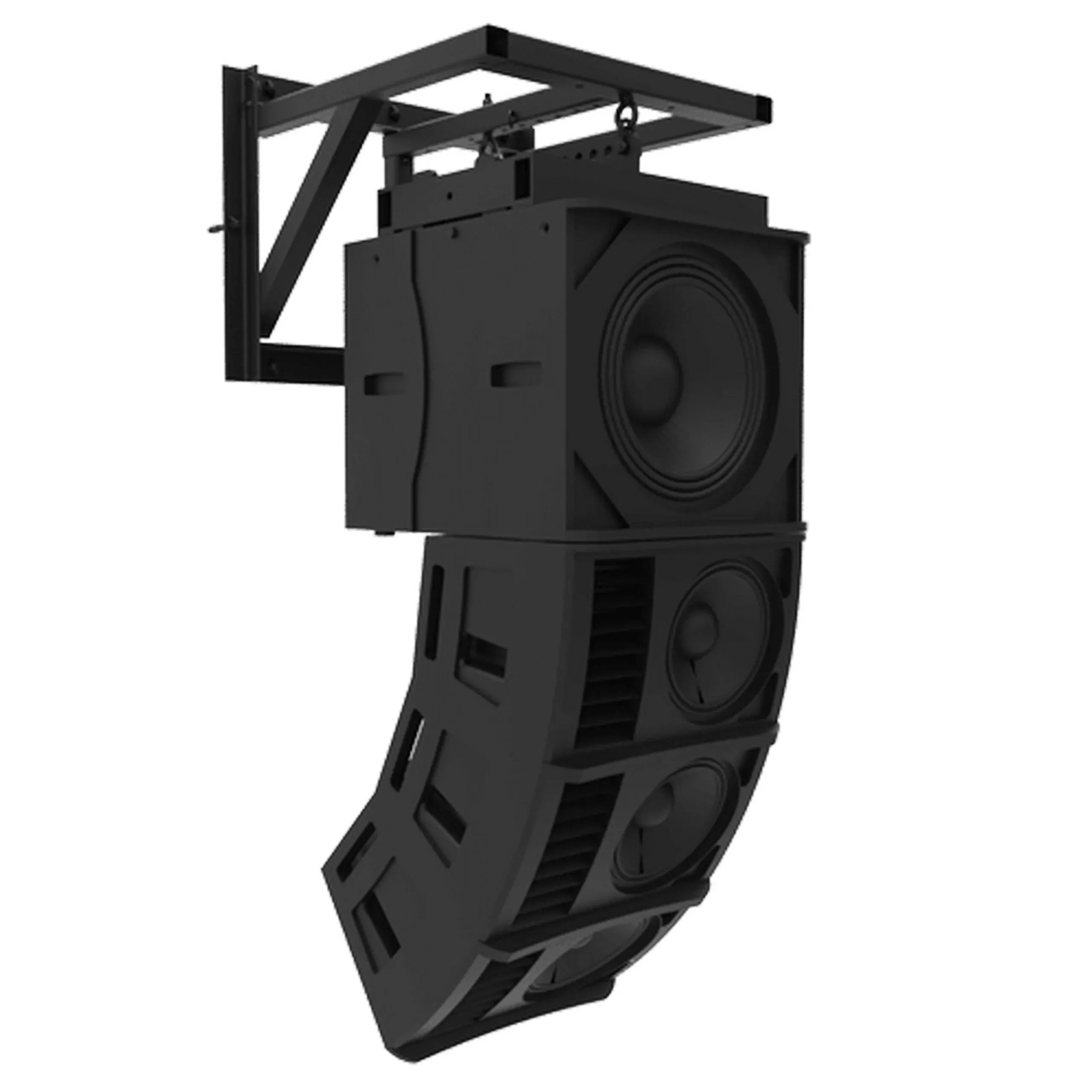

The Steerables Line Array Wall Mount installs and aims linearrays on either side of a stage or building. It’s heavy black powder-coatedsteel framework assures safe installations and installs permanently. LineArrays suspend from their own overhead rigging points, which allows for thedesired tilt angle. Pan angles, up to 45 degrees left or right are achieved byway of an upper cross arm to aim the line array into the desired angle. Anoutdoor version, the SAS-500-WM-G, comes in a weather rated galvanized finish.
Key Features
- Permanently supports small & mid-size line arrays
- Easy installation – goes up in minutes
- Provides up to 45 degrees of pan angle
- Utilizes the Line Array’s grid for down tilt
- Rugged black powder coat finish
Technical Specifications
Material
Structural alloy steel shapes
Finish
Black Powder Coat
Color
Black
Pan Angle
Up to +/- 45 degrees
Tilt Angle
See line array specifications
WLL
500 lb./227 Kg
Design Factor
5:1
Content
1/carton
