Adaptive Technologies SB-38 38 Inch Speaker and Line Array Rigging Swivel Beam

Adaptive Technologies SB-38 38 Inch Speaker and Line Array Rigging Swivel Beam

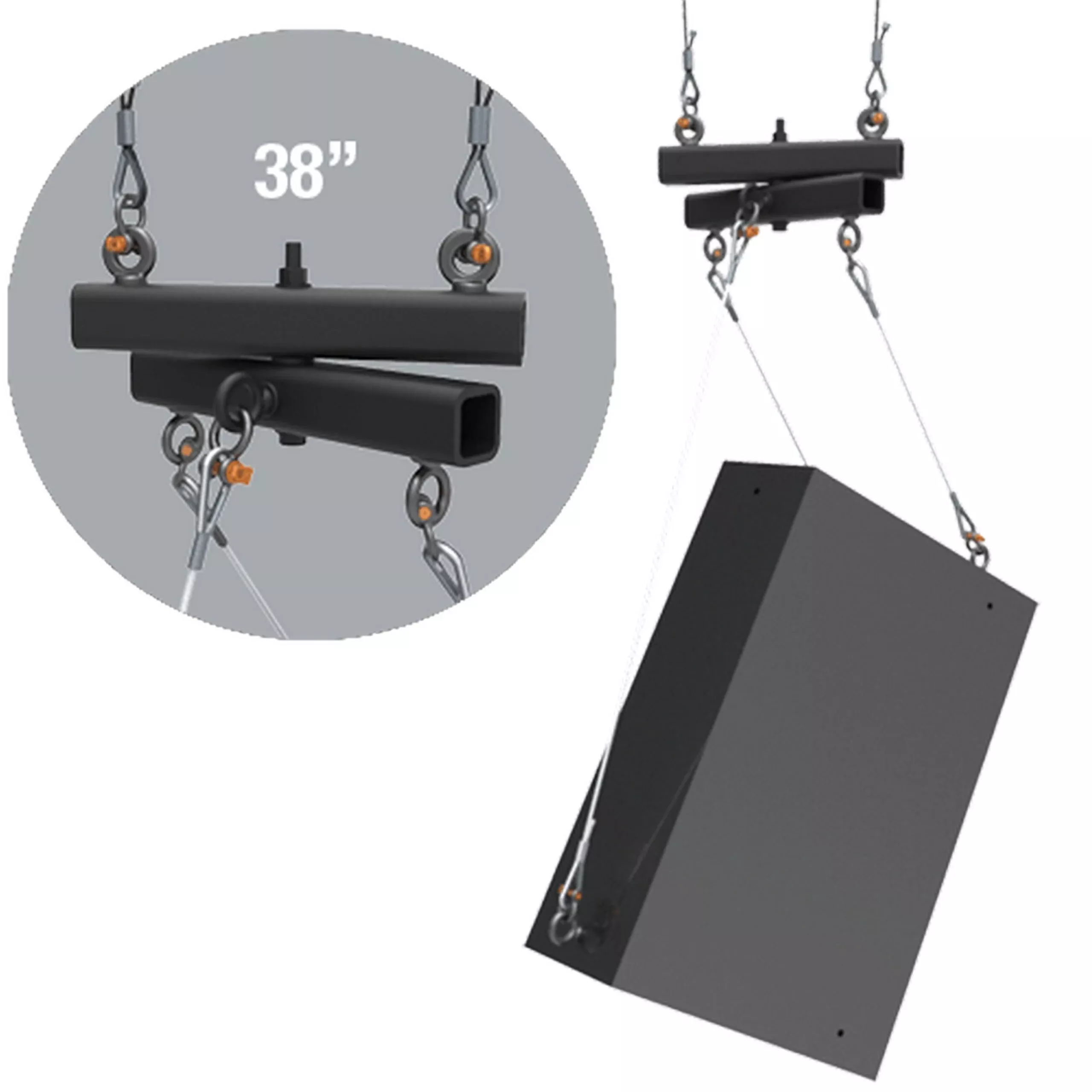

The SwivelBeam is an easy to use load-rated and off theshelf loudspeaker rigging and aiming system from single loudspeakers to fullline arrays. It is ideal for aiming sound in left and right of houseconfigurations and provides side and backfills where speakers cannot be wallmounted. The upper cross arm of the SwivelBeam rigs from two overheadsuspension points. The lower cross arm supports the loudspeaker and rotatesrelative to the upper section, horizontally, up to 360. This gives theinstaller precise horizontal aiming of sound. For precise vertical aiming, aself-contained cabinet located behind the lower cross arm. Typical venuesinclude theatres, churches, school auditoriums, gymnasiums, sport arenas,meeting halls and theme park attractions.

Key Features

• Central pivot for steering
• Rear pull back point for tilting
• Rugged Steel Construction
• Powder Coat Finish

Technical Specifications

Material
Alloy Structural Steel Tube
Finish
Powder Coat Paint
Color
Black
WLL
430 lb / 195 Kg
Design Factor
7:1
Pack Count
1/carton
