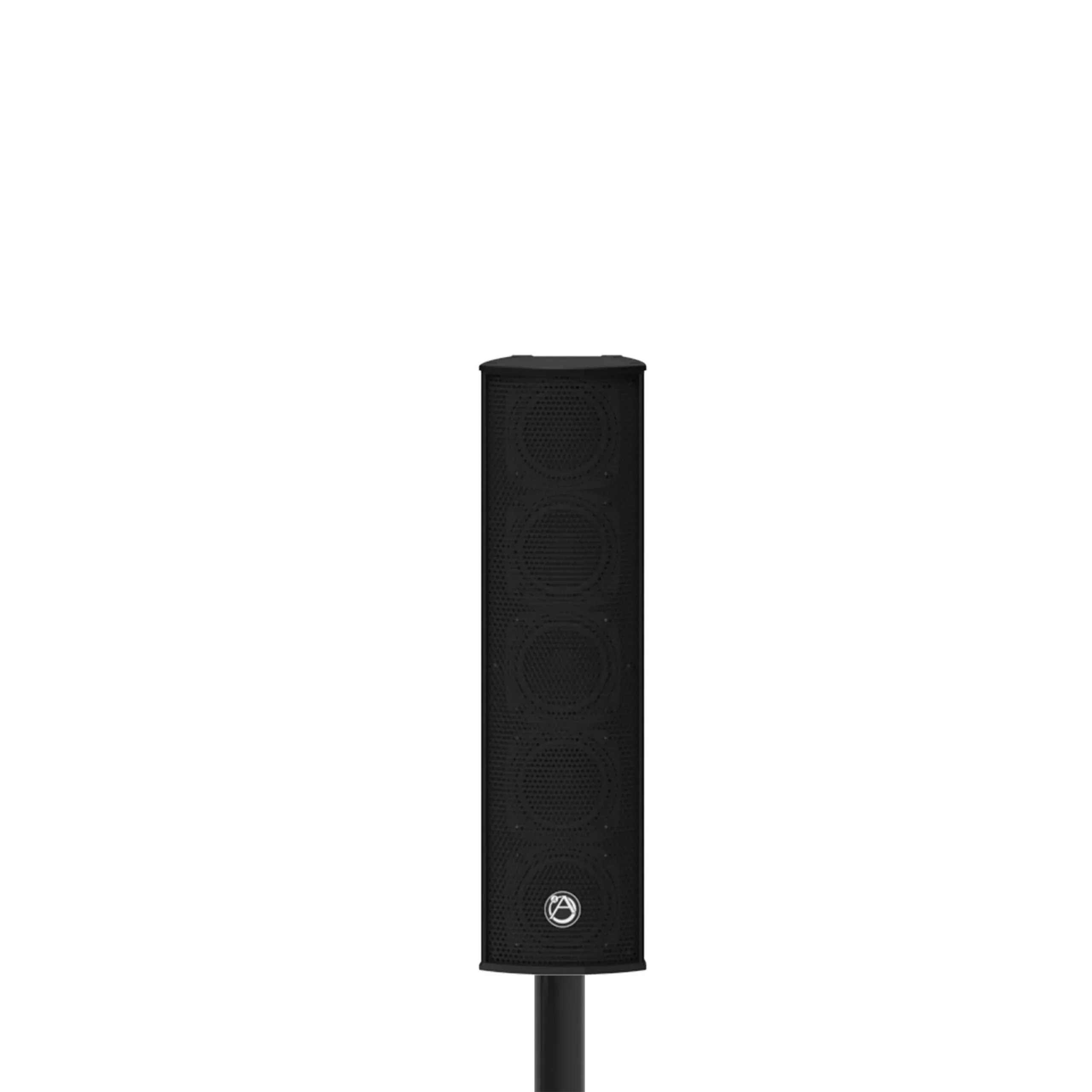

Atlas Sound ALA5T-B Full Range Line Array 5 Speaker System, Black
Theultra-compact ALA5T-B column line array speaker delivers maximum performance ina minimum footprint and excels in applications that require excellent speechintelligibility. The ALA5T-B’s transducer configuration combines five tightpacked 3″ full range drivers and two 3/4″ high frequency tweeters inan extruded aluminum housing to offer both durability and optimum soundreproduction. The lightweight and easy to install enclosure has contemporaryaesthetics that are a compliment to any environment. The back of the enclosureincorporates vertical channels that accept the included wall mount allowing theinstaller to slide the mount to the location that provides the desired verticaltilt. An optional pole mount bracket enables the array to be used in portableapplications coupled with our A-Line subwoofer.
Key Features
- 70.7V or 8Operation
- MountingSystem Included
- FiveProprietary 3″ Full Range Drivers
- TwoHigh-Frequency Tweeters
- 45 VerticalCoverage
- 135Horizontal Coverage
- Barrier Stripand NL-4 Terminals
- LightweightAluminum Housing
TechnicalSpecifications
8 RMS POWER
125 Watts
70.7V POWER TAPS
7.5, 15, 30,& 60 Watts
DISPERSION
135 H x 45V
SENSITIVITY
92dB 1W/1m
FREQUENCY RESPONSE
125Hz -20kHz
HEIGHT
16.61″(422mm)
DEPTH
5.43″(137.9mm)
WIDTH
4.61″(117mm)
