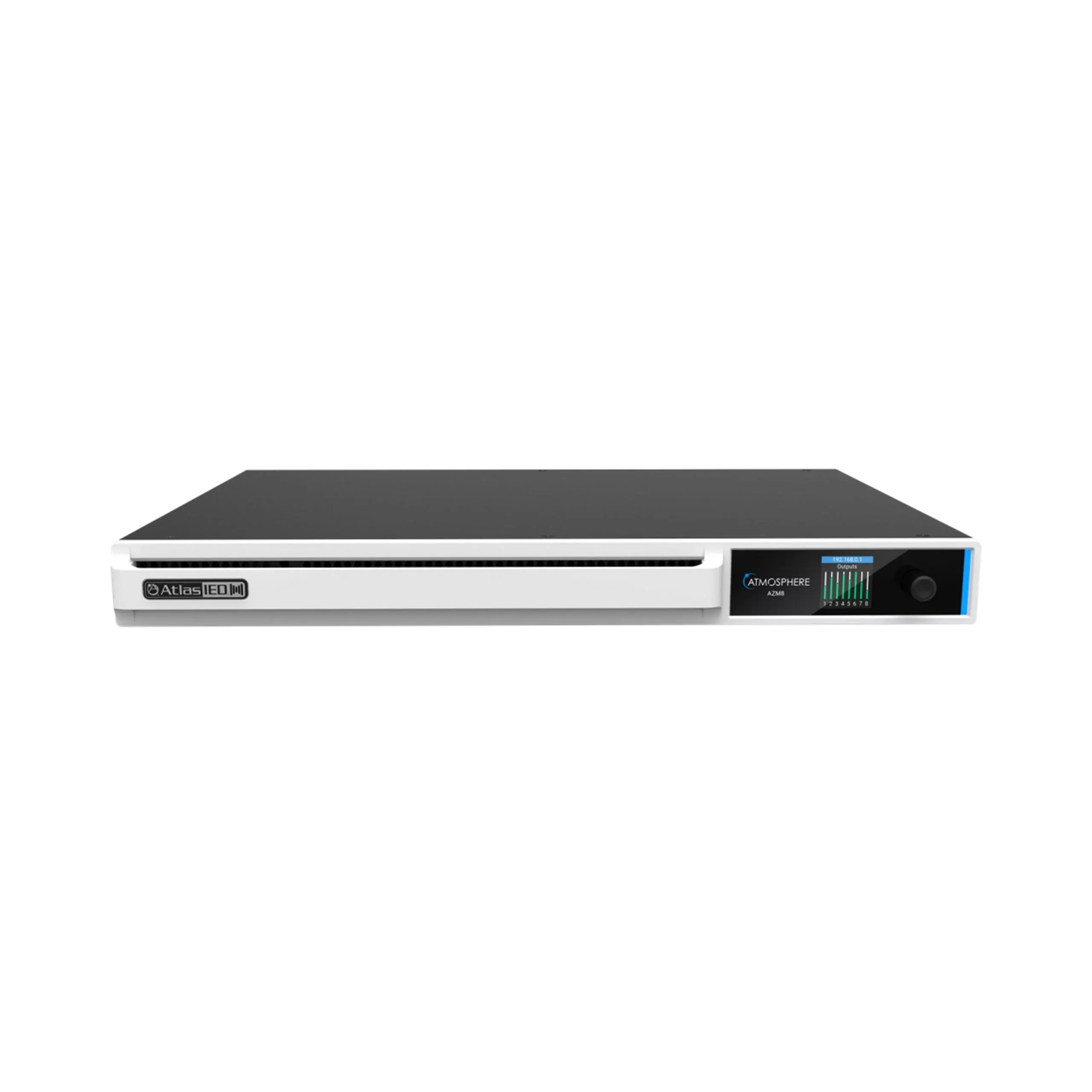

AtlasIED AZM8 Atmosphere 8-Zone Audio Processor
The Atmosphere AZM8 is an 8-zone audio processor and the heart of an Atmosphere audio control system. Powerful DSP combined with innovative algorithms offer custom solutions for a wide variety of spaces. A built-in message player, virtual wall controllers, learning ambient noise sensing, Tilter Filter, auto-gain, GPIO, bell scheduler, room combine, and many more features, make the AZM a processing powerhouse. The AZM8 is compatible with all six of the Atmosphere accessories for control, remote audio input, and ambient noise sensing. Up to 16 of these plug-and-play Accessories can be connected across 4 accessory ports on the AZM8, with each port designed to work reliably up to 1000ft. Programming is simple through a modern on-board web interface, optimized around common use-cases. Built around Progressive Web App technology, the control interface is device agnostic, responsive, and meticulously designed for an ideal user experience without sacrificing design freedom. In addition to Ethernet, built-in Wi-Fi allows for tablets and other controlling devices to connect directly to the AZM8.
Key Features
- 2 accessory ports that support up to 8 plug and play accessories each (maximum 16 per AZM8)
- App-less virtual wall controller access via QR code or distributed URL
- Bell Scheduler
- Integrated message player
- Room combine and groups
- Mono, stereo, and subwoofer support
- Auto noise compensation available for all zones
- On board WIFI to use as an access point or connect to existing Wi-Fi network
- Large library of AtlasIED speaker presets
- Accessory self-heal
- High Priority GPI input for integration with alarm system
- Wide selection of audio DSP objects
Technical Specifications
Dimensions (with Rack Ears) – Unit
W 19” x H 1.75” x D 11.7” (483mm x 45mm x 297mm)
Dimensions – Shipping
W 22” x H 4.75” x D 14” (559mm x 121mm x 356mm)
Weight – Unit
8.330 lbs (3.778kg)
Weight – Shipping
10.67 lbs (4.8kg)
