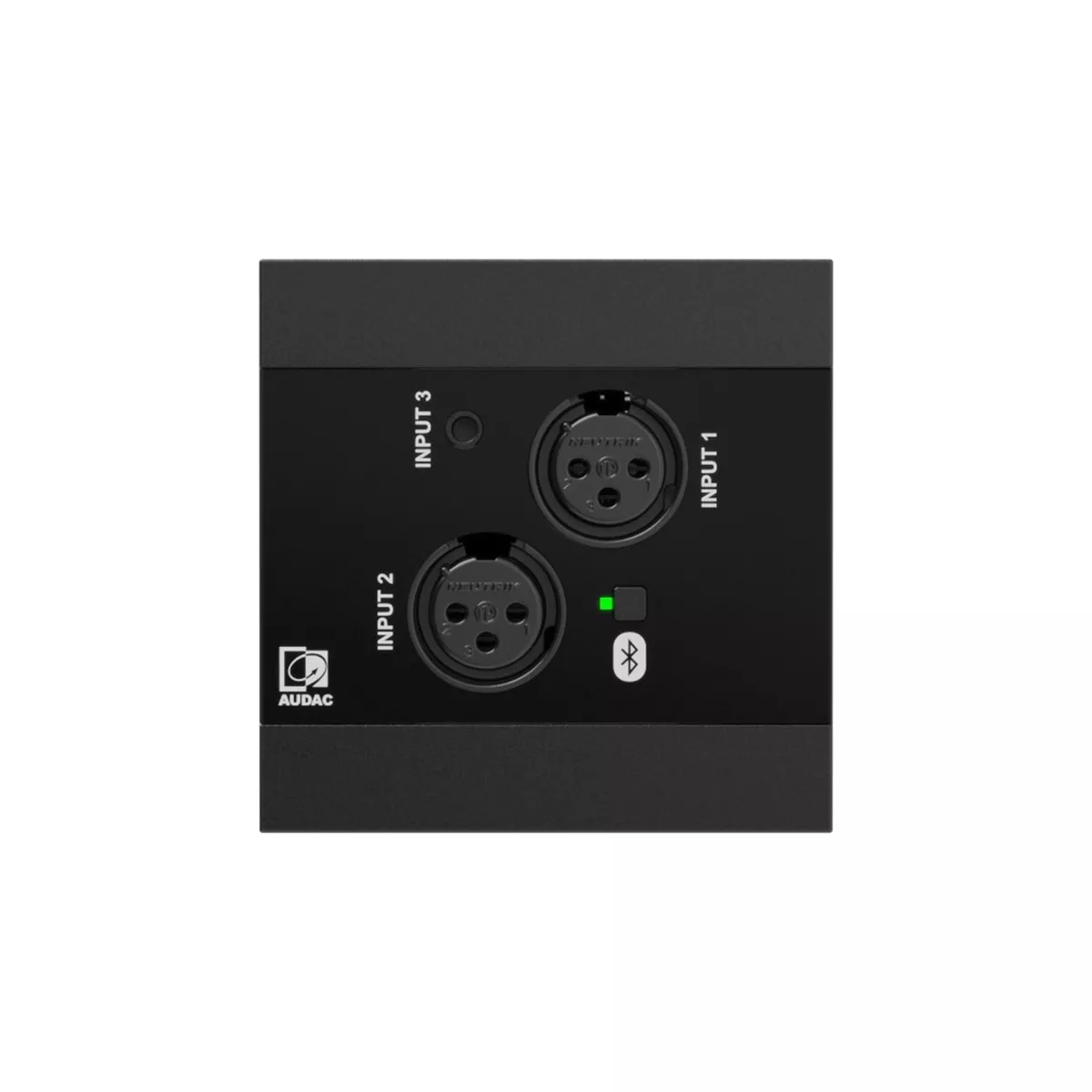

Audac NWP320 – Dante Enabled PoE Network Input Panel – Black

Original price was: $116.00.Current price is: $72.38.

Sale!
SKU: YW94393033221 Category:
Share

AUDAC NWP320Dante/AES67 Network Input Wall Panel (PoE, XLR + Jack + Bluetooth)

The NWP320 is a versatile Dante/AES67 network wall input panel designed for professional AV installations requiring both fixed and flexible local audio connectivity. It combines dual XLR inputs, a 3.5 mm stereo jack, and Bluetooth 4.2 into a compact PoE-powered wall interface, enabling seamless integration of microphones and line sources into a networked audio system.

Key Features

  • 4×4 Dante/AES67 network audio interface for flexible IP-based audio distribution
  • Dual XLR mic/line inputs with +48 V phantom power support
  • 3.5 mm stereo jack input for auxiliary line-level sources
  • Integrated Bluetooth 4.2 receiver for wireless audio playback
  • Onboard DSP processing with EQ, automatic gain control, and mixing tools
  • PoE powered (IEEE 802.3af) for simple single-cable installation
  • AUDAC Touch compatible for full remote configuration and system control
  • Low-latency, high-quality audio transmission across Dante/AES67 networks
  • Elegant wall-mounted design with fingerprint-resistant glass front panel

Connectivity & Control

  • Inputs
    • 2x XLR female (mic/line selectable)
    • 1x 3.5 mm stereo jack
    • Integrated Bluetooth 4.2 receiver (pairing button + RGB LED status)
  • Network Audio
    • 4×4 Dante / AES67 over RJ45 (PoE + data)
  • DSP Functions
    • EQ processing
    • Automatic level control (ALC/AGC)
    • Gain control and mixing
    • Phantom power (+48 V) on XLR inputs

Installation & Design

  • Designed for EU standard and 1-gang US in-wall mounting systems
  • Ultra-compact 8080 mm wall panel format
  • High-quality ABS construction with glass front finish
  • Available in black (RAL9005) (and white version where applicable)
  • Ideal for solid or hollow wall installations

Specifications

  • Network audio: 4×4 Dante/AES67
  • Inputs: 2x XLR + 3.5 mm stereo jack + Bluetooth
  • Power: PoE (IEEE 802.3af)
  • DSP: EQ, AGC, mixing
  • Phantom power: +48 V DC
  • Control system: AUDAC Touch
  • Dimensions: 8080 mm
