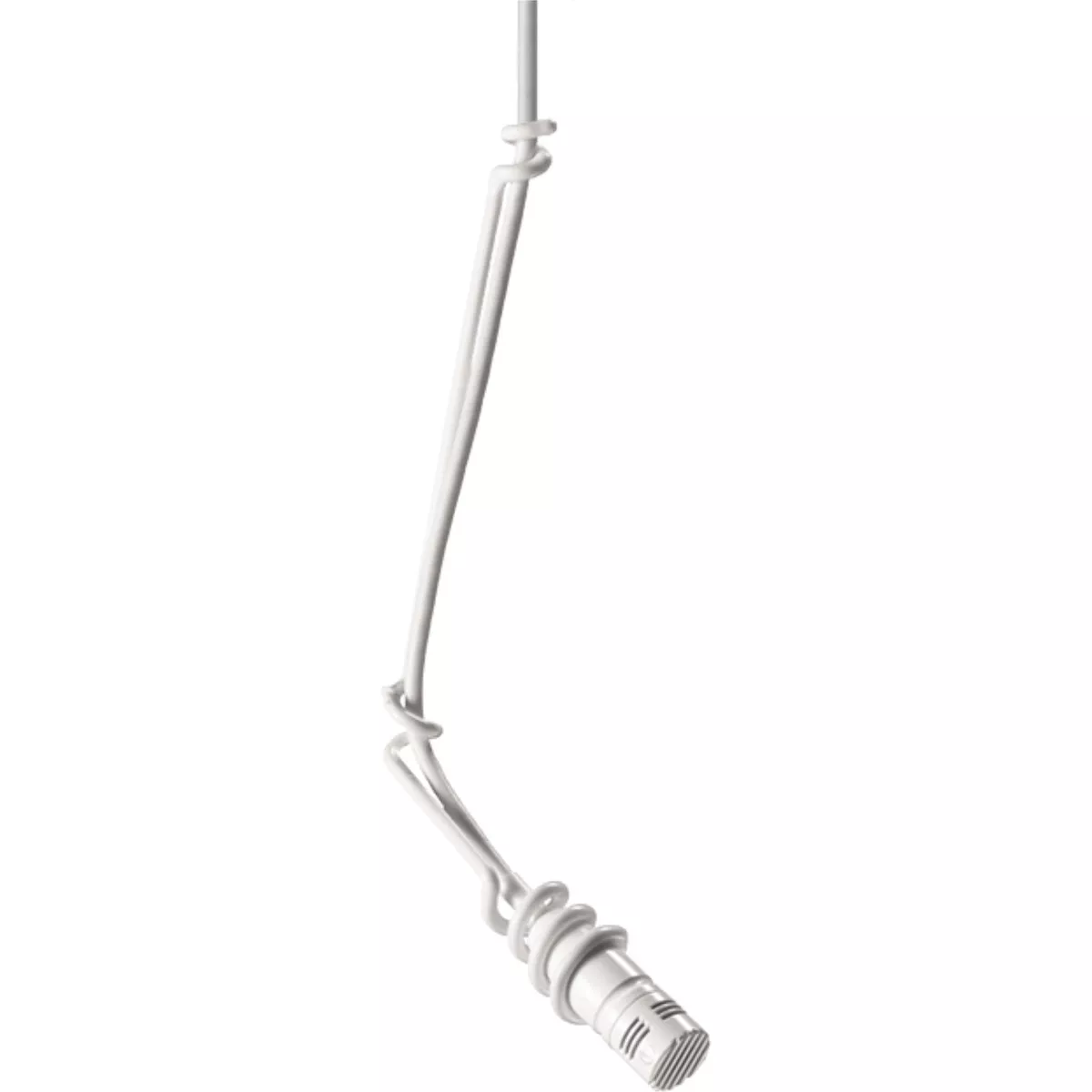

Cardioid Condenser Hanging Microphone
The white-finished version of U853R, the U853RW cardioid condenser hanging microphone is equipped with UniGuard innovations that offer unsurpassed immunity from radio frequency interference. The phantom-powered microphone accepts interchangeable elements, available in cardioid, hypercardioid, omnidirectional and UniLine line cardioid polar patterns. The U853RW also offers an 80 Hz low-cut UniSteep filter that reduces pickup of low-frequency ambient noise.
- Designed for suspension over choirs, instrumental groups and theater stages
- Superior off-axis rejection for maximum gain before feedback
- UniGuard RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
- UniSteep filter provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality
- Accepts interchangeable elements to permit angle of acceptance from 90 to 360
- Low-profile design with low-reflectance finish for minimum visibility
| ELEMENT | Fixed-charge back plate, permanently polarized condenser |
| POLAR PATTERN | Cardioid |
| FREQUENCY RESPONSE | 30-20,000 Hz |
| LOW FREQUENCY ROLL-OFF | 80 Hz, 18 dB/octave |
| OPEN CIRCUIT SENSITIVITY | 39 dB (11.2 mV) re 1V at 1 Pa |
| IMPEDANCE | 250 ohms |
| MAXIMUM INPUT SOUND LEVEL | 139 dB SPL, 1 kHz at 1% T.H.D. |
| DYNAMIC RANGE (typical) | 115 dB, 1 kHz at Max SPL |
| SIGNAL-TO-NOISE RATIO | 70 dB, 1 kHz at 1 Pa |
| PHANTOM POWER REQUIREMENTS | 11-52V DC, 2 mA typical |
| SWITCH | Flat, roll-off |
| WEIGHT (MICROPHONE) | 0.5 oz (14 g) |
| WEIGHT (POWER MODULE) | 2.9 oz (81 g) |
| DIMENSIONS (MICROPHONE) | 1.34″ (34.0 mm) long, 0.48″ (12.2 mm) diameter |
| DIMENSIONS (POWER MODULE) | 3.66″ (92.9 mm) long, 0.74″ (18.9 mm) diameter |
| OUTPUT CONNECTOR (POWER MODULE) | Integral 3-pin XLRM-type |
| CABLE | 25.0′ (7.6 m) long (permanently attached to microphone), 0.13″ (3.2 mm) diameter, 2 conductor shielded cable with TA3F-type connector |
| OPTIONAL INTERCHANGEABLE ELEMENTS | UE-H hypercardioid (100); UE-O omnidirectional (360); UE-UL UniLine (90) |
| ACCESSORIES FURNISHED | AT8153(WH) two-stage foam windscreen; AT8451(WH) steel hanger; AT8538 power module; AT8438 5/8″-27 stand adapter |
| AUDIO-TECHNICA CASE STYLE | M12 |
