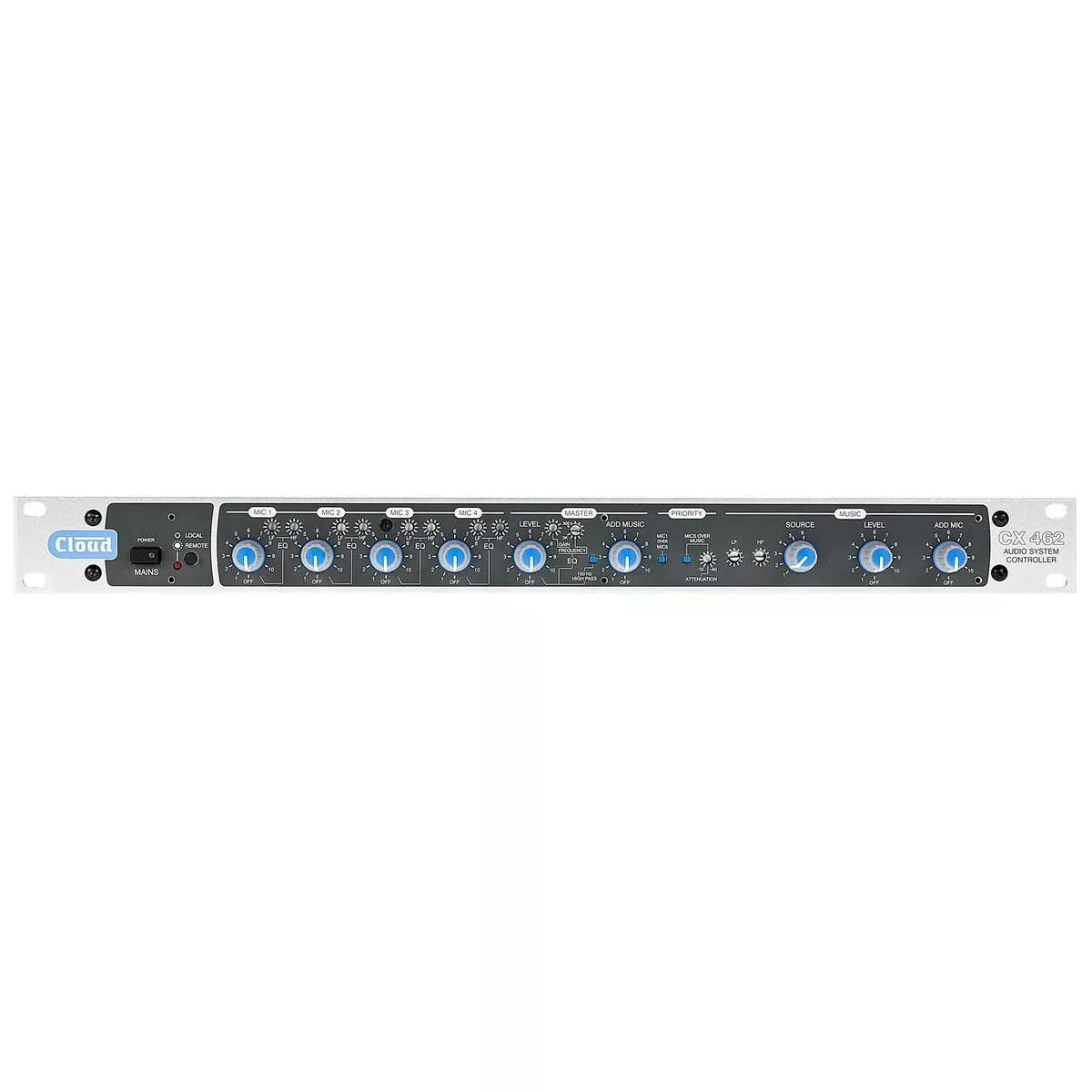

Cloud Electronics CX462 Audio System Controller
Unique best describes the CX462 Audio System Controller. We have included a set of features and configuration options that bring great diversity and make the unit the appropriate choice for applications such as AV presentations, places of worship, plus other sound systems often found in hotels, shops, bars and leisure venues.
Key Features
- Independent music and microphone sections
- 6 line inputs with preset gain controls (music section)
- Line 6 can be configured for priority (music section)
- Music level and source selection with remote control
- HF & LF EQ (music section)
- Mic signal routable assignable to music section
- 4 Mic inputs with preset gain
- Individual HF & LF controls (mic section)
- Single parametric EQ (mic section)
- 150 Hz High pass filter
- Selectable priority for Mic 1
- Optional CDI-S100 serial interface (RS232)
- Optional EQ modules
Technical Specifications
Frequency Response
20 Hz – 20 kHz, -0.5/+0 dB
Distortion
<0.03% typical, 80 kHz bandwidth
Sensitivity
100 mV (-17.8 dBu) to 1.5 V (+6 dBu)
Input Gain Control
24 dB range
Input Impedance
48 k ohm
Headroom
>20 dB
Noise
Equalization
LF: +/- 10 dB @ 50 Hz, HF: +/- 10 dB @ 10 kHz
Frequency Response
150 Hz – 20 kHz, -3/+0.5 dB (filter in)
30 Hz – 20 kHz, -3/+0.5 dB (filter out)
Distortion
<0.05%, 20 Hz – 20 kHz
Gain Range
10 dB to 60 dB
Input Impedance
>2 k ohm (balanced)
Common Mode Rejection
>70 dB typical @ 1 kHz
Headroom
>20 dB
Noise
-128 dB EIN, 22 kHz bandwidth
Equalization
LF: ±10 dB @ 150 Hz, HF: ±10 dB @ 5 kHz
Output
0 dBu (775 mV) balanced
Minimum Load Impedance
600 ohm
Maximum Output Level
+20 dBu
General
Power Input
230V/115V ±10%
Fuse Rating
T100 mA 230V, T200 mA 115V
Fuse Type
20 mm x 5 mm 250V
Dimensions (w x h x d)
482.6 mm x 44 mm (1U) x 152.5 mm
Weight
2.5 kg
