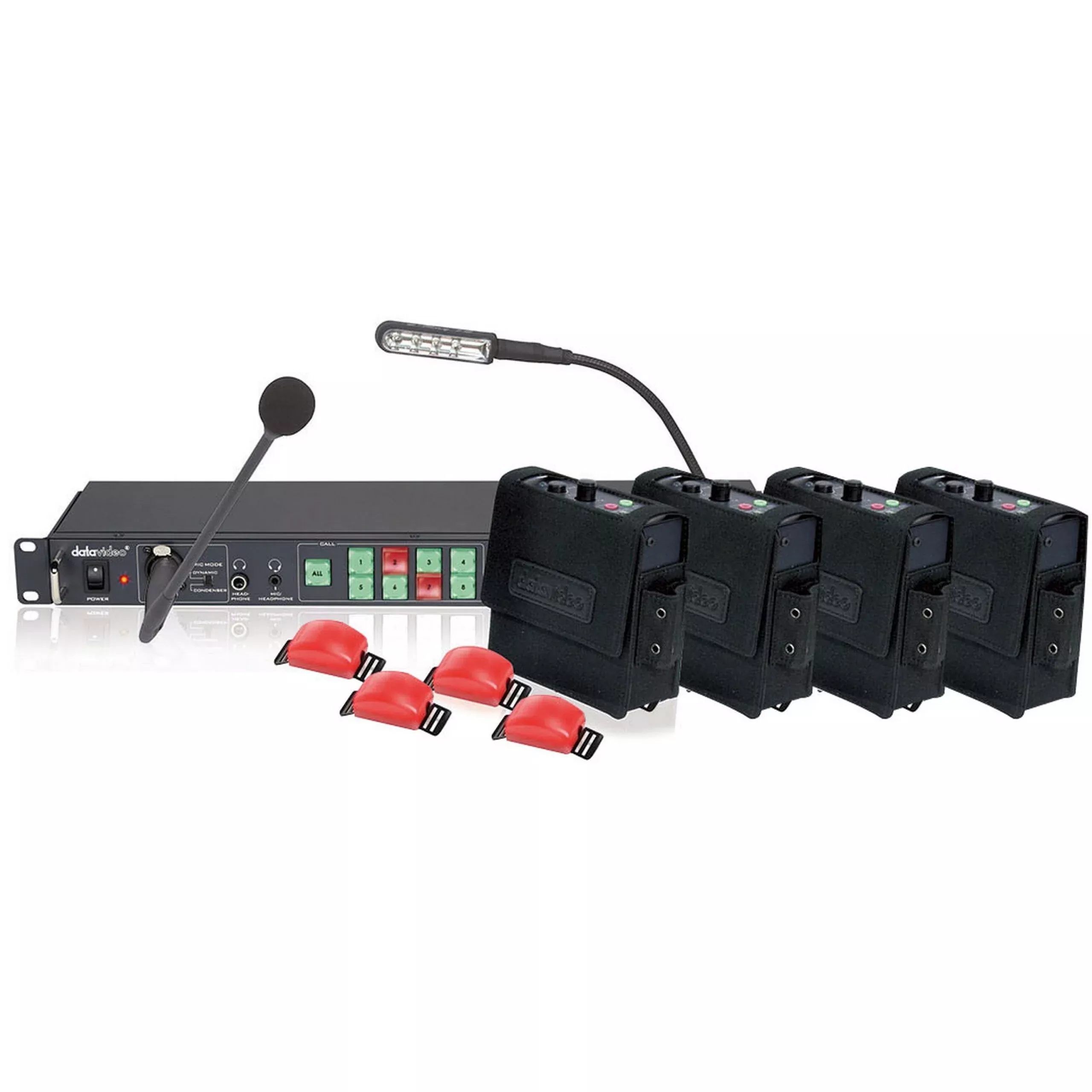

Datavideo ITC-100 Rackmount 8-Channel Intercom System
Rackmountable 8 channels Intercom System
The ITC-100provides 8-Way talkback and bi-colour tally indicators.
Communicationdistance up to 200 meters
Selectable channel talk, broadcast to allor mute
The directorcan select to talk to an individual channel or to all channels simultaneously.
TechnicalSpecifications
Power
DC 12V, 8W
Tally
2 x 15 PinDSub Sockets for Tally A and B
MIC / Headset
3.5 mmStereo Jack Socket for Headphone /Microphone combination
HeadsetImpedance 8-600 Ohms 100 mW (min)
Headphone
1/4” (6.3mm)Stereo Headphone Socket
HeadsetImpedance 8-600 Ohms 100 mW (min)
Light Socket (DC 12 V)
3 PIN XLRConnector
PIN 2: 12V
PIN 3: GND
Light PowerConsumption: 12 V / 100 mA (MAX.)
Microphone
3 PIN XLR / 1/4”(6.3mm) Jack Microphone Socket
SwitchableCondenser / Dynamic Input
MicrophoneLevel -67 dB
Frequency Response
550-3.6 kHz,<+/- 3dB
THD
<3%
S/N
> 50dB
Built-in Speaker
70mm x 30mm32 Ohm 3 Watts
Operating Range
Up to 200meters between base station and slave
Operating Temp. Range
0~40 C
Dimension (LxWxH)
482 x 127 x46 mm
Weight
1.9 kg
What’s in the Box
1 x ITC-100Base Unit
4 xITC-100SL Belt Pack
4 xITC-100SL Carry Case
4 x Cable5piin XLR to XLR
4 x 3.5mmJack to 3.5mm Jack Cable
4 x Headsetwith microphone
4 x TallyLED Indicator
1 x XLRGooseneck Microphone
1 x XLRGooseneck Light
1 x 12V 1APower Supply Unit
1 x ThankYou Card
