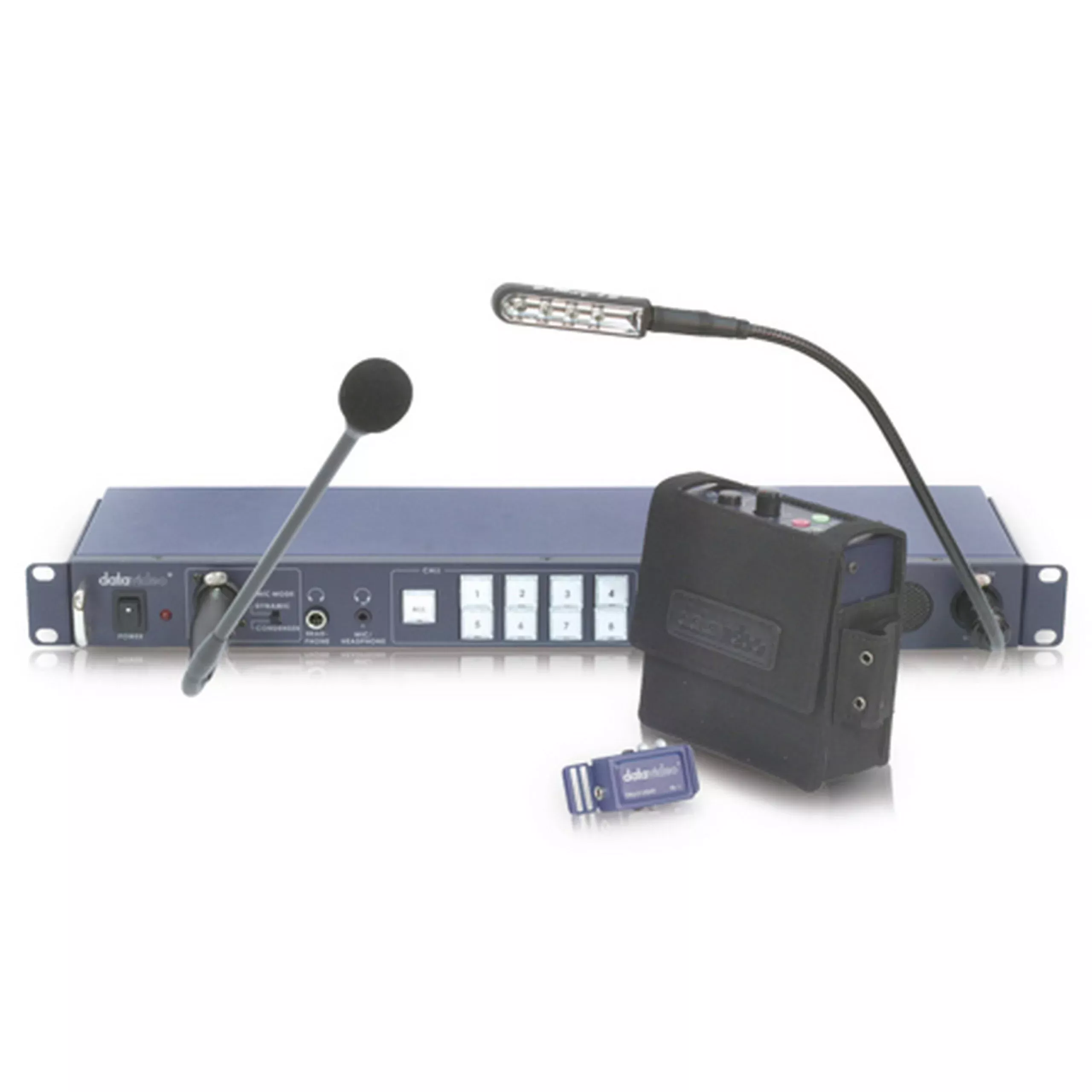

Datavideo ITC-100KF900 Intercom for 8 Remote Users

Datavideo ITC-100KF900 Intercom for 8 Remote Users

Intercom forup to 8 Remote users. Includes base station, 20m (65ft) cables, headsets, beltpacks & tally lights for 8 users.

TechnicalSpecifications

Power
DC 12V, 8W
Tally
2 x 15 PinDSub Sockets for Tally A and B
MIC / Headset
3.5 mmStereo Jack Socket for Headphone /Microphone combination
HeadsetImpedance 8-600 Ohms 100 mW (min)
Headphone
1/4” (6.3mm)Stereo Headphone Socket
HeadsetImpedance 8-600 Ohms 100 mW (min)
Light Socket (DC 12 V)
3 PIN XLRConnector
PIN 2: 12V
PIN 3: GND
Light PowerConsumption: 12 V / 100 mA (MAX.)
Microphone
3 PIN XLR / 1/4”(6.3mm) Jack Microphone Socket
SwitchableCondenser / Dynamic Input
MicrophoneLevel -67 dB
Frequency Response
550-3.6 kHz,<+/- 3dB
THD
<3%
S/N
> 50dB
Built-in Speaker
70mm x 30mm32 Ohm 3 Watts
Operating Range
Up to 200meters between base station and slave
Operating Temp. Range
0~40 C
Dimension (LxWxH)
482 x 127 x46 mm
Weight
1.9 kg
