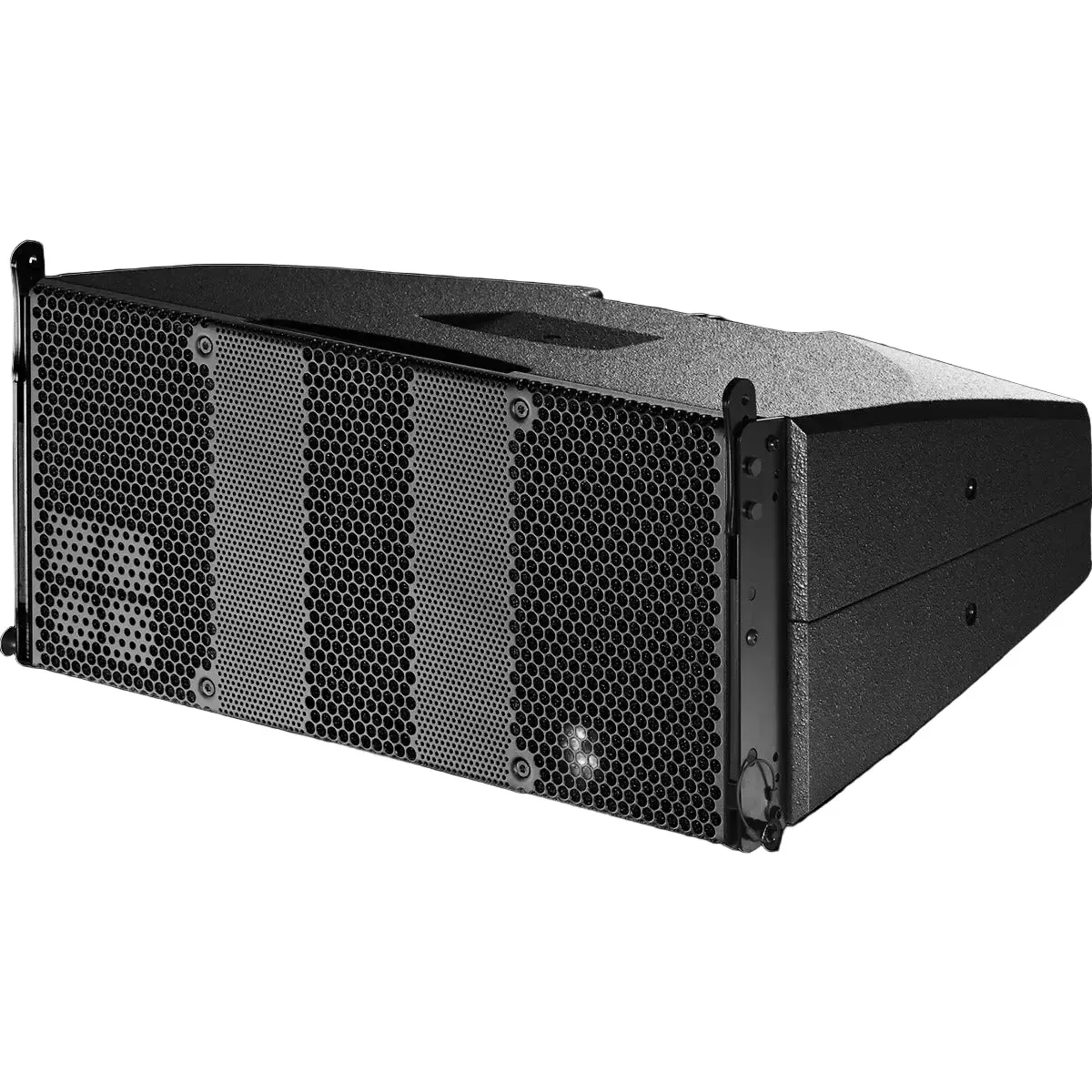

The T10 is a passive 2-way loudspeaker housing two 6.5″ drivers positioned in a dipolar arrangement and a 1.4″ HF compression driver and a passive crossover network. The T10 can be used both as a line array and as a high directivity point source loudspeaker. The HF driver is fitted to a unique waveguide horn producing vertical line source directivity with a 90° horizontal pattern that is maintained down to approximately 600 Hz. An acoustic lens placed in front of the horn widens horizontal dispersion to 105°, rotation of the horn by 90° relative to this produces an accurate point source dispersion, transforming a vertically oriented T10 into a stand-alone full range loudspeaker with 90° horizontal and 35° vertical directivity pattern. Read more
Features
- Dual Function Design: Functions as both line array and point source.
- Vertical or Horizontal Use: Adapts instantly with a rotatable horn.
- Passive Crossover: Operates using a single amplifier channel.
- High Performance Drivers: Uses 6.5″ LF and 1.2″ HF compression drivers.
- ArrayProcessing Ready: Compatible with d&b advanced optimization software.
