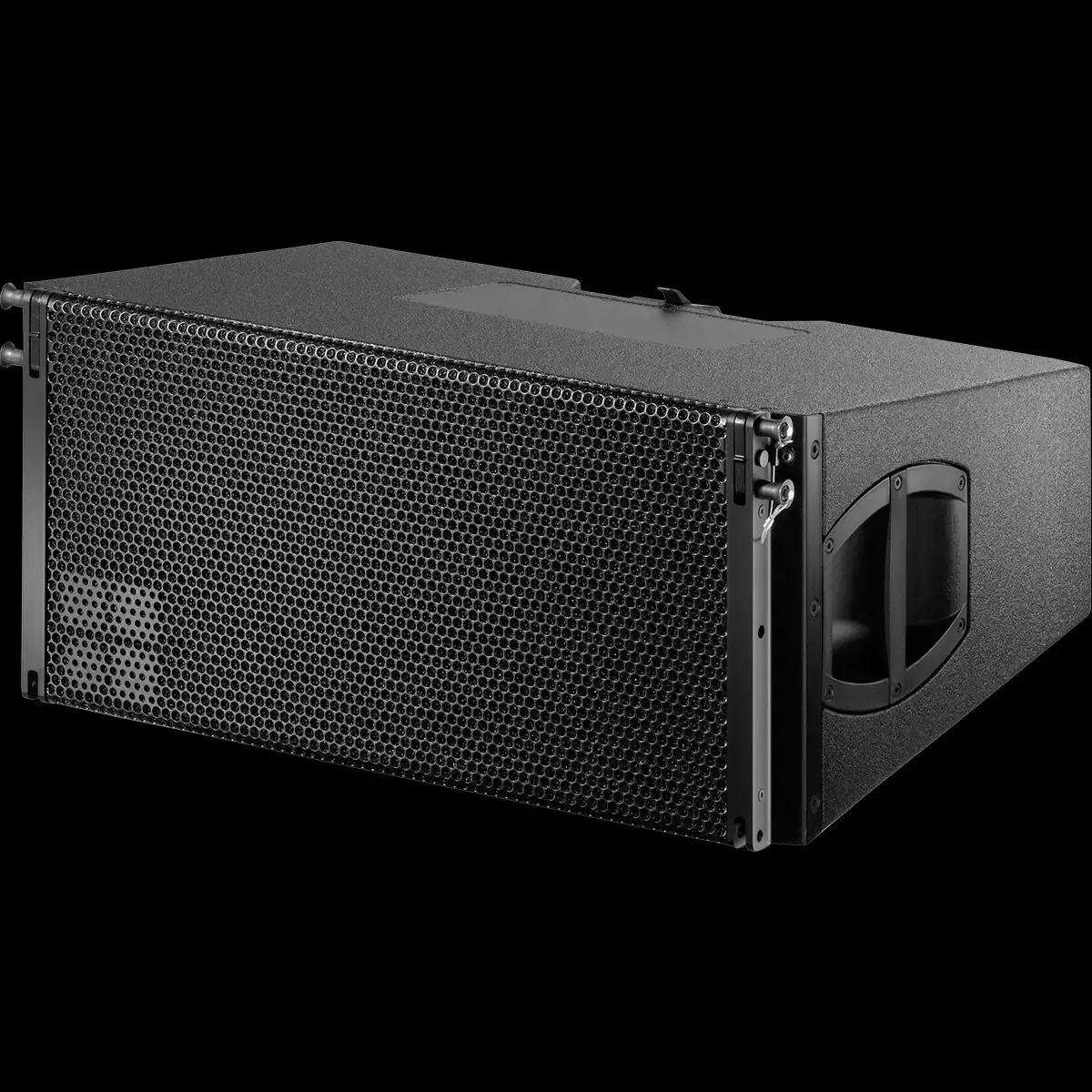

D&b Audiotechnik V12 3-way Passive Line Array Loudspeaker

The V12 is a 3-way passive design housing 2 x 10″ LF drivers, one hornloaded 8″ MF driver and two 1.4″ exit HF compression drivers with 2.5″ voicecoils mounted to a dedicated waveshaping device. The symmetrical dipolar arrangement of the neodymium LF drivers around the centrally mounted coaxial MF and HF components allows a smooth overlap of the adjacent frequency bands in the crossover design. This results in an exceptional 120° horizontal constant directivity dispersion control nominally being maintained down to 250 Hz. The mechanical and acoustical design enables flown vertical arrays of up to twenty four loudspeakers. It can be used in columns of purely V12 loudspeakers or combined with V8s and / or with V-SUBs. Read more

Features

• 120° horizontal constant directivity: Provides wide, consistent coverage across venues.
• 3-way passive design: Achieves smooth frequency response with fewer amplifiers.
• High maximum SPL: Delivers powerful, clear sound (up to 142 dB).
• Comprehensive driver configuration: Features dual 10-inch LF drivers.
• Symmetrical dipolar driver arrangement: Ensures consistent, controlled audio dispersion.
• Robust, weather-protected cabinet: Built from marine plywood for durability.
