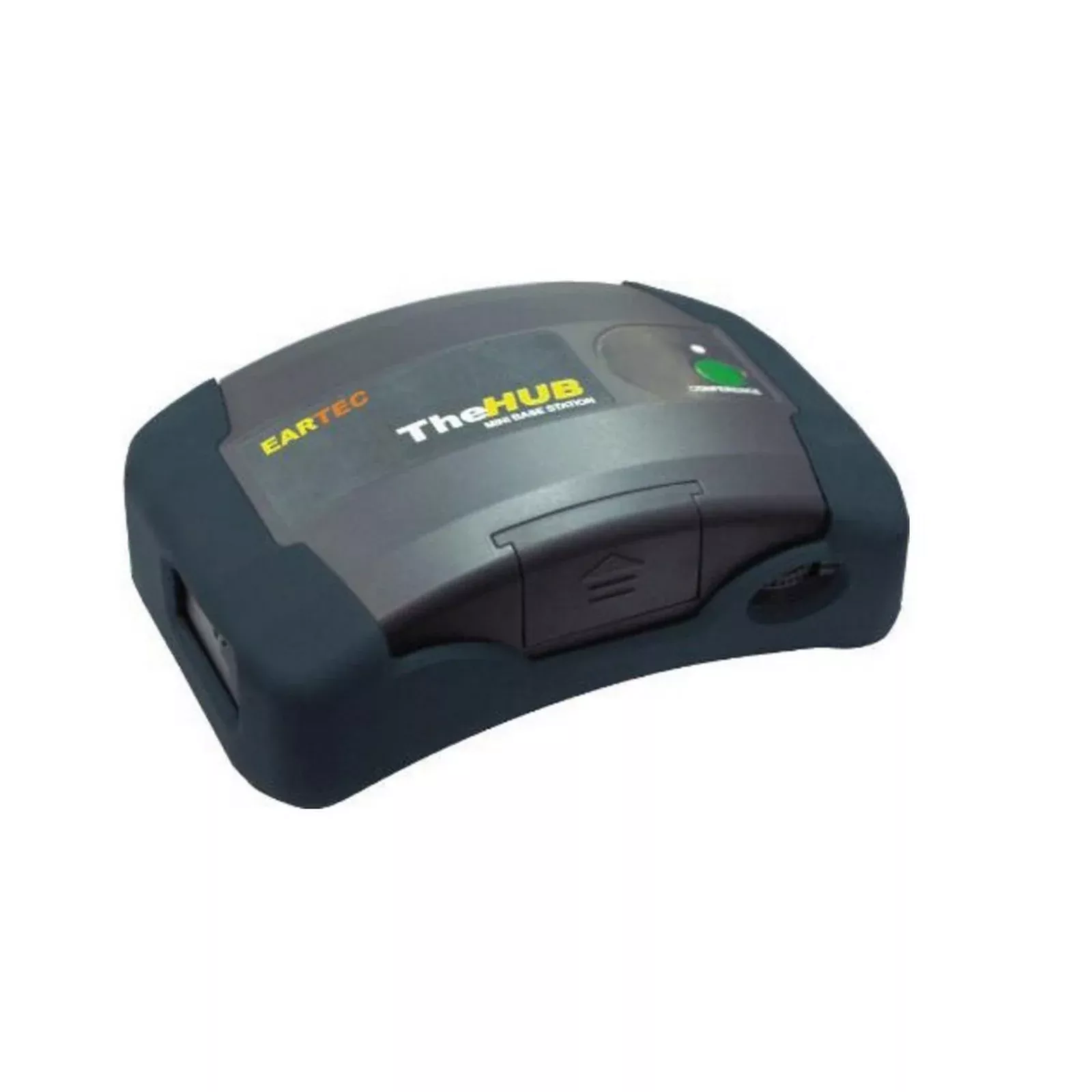

Eartec HUB HUB Mini Base Station for UltraLITE Headset
The HUB is a revolutionary full duplex, mini base station that weighsonly 9 oz. and can either be placed strategically “on location” or belt worn.When clipped comfortabely to the waist it moves seamlessly with your groupallowing users to remain in constant full duplex voice contact.
The HUB features two channels, utilizes rechargeable Lithium batteries,and operates in the license free DECT band. It connects up to six UltraLITEwireless headsets in full duplex mode within a 400 yard range. The dual pin jackallows addition of an EARTEC wired headset to increase the talk net to sevenusers.
Key Features
- Full duplex for up to 7
- 1/4 mile range in all directions
- 2 channels of communication
Technical Specifications
Standard: DECT 6.0 (Digital Enhanced Cordless Telecommunications)
Frequency: 1920 – 1930MHz (USA)
Euro Frequency: 1880 – 1900MHz (EURO)
Weight: 4 oz
Connector: 2.5mm 3.5mm plug-in
Dimensions: 5.5″w x 1.5″d x 3.75″h
Channel Bandwidth: 1.728 GHz
Modulation Type: GFSK
Transmission Speed: 1.152 Mbps (Baud Rate)
Duplexing: Time Division Duplex (TDD)
Speech Encoding: ADPCM / 32bIt’s
RF Accessing: Time Division Multiple Access (TDMA)
Range: 400m in open space
Headset Power Supply: Rechargeable Lithium 3.7 V/800 mAh 3.0 Wh
Charger Power Supply: AC/ adapter: INPUT 110-40Vac OUTPUT 5.0V – 11000mA
Charge Time: 3 hours
Operation Time: 4 hours
Normal Condition of Use: 0 C to 10 C
Storage Temperature: -10 C to 60 C
