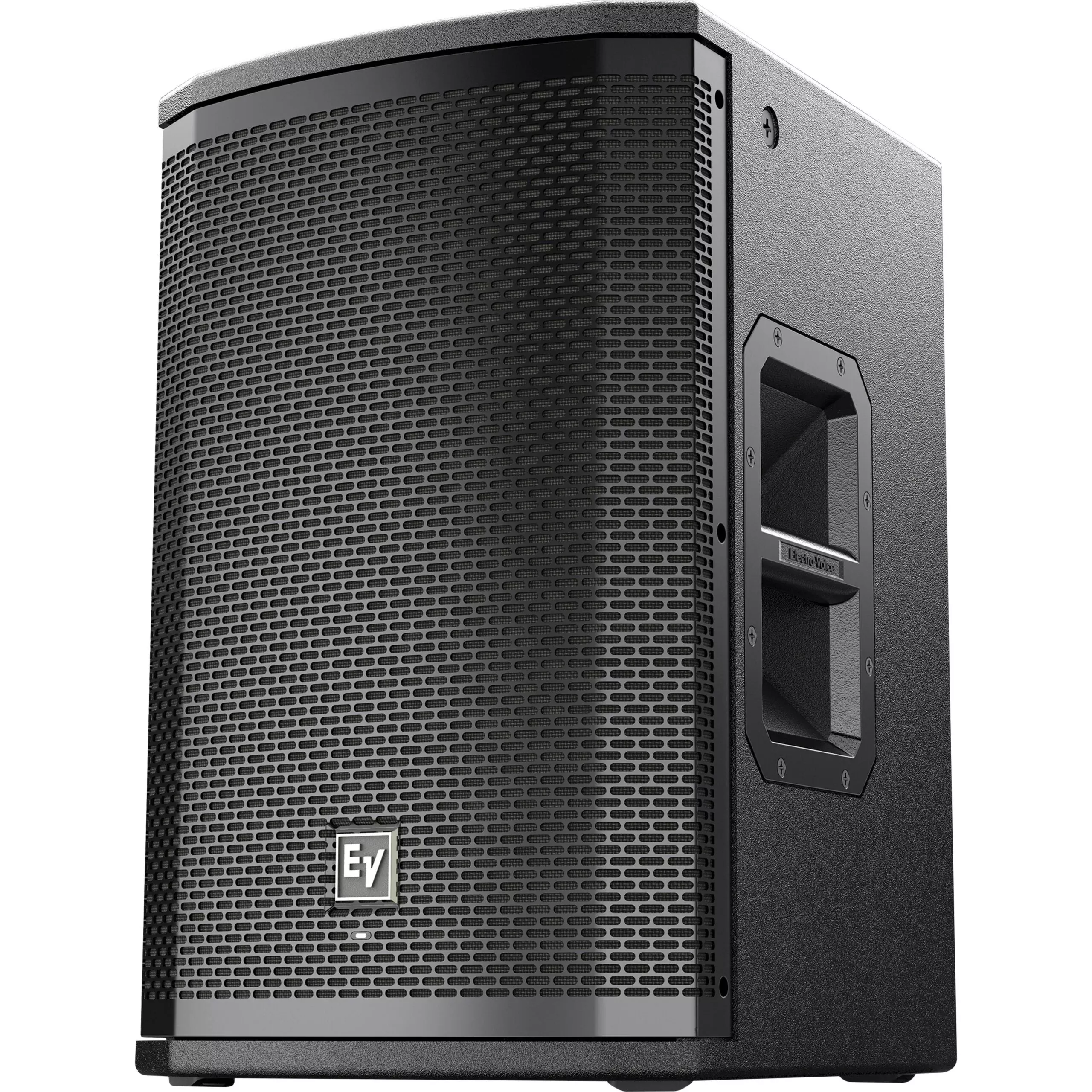

Electro-Voice ETX-10P 10-Inch Powered Loudspeaker

Electro-Voice ETX-10P-US 10-Inch Powered Loudspeaker

10″ Powered Loudspeaker

Key Features

• 10-inch LF SMX woofer
• 1.25-inch HF titanium compression driver
• 2000 W Class-D power amplifier with integrated FIR-Drive DSP
• 134 dB peak SPL

Technical Specifications

Frequency Response (-3 dB)
85 Hz – 20 kHz
Frequency Range (-10 dB)
65 Hz – 20 kHz
Maximum SPL
134 dB peak
Coverage (H x V)
90° x 60°
Power Rating
2000 W
LF Transducer
SMX2100 254 mm (10 in)
HF Transducer
DH3-B 1.25-in titanium compression driver
Crossover Frequency
1700 Hz
Connectors
(2) XLR/TRS combo jack and (1) XLR link output
Enclosure
18 mm, 13-ply birch plywood with EVCoat
Grille
16AWG steel with powdercoat
Suspension
(8) M10 suspension points
Dimensions (H x W x D)
526 mm x 330 mm x 365 mm (21 in x 13 in x 14 in)
Net Weight
20.3 kg (44.8 lb)
Shipping Weight
22.9 kg (50.5 lb)
Power Consumption
100 – 240 V~, 50 – 60 Hz, 1.6 – 0.8 A
