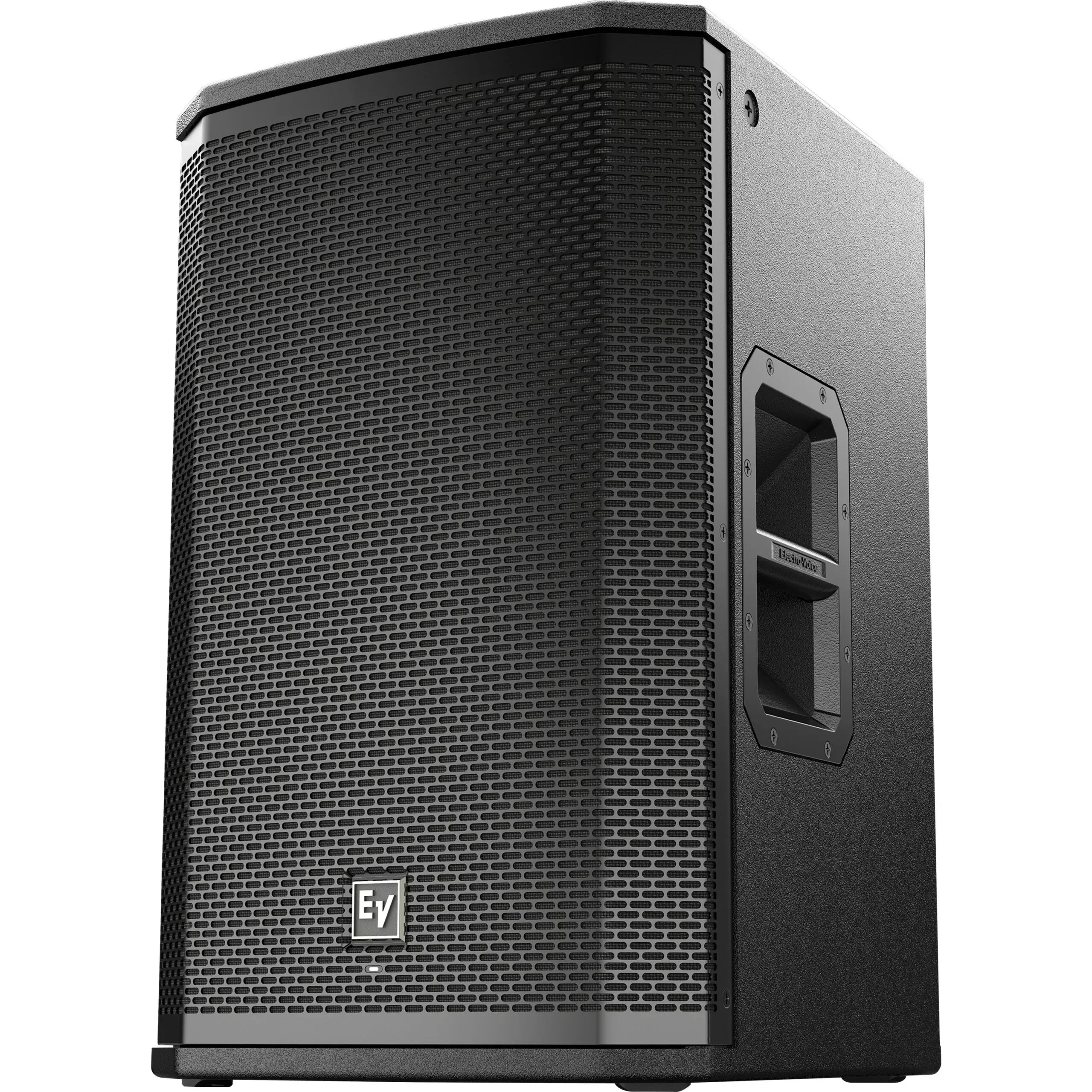

Electro-Voice ETX-12P-US 12-Inch Powered Loudspeaker
12″ Powered Loudspeaker
Key Features
- 12-inch LF SMX woofer
- 1.25-inch HF titanium compression driver
- 2000 W Class-D power amplifier with integrated FIR-Drive DSP
- 135 dB peak SPL
Technical Specifications
Frequency Response (-3 dB)
55 Hz – 20 kHz
Frequency Range (-10 dB)
43 Hz – 20 kHz
Maximum SPL
135 dB peak
Coverage (H x V)
90° x 60°
Power Rating
2000 W
LF Transducer
SMX2120 300 mm (12 in)
HF Transducer
DH3-B 1.25-in titanium compression driver
Crossover Frequency
1600 Hz
Connectors
(2) XLR/TRS combo jack and (1) XLR link output
Enclosure
18 mm, 13-ply birch plywood with EVCoat
Grille
16AWG steel with powdercoat
Suspension
(8) M10 suspension points
Dimensions (H x W x D)
613 mm x 381 mm x 400 mm (24 in x 15 in x 16 in)
Net Weight
23.6 kg (52.0 lb)
Shipping Weight
26.8 kg (59.1 lb)
Power Consumption
100 – 240 V~, 50 – 60 Hz, 1.6 – 0.8 A
