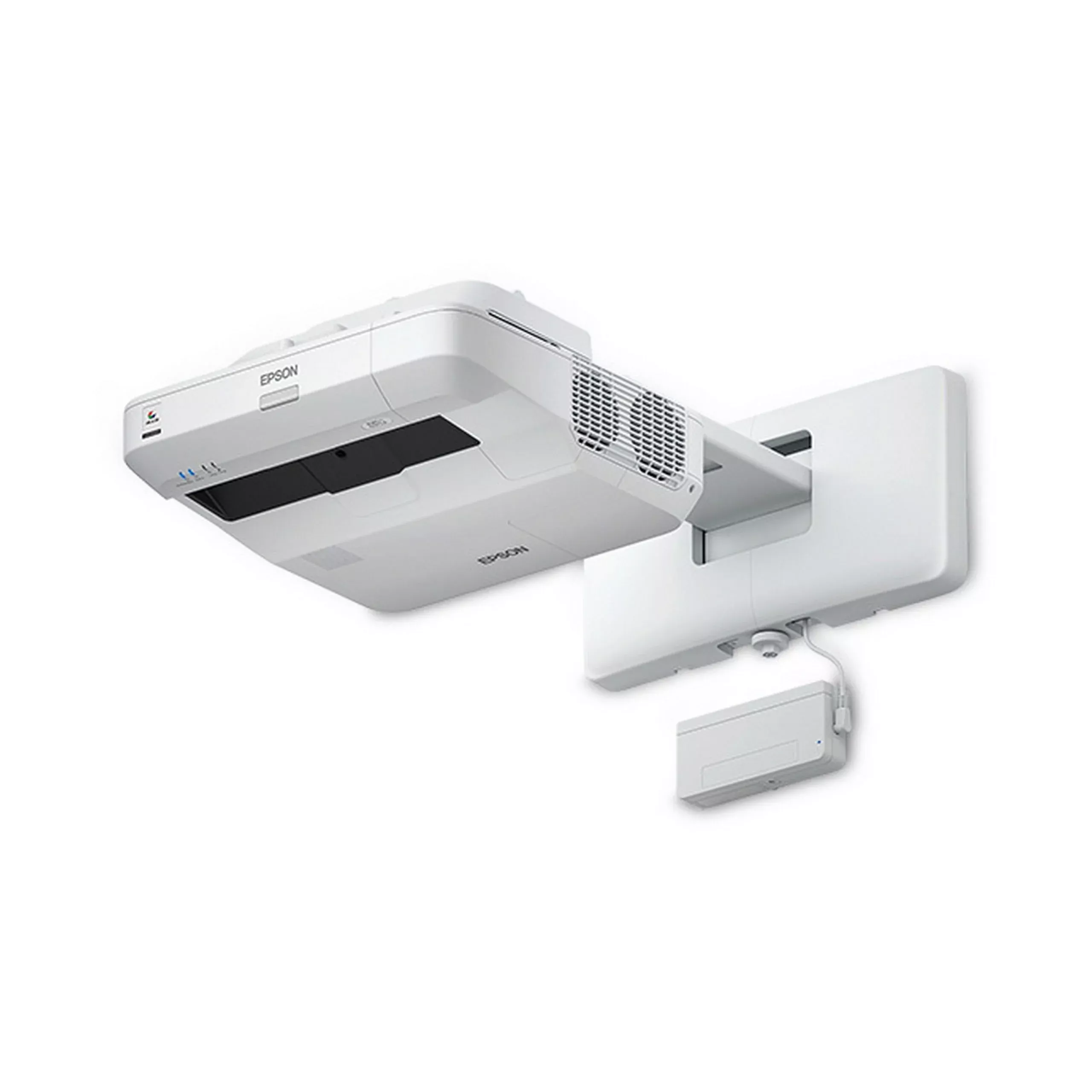

Epson BrightLink 697Ui Wireless Full HD 3LCD Ultra Short-Throw Interactive Display Projector

Epson BrightLink 697Ui Wireless Full HD 3LCD Ultra Short-Throw Interactive Display Projector

The ultimateacademic collaboration tool, the BrightLink 697Ui touch-enabled, wireless ultrashort-throw interactive display delivers supersize Full HD WUXGA images up to100” – from as close as 10” away. Featuring an amazingly bright 4,400 lumens ofcolor and white brightness, the 697Ui turns almost any wall or existingwhiteboard into a collaborative interactive workspace. Offering encryptedenterprise-level security, wireless support and content sharing for a varietyof devices – including Chromebooks – it’s perfect for today’s BYOD classrooms.Plus, PC-free whiteboard sharing enables remote collaboration with offsiteparticipants. It also includes a 1-year subscription and support for SMARTLearning Suite.

Key Features

• Amazinglybright display – 4,400 lumens color/white brightness
• Full HDWUXGA display up to 100” – supersize display for clear legibility andvisibility from anywhere in the room
• Pen- andtouch-based interactivity – touch interactivity allows up to six users to draw,share and collaborate at once using familiar gestures
• Encryptedenterprise-level security – for peace of mind; compatible with WPA, WPA2-PSKand WPA2-EAP security protocols
• Wirelesslyconnect up to 50 devices – simultaneously share and control content from up tofour screens at once using
• Moderator software, including Chromebook, PC, Mac,iOS and Android devices
• Easy contentsharing – share images between the big screen and wirelessly connected mobiledevices, for individualized learning
• Whiteboardsharing – remote collaboration allows others to see and write to thewhiteboard, even when they’re not in the room
• Wall-mountedcontrol panel – for easy projector control at your fingertips with access toOn/Off, Source selection and PC-free whiteboarding
• Includes1-year subscription and support for SMART Learning Suite – SMART Notebook,SMART amp, SMART lab, SMART Learning Suite Online and more
• High ColorBrightness4, and reliable performance – 3LCD, 3-chip technology

TechnicalSpecifications

Projection System
Epson 3LCD,3-chip technology
Projection Method
Front/rear/wallmount/table mount
Driving Method
EpsonPoly-silicon TFT Active Matrix
Pixel Number
2,304,000dots (1920 x 1200) x 3
Color Brightness – Color Light Output
4,400 lumens
White Brightness – White Light Output
4,400 lumens
Aspect Ratio
1610
Resolution
1920 x 1200(WUXGA)
Lamp Type
300 W UHE
Lamp Life
ECO Mode Upto10,000 hours, Normal Mode Up to 5,000 hours
Throw Ratio Range
(1610) 0.22- 0.37, (43) 0.33 – 0.44, (169) 0.27 – 0.37
Size – projected distance
(1610) 70.4”- 100”
Keystone Correction
Horizontal +/-3degrees; Vertical +/-3 degrees
USB Plug ‘n Play
For Mac MacOS 10.7/10.8/10.9/10.10/10.11/macOS 10.12.x
For WindowsWindows Vista/Windows 7/ Windows 8/Windows 10
Contrast Ratio
Up to 16,0001
Color Reproduction
Up to 1billion colors
Interactive Color Brightness – Color LightOutput
4,400 lumens
Interactive White Brightness – White LightOutput
4,400 lumens
Operating Temperature
41 deg to104 deg F (5 deg to 40 deg C)
Dimensions
18.7” x 17.6”x 5.1”
Weight
18.7 lb
Security
Kensingtonlock provision, security anchor bar, Password Protection function
Projection Lens
Manual focus
F-number
1.6
Focal Length
4.2 mm
Zoom Ratio
Digital zoom1.0 – 1.35x
What’s In The Box
BrightLink697Ui ultra short-throw interactive projector
Quick StartGuide
15′ powercable
electronicuser manual
interactivedriver for Mac and PC
Epson EasyInteractive Tools
NetworkManagement software
projectorremote control
two (2)interactive pens
pen holder
two (2) AAbatteries (for interactive pens) plus battery charger
two (2) AAbatteries (for remote)
Wall mount
SMARTLearning Suite redemption code
Soft pentips (4)
Hard pentips (2)
Touch module
Touch modulecable
Touch modulemounting bracket
Controlpanel
Mini audiocable
5m USB Cable(2)
6′ USB Cable(1)
802.11 b/g/nWireless LAN Module
