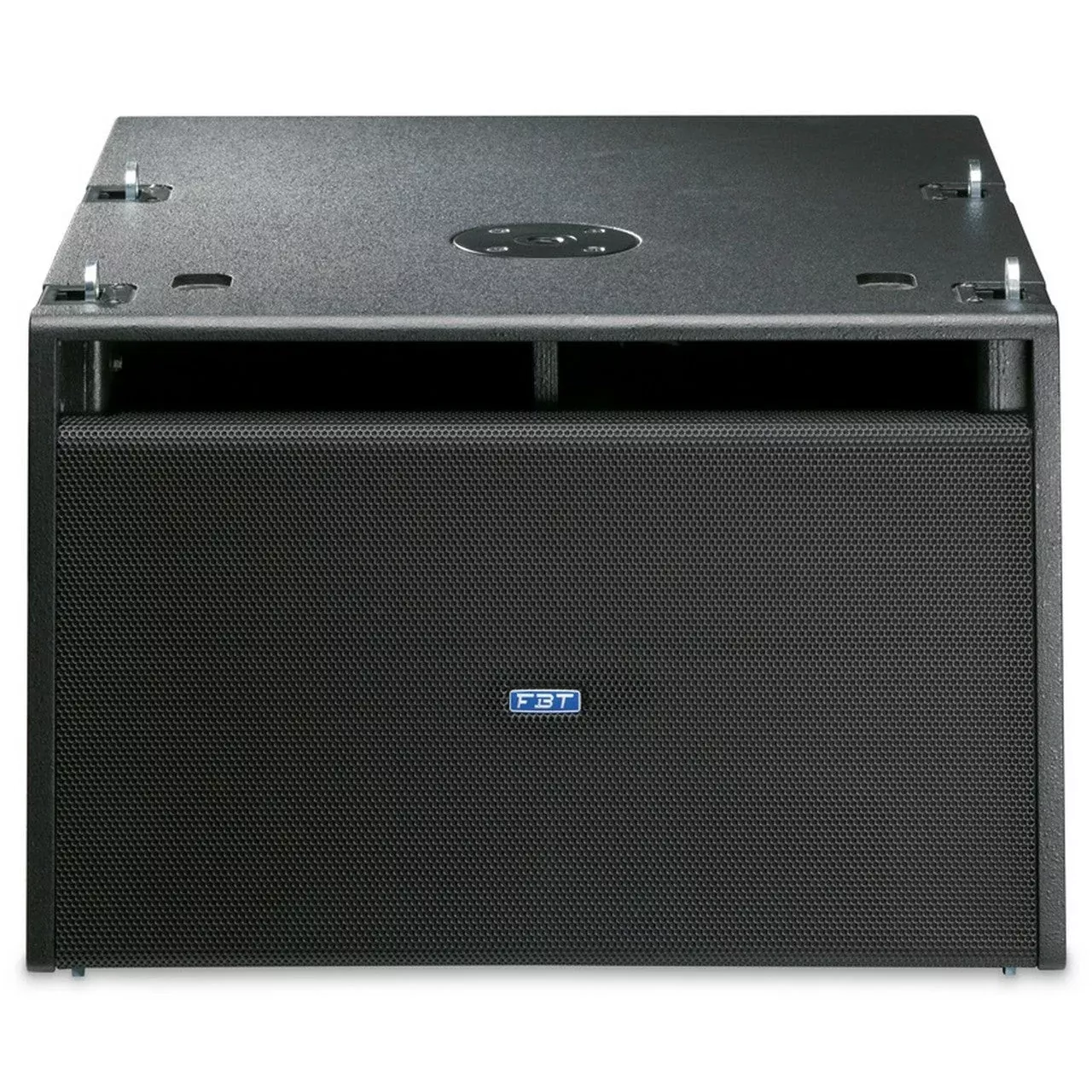

FBT MITUS 212 FSA 1200W Processed Flyable Active Subwoofer
The MIt’s 212 FSA is a new flyable active subwoofer sharing the same width and suspension hardware of the MIt’s 206 LA line array flown configurations at the top of a MIt’s 206 LA, in a separate column or ground stacked.
Key Features
- Compact vented band pass subwoofer sharing the same width and hardware suspension of the MIt’s 206LA
- 320 mm (2 x 12’’) B&C neodymium magnet high excursion subwoofers with 75 mm (3’’) voice coils
- Frequency Response from 45Hz to 120Hz
- Class D amplifier delivering 1200WRMS
- Switch mode power supply
- DSP with 8 presets, cardioid and infra configurations, delay
- Control panel with XLR input and link, volume, presets, delay, phase 0°-180°, ground-lift
- 15 mm (5/8’’) birch plywood enclosure, scratch resistant black paint
- Low frequency extension cabinet for the MIt’s 206LA line array for flying or ground stacked configurations
Technical Specifications
Code
31709
Configuration
1 way
Built-in amplifier LF/HF
1200 W RMS
Built-in amplifier peak LF/HF
2400 W
Frequency response
45Hz-120Hz -6dB
Low Frequency woofer
2×12 – 3 coil – neodymium inch
High Frequency driver
– inch
Maximum SPL cont/peak
134/138 half-space dB
Dispersion
omnidirectional HxV
Input impedance
22 Kohm
Crossover Frequency
preset dependant KHz
AC Power requirements
640 VA
Input connector
XLR with loop
Power cord
5/16.4 m/ft
Net Dimension (WxHxD)
574x420x660 – 22.6×16.5×26 mm/inch
Net Weight
36.5 – 80.5 kg/lb
Transport Dimension (WxHxD)
780x710x520 – 30.7x28x20.5 mm/inch
Transport Weight
41 / 90.4 Kg/lb
