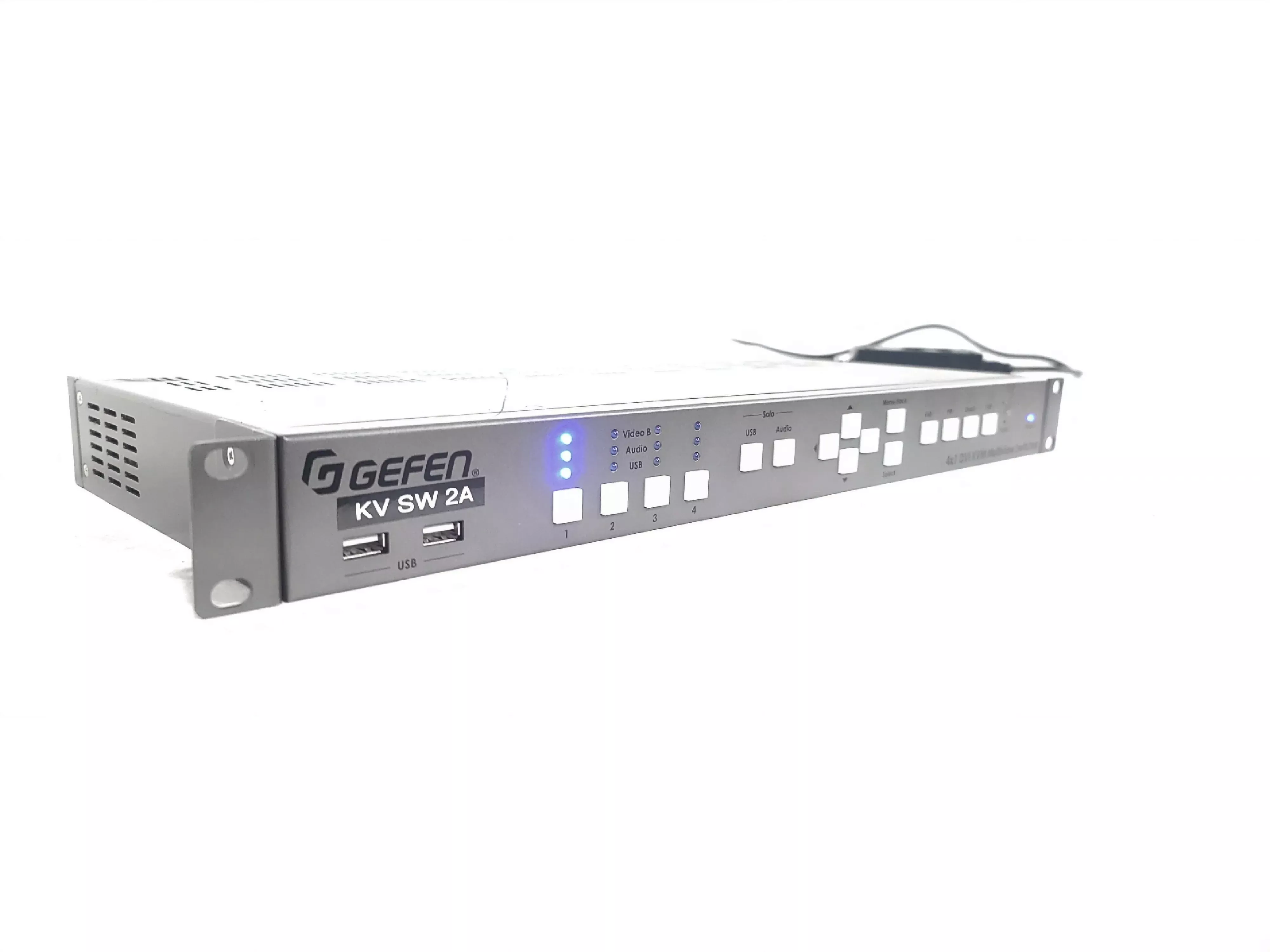

The Gefen 4×1 DVI KVM Multiview Switcher is a professional KVM (Keyboard, Video, Mouse) multiview switcher that enables a single dual-monitor workstation to control and monitor up to four computers simultaneously. It supports DVI video, USB keyboard and mouse sharing, and independent audio routing, making it ideal for broadcast studios, control rooms, security monitoring, IT administration, and command centers. The switcher provides four display modes—Full Screen, Quad View, Picture-in-Picture (PIP), and Picture-and-Picture (PAP)—allowing operators to monitor multiple systems efficiently. Supporting resolutions up to 1920 x 1200 (WUXGA) and 1080p Full HD, it features an intuitive on-screen display, front-panel controls, keyboard/mouse shortcuts, RS-232 control, and firmware updates via USB. The included 12 VDC locking power supply (PSU) ensures dependable operation. Read more
Features
- Controls up to 4 computers from one workstation.
- Four display modes: Full Screen, Quad View, PIP, and PAP.
- Supports up to 1920 x 1200 (WUXGA) and 1080p Full HD.
- HDCP 1.4 compliant.
- USB keyboard and mouse sharing.
- Independent USB and audio routing.
- Control via front panel, keyboard/mouse, and RS-232.
