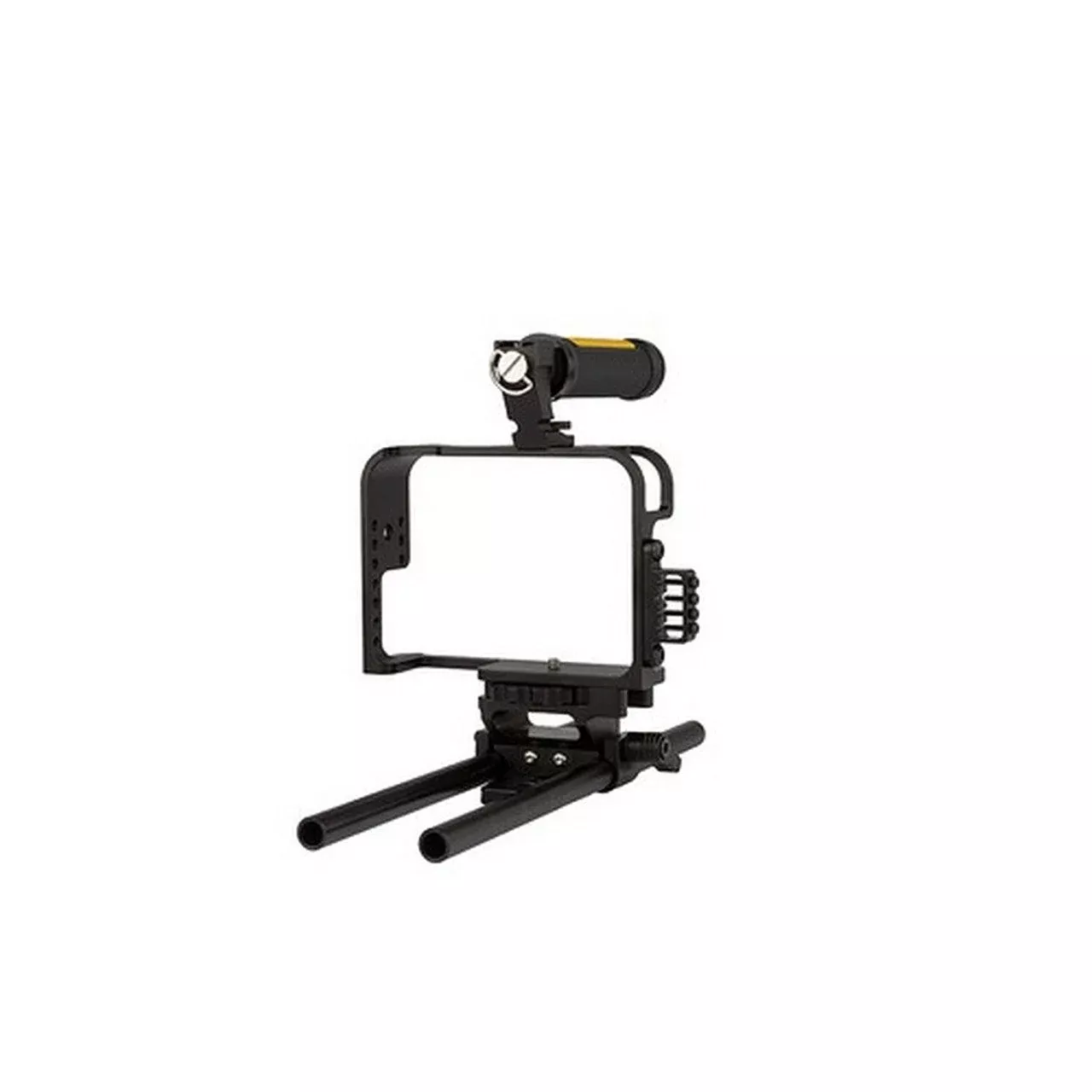

Ikan ELE-GH4-C Panasonic GH4 Camera Cage Mount

Ikan ELE-GH4-C Panasonic GH4 Camera Cage Mount

The ELE-GH4-C is a smart, ready-to-use cage solution for the Panasonic GH4. The sleek design eliminates all of your frustrations with a quick, no-tool-required assembly and easy access to all of your ports and buttons.

Key Features

• Tool-less 1/4″-20 Camera Mounting
• Form-fitted to the Panasonic GH4
• Precision Machined Aluminum Alloy Single Piece Cage
• Cable Lock System
• Reversible Top Handle with Cold Shoe Mount
• Dual 15mm Rod Clamp Baseplate
• Various 1/4″-20 and 3/8″-16 threaded holes

Technical Specifications

Shipping Dimensions:
15.5 x 8.5 x 4.1 inches
Shipping Dimensions (Metric):
393.7 x 215.9 x 104.1 mm
Shipping Weight:
3 lbs
Shipping Weight (Metric):
1.36 kg
UPC Code:
847983014132
Rig Specifications:
Full Rig Assembly:
Weight:
1.88 lb
Weight (Metric):
.852 kg
Configured w/ Includes:
Top Handle, Baseplate, 15mm Rods
Rod Compatibility:
15mm
Rod Spacing:
60mm
Rod Material:
Aluminum
Rig Material:
Aluminum / Rubber
1/4″-20 Threaded Holes:
25
3/8″-16 Threaded Holes:
1
1/4″-20 Tripod Mounts:
4
3/8″-16 Tripod Mounts:
4
Camera Compatibility:
Panasonic GH4
Cage
Dimensions:
7.1 x 6.8 x 3.9 inches
Dimensions (Metric):
180.3 x 172.7 x 99 mm
Weight:
1.88 lb
Weight (Metric):
.852 kg
Configured with / Includes:
Baseplate
Rod Compatibility:
15 mm
Rod Spacing:
60 mm
Rod Material:
Aluminum
Rig Material:
Aluminum
1/4″-20 Threaded Holes:
26
3/8″-16 Threaded Holes:
1
1/4″-20 Tripod Mounts:
4
3/8″-16 Tripod Mounts:
4
Rods
Rod Type:
Standard
Rod Diameter:
15 mm
Rod Length:
12 inches
Rod Length (Metric):
304.8 mm
Weight:
.14 lb
Weight (Metric):
.066 kg
Thread Type:
Female
Quantity:
2
Material:
Aluminum
Top Handle
Dimension:
6.1 x 2 x 1.3 inches
Dimensions (Metric):
154.9 x 50.8 x 33.02 mm
Weight:
.34 lb
Weight (Metric) :
.156 kg
Cold Shoe Mount:
1
Handle Length:
5 inches
Handle Length (Metric):
127 mm
3/8″-16 Threaded Holes:
1
Material:
Aluminum / Rubber
WHAT’S INCLUDED:
1 X GH4 Cage
1 X Top Handle
1 X Top Handle Screw
1 X ¼-20 Thread D-Ring Screw
2 X 15 Mm Rods (12-inch Length)
