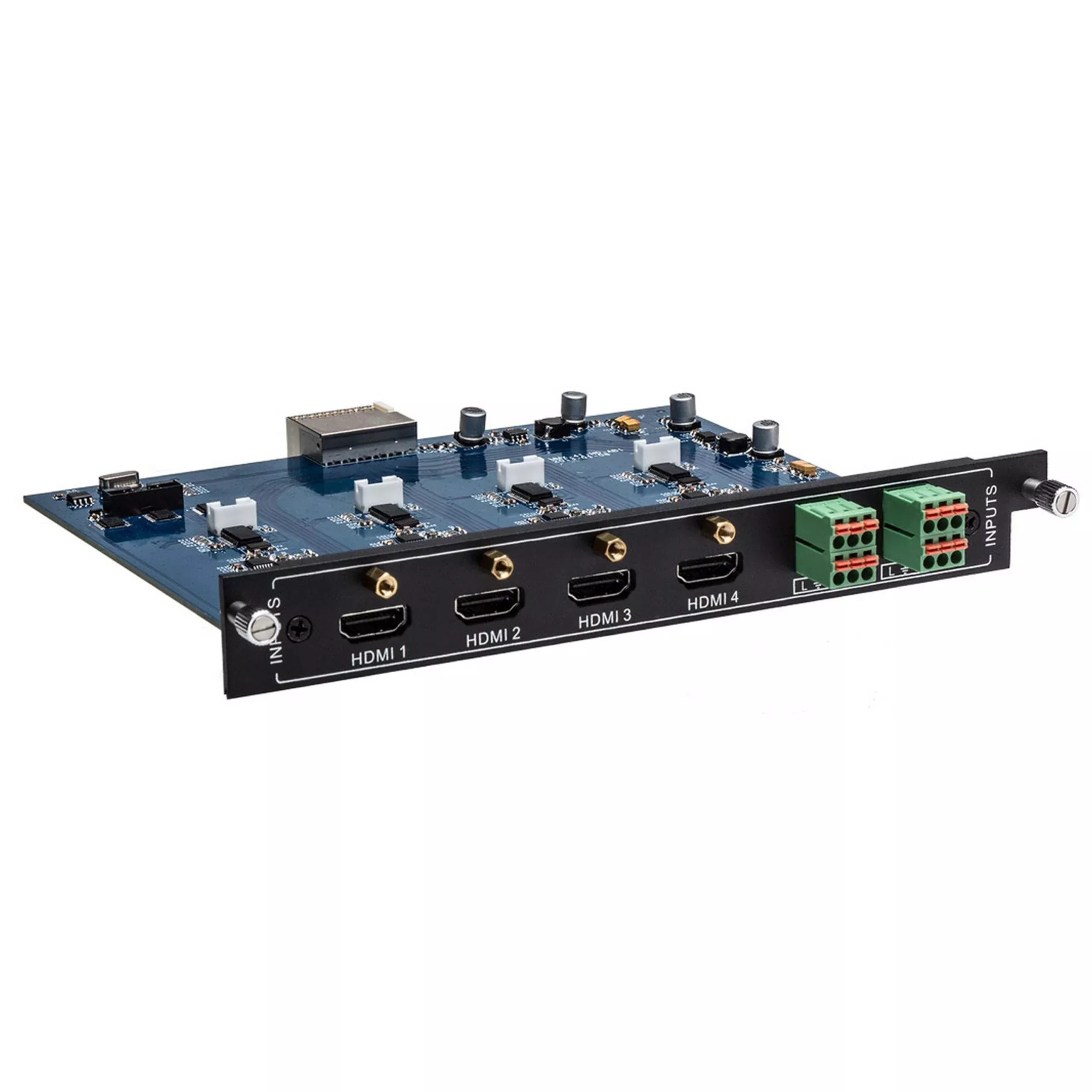

Intelix FLX-HI4A HDMI with Audio Embedding Input Card for Card-Based Matrix Switcher

Intelix FLX-HI4A HDMI with Audio Embedding Input Card for Card-Based Matrix Switcher

The FLX-HI4Ais an HDMI input card with analog audio embedding that can be used in the inputslots of any FLX matrix chassis. The HDMI inputs can accept high resolutionvideo signals, including 3D and 48-bit Deep Color at 1080p. Additionally, audiosignals from stereo up to 7.1 audio streams will pass through the matrix tosupported outputs.

The FLX-HI4Aalso includes the ability to embed an analog audio signal into the HDMI. Theexternal audio is supplied to the input card on the phoenix terminal blocks.Input audio can be switched between analog and digital (HDMI) by RS232 or IPcommand. This functionality can be changed by input, to allow each input to beconfigured individually.

The FLX-HI4Afeatures advanced HDCP handling, including the ability to turn HDCP complianceON and OFF to ensure maximum functionality with a wide range of sources.

Key Features

• HDMI inputcard for FLX-88, FLX-1616, FLX-3232
• Four HDMIinputs
• Stereoanalog audio embedding on each input
• HDMI andHDCP compliant
• Applications
  Designed foruse with FLX-88, FLX-1616, FLX-3232
  Ideal forcorporate facilities, churches, schools, conference centers, and any otherapplication requiring HDMI connectivity
