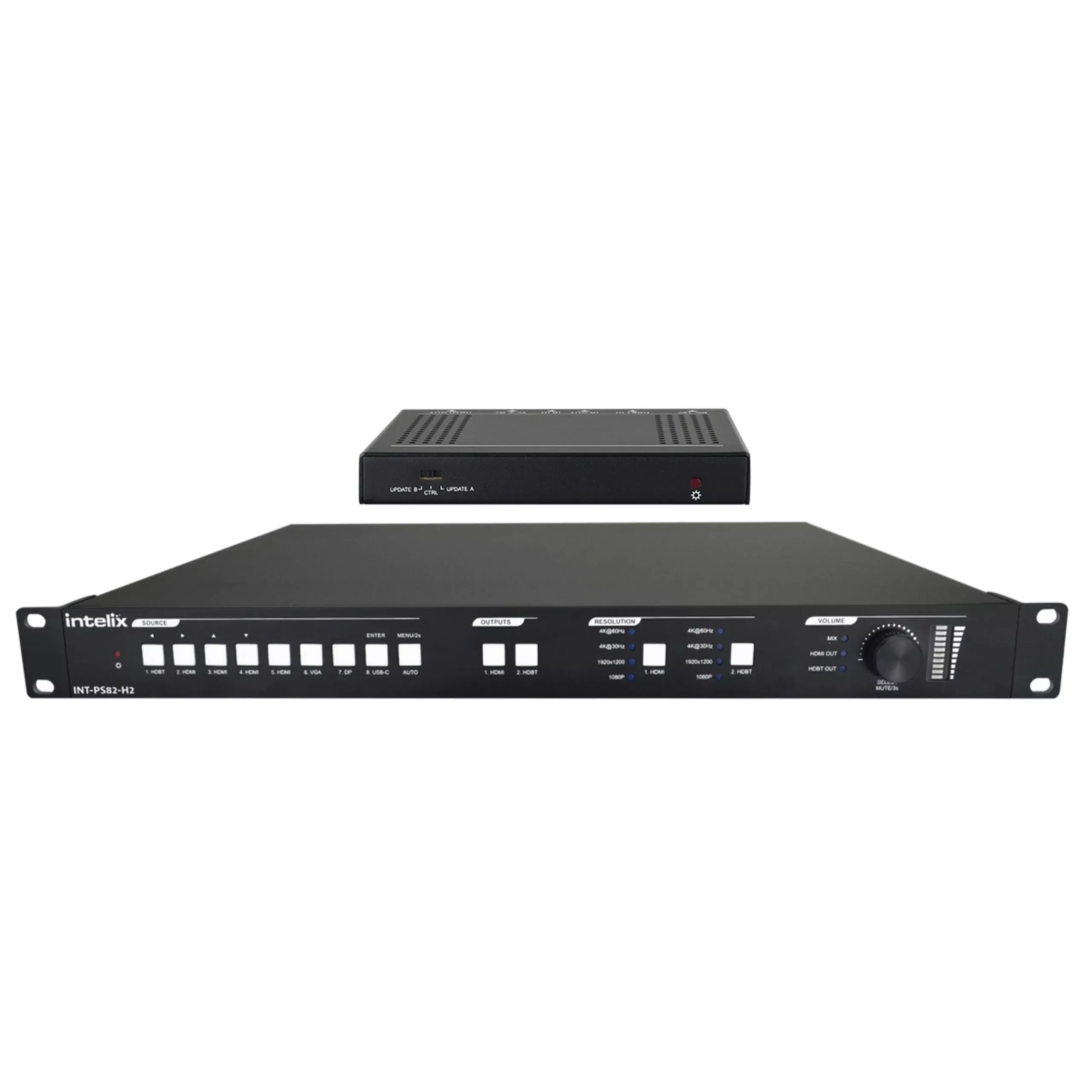

Intelix INT-PS82-H2 8 x 2 Multi-Format Presentation Matrix Switcher Kit
TheINT-PS82-H2 is an 8×2 multi-format seamless presentation matrix switcherfeaturing four HDMI, one HDBaseT, one USB-C , one DisplayPort and one VGA inputas well as an HDBaseT and two HDMI outputs, one of which is a mirrored from theHDBaseT output. The switcher supports automatic switching based on videosensing, and each output can be configured separately for auto or manual switching.The INT-PS82-H2 provides true 4K up/down scaling up to 4K@60Hz / 4:4:4 / 8 bitdeep color and both outputs can be scaled to different resolutionsindependently. The INT-PS82-H2 provides external audio inputs that can beembedded in HDBaseT, HDMI and VGA video inputs respectively. Moreover, itprovides an global, auxiliary MIX audio input that can be assigned to anyoutput. The switcher can de-embed digital and/or analog audio from both outputsfor audio reinforcement purposes.
TheINT-PS82-H2 ships with an 18G HDMI 2.0 HDBaseT receiver capable of extending 4Ksignals up to 40m / 132’ or 1080p up to 70m / 232’. The INT-PS82-H2 can alsotunnel RS232 and bi-directional IR signals to and from the HDBAseT receiver.The extension system enables high data rates by utilizing visual losslesscompression at a 2:1 data compression rate when the signal surpasses 10Gbps,anything under 10Gbps will never be compressed. Supports static HDR (HDR10)only when data rate exceeds 18Gbps, supports dynamic HDR (HDR10+ / Dolby Vision)when data rate is 10Gbps or less.
Theswitchers functions can be controlled by built in web server / GUI, IR remote,RS232, IP or by front panel button operation. Two relay switches are built infor projector screen or shades control.
Key Features
- True 8x2Auto matrix switcher; bundled with (1) HDBaseT 18G receiver
- 8 Inputsinclude (4) HDMI, (1) HDBaseT, (1) display port, (1) VGA w/audio & (1)USB-C
- 3 Totaloutputs: 2 output true matrix switching with mirrored HDMI / HDBaseT output
- 10.2GHDBaseT input with PoE accepts any Intelix HDBaseT transmitter
- 18G HDBaseToutput with included receiver transmits video resolution up to 4K60 4:4:4
- Supportsoutput scaling up to 4K60 4:4:4
- Fast /seamless switching
- HDCP 2.2compliant
- Balancedaudio embedding & de-embedding
- Signalextension 40m @ 4K and 70m @ 1080P with remote PoE power on HDBT in and output
- RS232 local& pass-through, IR local & pass-through, TCP/IP, relay, CEC, & OSDcontrol
- Audio mixingwith volume control
