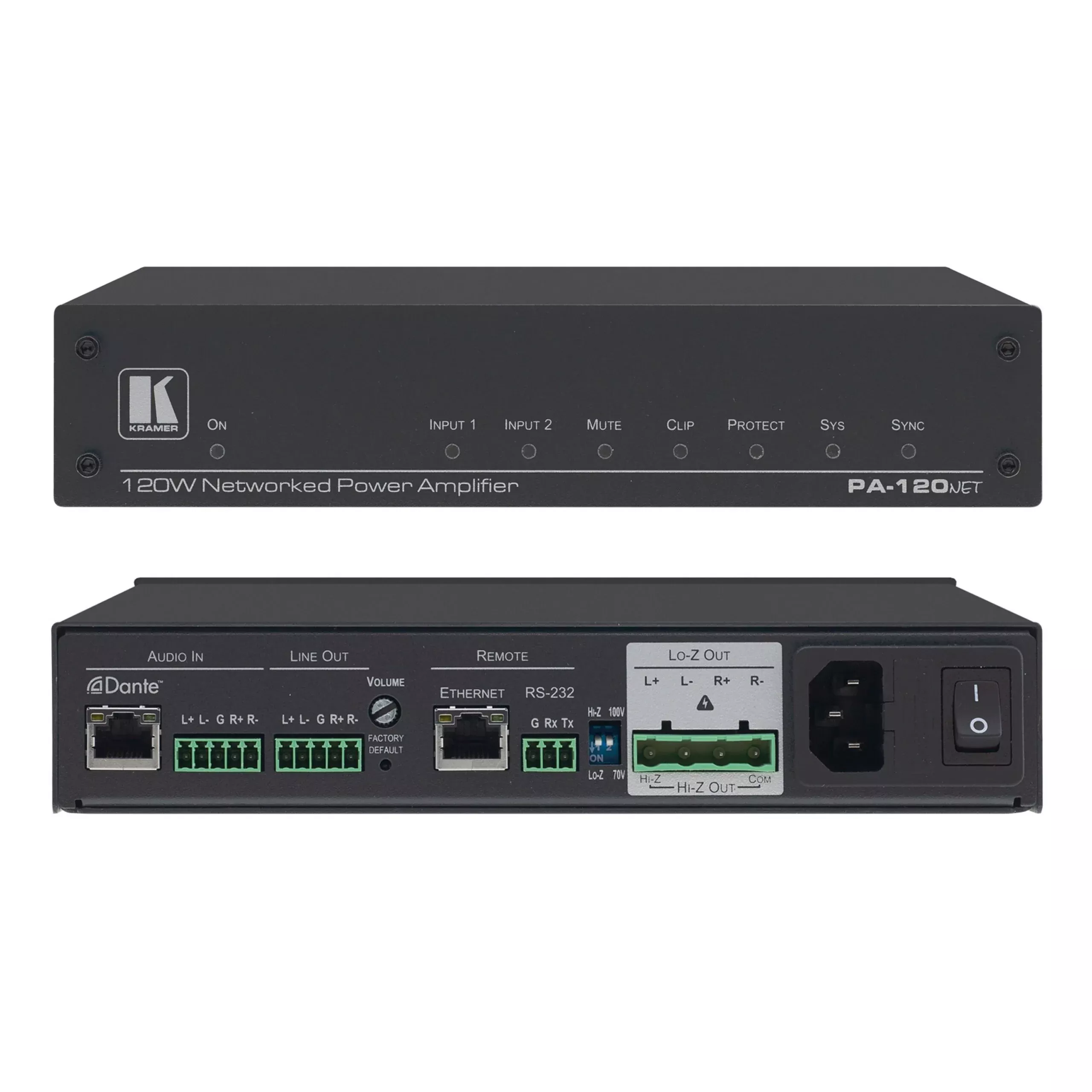

Kramer PA-120NET 120W Networked Power Amplifier

Kramer PA-120NET 120W Networked Power Amplifier

PA-120Net isa high-performance , selectable Hi-Z (70V/100V) or Lo-Z (4 OHM/8 OHM) poweramplifier featuring balanced and unbalanced inputs, additional line-leveloutput and Dante interface. This versatile amplifier features built-in DSP,auto-standby and maximum durability. PA-120Net is suitable for a vast range ofAV installations.

Key Features

• high-performanceAmplifier – With built-in DSP and additional balanced stereo line-level output.PA-120Net features flat frequency response, unmatched sonic performance,excellent signal to noise ratio, and extraordinarily low distortion levels.
• Adaptable toAny AV Installation – Switch between Lo-Z and Hi-Z to accommodate any type ofloudspeaker installation. Select 1 Channel of 120W into a 70V/100V line or 2channels of 60W into 4 OHM/8 OHM.
• Easy,Scalable and Cost-Effective Dante Audio Networking – Dante makes networking anysize audio installation easy by providing digital signal transmission over alocal area network using standard Internet protocols. The unit is part of theexpanding family of products that make up Kramer’s Dante ecosystem. Theseproducts are fully compatible and integrate into any Dante-enabled system.
• IndividualMix Per Output – Each output supports an independent input mix with mastervolume, 3-band parametric EQ, and selectable high-pass filter. Create oneoutput mix and EQ settings suitable for the venue and another for recording orcascading more amplifiers, powered speakers or subwoofers according to any AVinstallation requirements.
• Professional,Studio Grade Signal Conversion Technology – Includes the latest generation 32-bitadvanced Digital Analog Converter architecture to achieve excellent dynamicperformance and improved tolerance to clock jitter. Maintains the quality ofthe original audio signal with selectable sampling rates up to 96 kHz.
• Durable andReliable – PA-120Net is immune to failure. It includes layers of protectionagainst over-current, DC voltage at the outputs, high frequency, and over-heatingwith intelligent, heat-sensitive fans for added protection.
• FlexibleControl Options – Control locally via RS-232 serial commands or remotely viaembedded web pages over Ethernet.
• PowerEfficient – This super-efficient amplifier includes auto-standby for powersaving and cost reducing operation. No need to rely on default auto-standbysettings. Adjust your noise floor threshold based on exactly when youramplifier needs to go into sleep mode and when it needs to wake up.
  EasyInstallation – 1/2 19” size enables mounting in a 1U rack space with therecommended rack adapter.

TechnicalSpecifications

INPUTS
2 Channels,on a Dante Net: On an RJ-45 connector
1 BalancedStereo Audio: +4dBu/10k OHM, on a 5 pin terminal block
OUTPUTS
1 BalancedStereo Audio: Line level, on a 5-pin terminal block
1 Speaker:On a 4-pin large terminal block
PORTS
1 Controlvia IP: On an RJ-45 connector
1 RS-232: Ona 3-pin terminal block
AMPLIFIER
InputSensitivity: Full power @ 0.3V (-10dBV)
Output Power:2 x 60W @ 4 OHM or 8 OHM, 1 x 120W @ 70V or 100V
Class: D
MaximumVoltage Gain: 26dB SE / 32dB BTL
DynamicRange: 119dB
FrequencyResponse: 20Hz to 20kHz @ +/-1dB
S/N Ratio:80dB, 20Hz – 20kHz
Audio THD +Noise: THD+N (1kHz @ 1W) 0.003 %
Audio 2ndHarmonic: 0.08% @ 75W RMS @ 4 OHM 6.67kHz
USER INTERFACE
Controls:Output volume attenuator, IP and RS-232
POWER
Source:Universal mains operational voltage 85V AC – 265V AC
Consumption:195VA
Total SystemEfficiency: 89%
ENVIRONMENTAL CONDITIONS
OperatingTemperature: 0 to +40C (32 to 104F)
StorageTemperature: -40 to +70C (-40 to 158F)
Humidity:10% to 90%, RHL non-condensing
REGULATORY COMPLIANCE (STANDARDSCOMPLIANCE)
Safety: CE,FCC
Environmental:RoHs, WEEE
ENCLOSURE
Size: 1/219” desktop
Type:Aluminum
Cooling: Fanventilation
ACCESSORIES
Included:Power cord
PRODUCT DIMENSION
21.46cm x16.30cm x 4.36cm (8.45″ x 6.42″ x 1.72″ ) W, D, H
PRODUCT WEIGHT
1.1kg(2.3lbs) approx.
