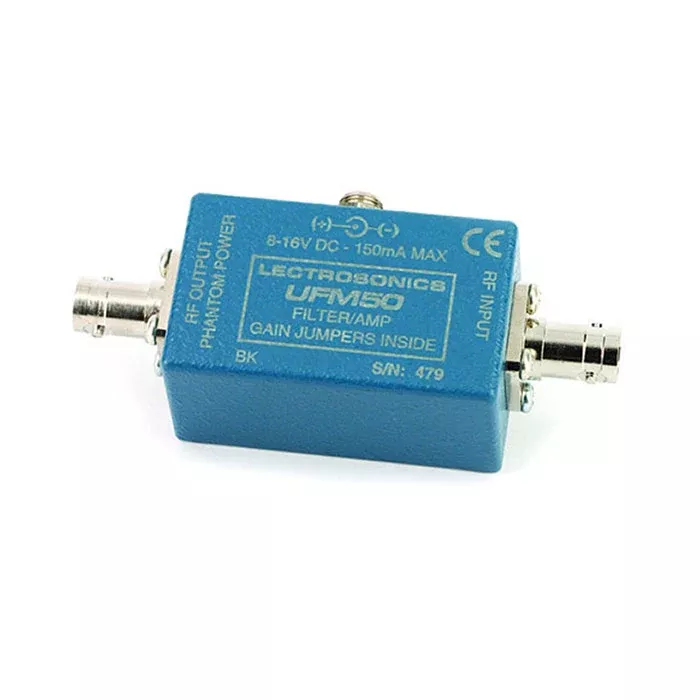

The UFM50 performs the same function as the UFM230 but with a 50 MHz passband to cover two standard Lectrosonics frequency blocks. Frequency range Specific. (Available by special order only.)
*Power supply not included
Features:
- 50 MHz passband on center frequencies from 560 to 865 MHz
- Ceramic resonator filters
- GasFET RF amplifier
- +41dBm 3rd Order Intercept
- Switching regulator for 8-16V power at constant power dissipation to minimize heat at high voltage
- Jumperable attenuators for +5dB, +8dB and +12dB total gain
- Cast aluminum housing
- External power or phantom power at output jack from UMC16A Multicoupler
- Includes 6 ft DC locking style mating connector assembly for powering
