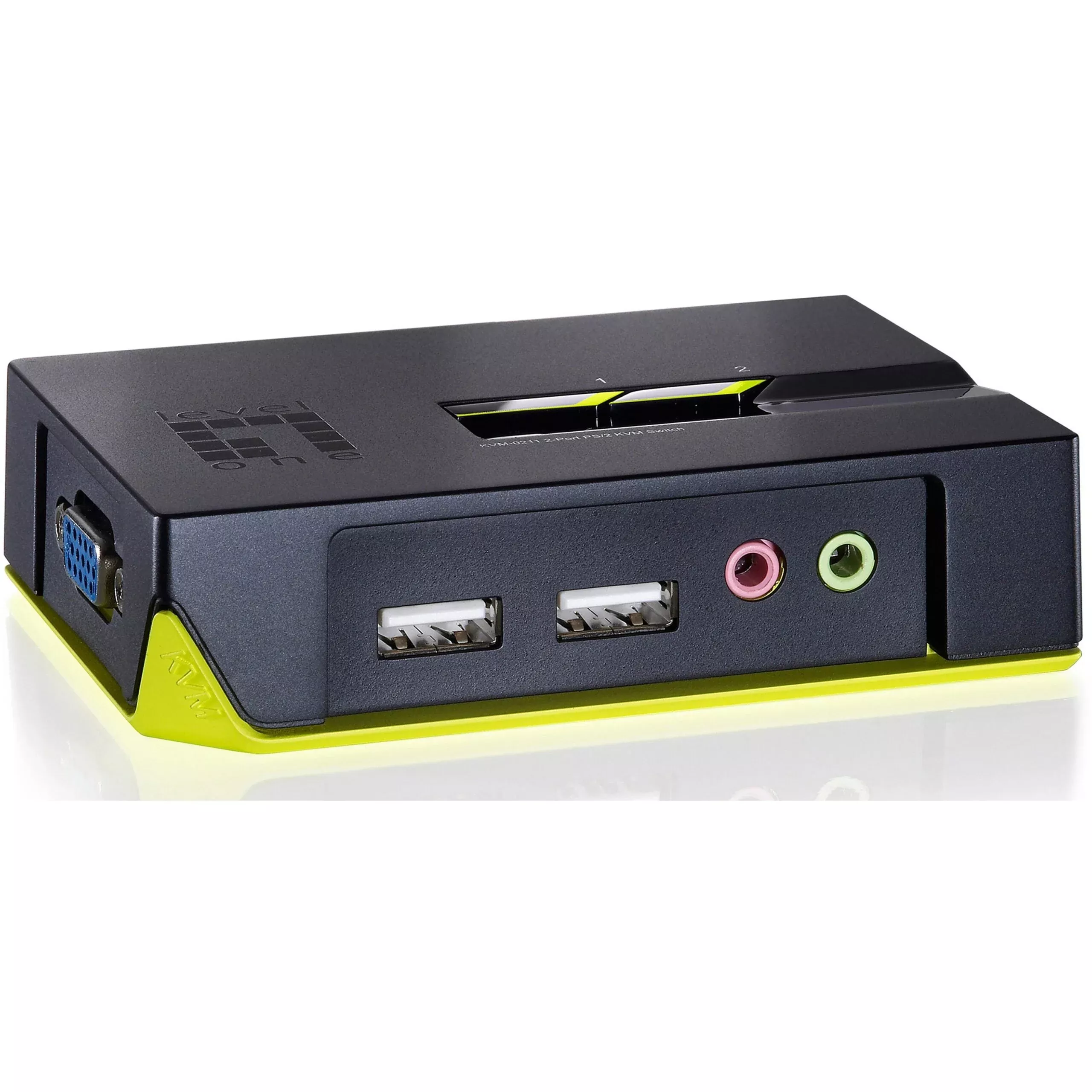

LevelOne KVM-0221 2-Port USB VGA KVM Switch
The LevelOneKVM-0221 2-Port USB KVM Switch with Audio from LevelOne offers users with aneasy to install KVM switch that can manage two computers from a single monitor,keyboard and mouse. With audio support, users can connect a single set ofspeakers directly to the KVM switch and enjoy listening to music and watchingmovies from either computer without switching cables. It allows users toaccess, control, boot and reboot two USB-enabled multimedia computers using asingle USB keyboard, mouse and monitor and a speaker set and microphone.
Key Features
- Control andmanage 2 computers by using a single USB keyboard, mouse and monitor
- Supportsvideo resolutions up to 2048 x 1536
- Easyswitching between computers with keyboard hotkeys/front panel push button
- Windows andMac switching software support
- Self poweredthrough USB connection
- Independent/simultaneousswitching of PC and audio/mic channel
- Providesauto-scanning features and audio support
TechnicalSpecifications
Console Port
Keyboard
USB x 1
Mouse
USB x 1
Video
HDB 15-pin(Female)
Audio Input/ Output
3.5mm jack x1
Mic Input/ Output
3.5mm Micjack x 1
PC Port
USB x 2
HDB 15-pinFemale x 2
Audio / MicConnector x 2
Monitor Supported
VGA / SVGA /QXGA / WUXGA
LEDs
2 LEDs
PC Selection
Push Button/ Hot Key / Auto Switching
Power
USBInterface Power
Microphone Supported
V
Cables
USB KVMCombo Cable Sets (1.8m) x 2
Min USB3.5mm Audio / Mic Cables x 2
Max. Resolution
2048 x 1536
Scanning Interval
10,15,20,25,30,35,40,45,50,55,60Seconds
Operating Temp.
0~50C
Storage Temp
-20~60C
Humidity
0~80 % RHNon-Condensing
Enclosure
High-impactPlastic
Weight (g)
116
Dimensions (L x W x H)
96mm x 61mmx 24mm
OS Supported
Win &Mac
Item Includes
x1 KVM-0221
