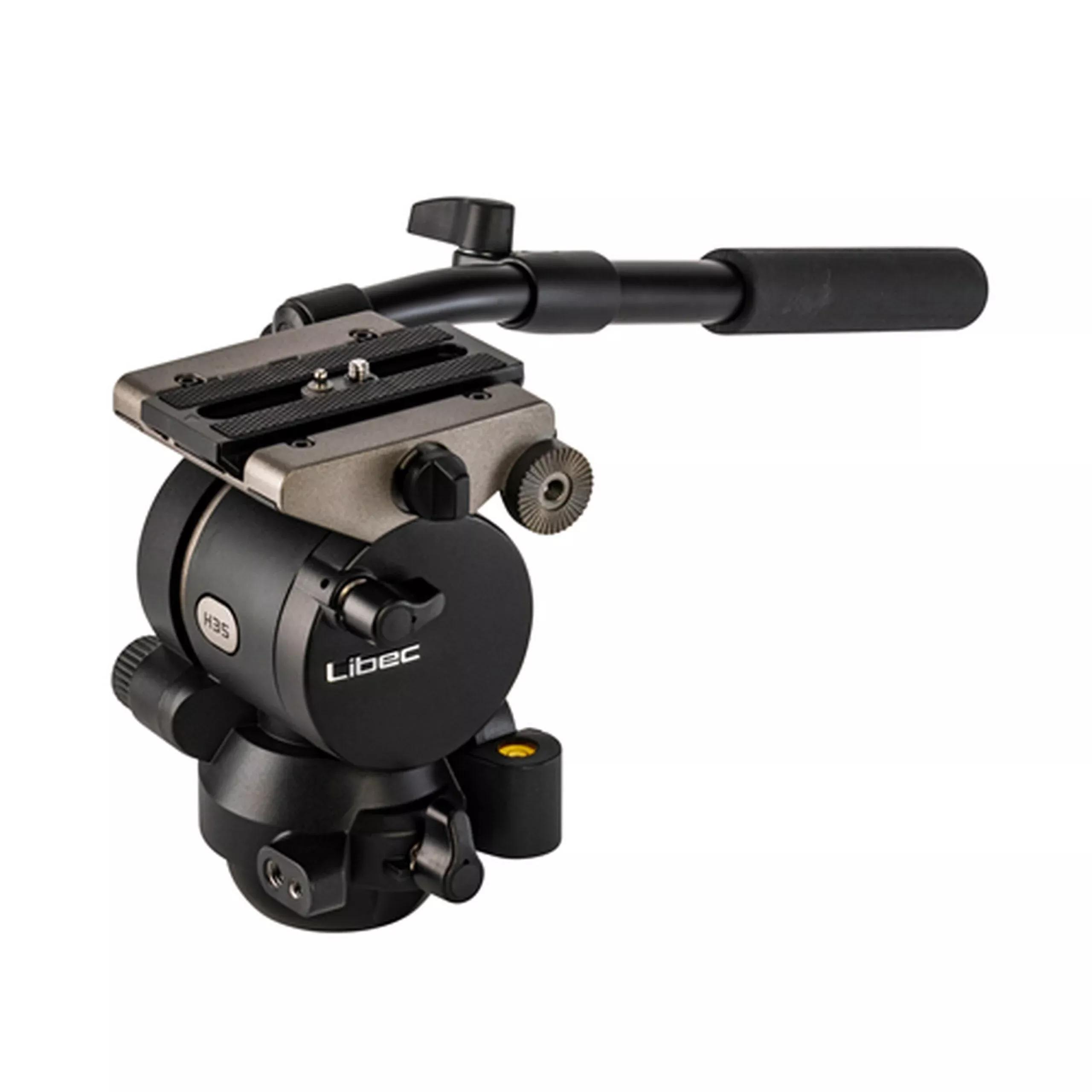

Libec H35 75mm Ball and Flat Base Video Head
From scratch, the fluid head was designed to dramaticallyreduce play inside its superior pan and tilt drag units, dramaticallyincreasing its longevity. From start to finish, this new fluid head providesultra-smooth movements and is equipped with many features that enhance a user’sexperience.
The Dual-head base specification allows for a quick set-upwith both 75mm bowl and flat base tripods. The Dual-head base is alsocompatible with sliders, skater dollies, and photo tripods.
Technical Specifications
Counterbalance range
3 to 7.5kg / 6.6 to 16.5lb (C.G.100mm)
Payload
8kg / 17.6lb
Counterbalance
Perfect Balance
Continuous Counterbalance with Illuminated Meter
Pan drags mode
Free plus 3 steps
Tilt drag mode
Free plus 3 steps
Drag system
Multilayered Metal Structure
Tilt angle
+90 Degrees / -70 Degrees
Temperature range
-40 Degrees C to +60 Degrees C / -40 Degrees F to +140Degrees F
Bubble level
Illuminated
Camera plate
Sliding plate compatible with Manfrotto and Sachtler heads
Sliding range
+/-30mm / 1.2”
Long sliding plate
Included
Head base
75mm ball / Flat base
Plate attachment
1/4” screw with video pin
Accessory attachments
1/4” and 3/8” screw holes
Spare screw
1/4” and 3/8” screws
Weight
2.8kg / 6.2lb
