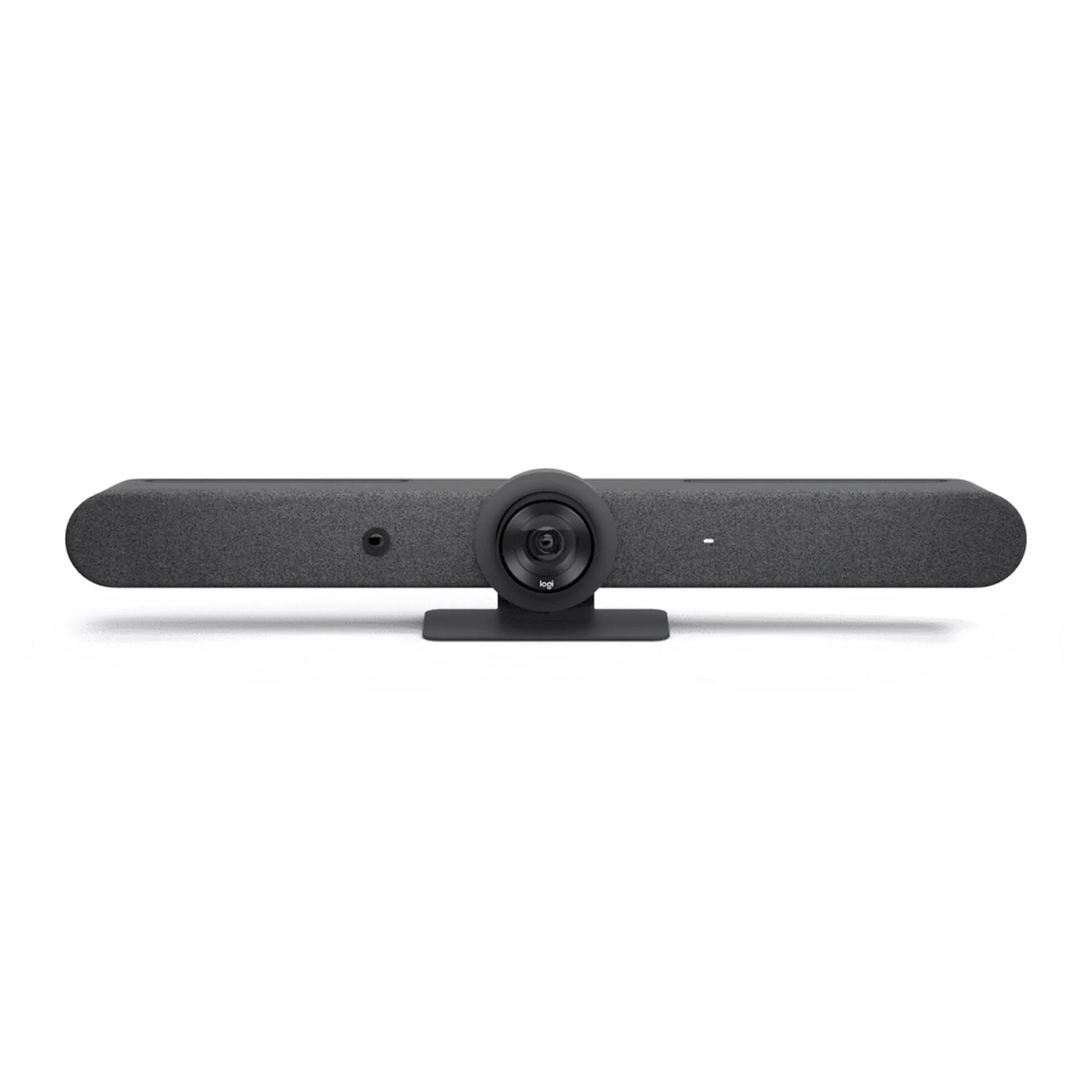

Logitech Rally Bar All-In-One Video Conferencing, Graphite
Connect via USB to virtually any PC or Mac with noadditional software needed. Start your meeting with just one touch, seamlesslyconnecting Rally Bar to your preconfigured room solution. Upgrade the meetingexperience with cinema-quality video, outstanding color, and exceptionaloptical accuracy. Using AI, human perception, and motorized PTZ, Rally Baradapts to meeting dynamics and keeps the camera on the action. Rally Bar’sadvanced audio engineering delivers powerful, room-filling sound and makes sureevery voice is clearly heard. Auto-level loud and soft voices – whilesuppressing unwanted noise – with AI-based RightSound technology that improvesover time. Easily accommodate larger groups and spaces, starting with a 4.57 mmic pickup range and the option to extend up to three Rally mic pods (varies byenvironment).Keep the focus on meeting participants with AI Viewfinder, whichuses scene awareness to optimize RightSight auto-framing and camera control.
Technical Specifications
DIMENSIONS
Height
6.46 in (164 mm)
Width
2.99 ft (910 mm)
Depth
5.14 in (130.5 mm) 2Camera adds 0.73 in (8.8 mm) to thedepth.
Lens Depth
0.73 in (18.5 mm)
Weight
15.6 lbs (7.08 kg)
Camera
Resolution
4K, 1440p, 1080p, 900p, 720p, and SD at 30fps
Pan
Motorized -25
Tilt
Motorized -15
Zoom
15X HD zoom (5X optical, 3X digital available with upcomingsoftware update)
Diagonal field ofview (dFoV)
90
Horizontal Field ofView
82.1
Vertical Field ofView
52.2
Total Room Coverage
132.1 Horizontal x 82.2 Vertical
Speakers
Drivers
2x 70 mm / 2.7 in
Output
90dB SPL @1W, 99dB SPL @8.0W, both +/-2dB atmeter
Sensitivity
90+/-3dB SPL at 1W,meter
THD
1kHz <2%
Speaker Sampling Rate
48 kHz
Microphones
Frequency response
90Hz – 16kHz
Sensitivity
>-36dBFS +/-1 dB @ 1Pa
Microphone data rateoutput
48 kHz
Pickup Range
15 ft / 4.5 m
Beamforming Elements
Six omnidirectional digital MEMS microphones forming fiveadaptive acoustic broadside beams
Audio processing
AEC (Acoustic Echo Cancellation), VAD (Voice ActivityDetector)
Noise suppression
AI filter
Add-on Mics
Supports up to 3 additional Rally Mic Pods for largerconference rooms
RightSenseTechnologies
RightLight
Renders natural skin tones for each participant.
RightSight
Maintains persistent room awareness and detects humanfigures to auto-frame participants.
RightSound
Distinguishes speech from other sounds to auto-level voiceswhile suppressing background noise and echo
Interfaces
HDMI Out
2
HDMI In
1
USB 3.0
3x Type A, 1x Type C
Network
0.04oz (1 g)0/100/1G Ethernet
WiFi
802.11a/b/g/n/ac (MIMO)
External Mic Input
Yes (proprietary input supports optional Rally Mic Pod,Rally Mic Pod Hub, and Rally Mic Pod Extension Cable)
Remote Control
Bluetooth Low Energy
Power & Cables
Power supply
Auto-sensing
OperatingVoltage/Power
100-240V, 19V, 4.74A
Power SupplyDimensions
5 in (127 mm) x 2.01 in (51 mm) x 1.18 in (30 mm)
DC Cable
5 ft (1.5 m)
AC Cable
3.28 gy (1 m)
HDMI 1.4 Cable
7 ft (2 m)
USB A to USB C 3.0Cable
2.2 m/7.2 ft
Environmental
Operating Temperature
0 to 40C
Storage Temperature
-40 to 70 C
Humidity
10 to 95%
BTU/hr
57 idle, 64 in meeting
Security
Full Disk Encryption
AES-128
Data Encryption
Symmetric Keys, PKI
Device Identity
Protected by device attestation
Device Access
Authenticated using API
Key Protection
Arm TrustZone, RPMP
PACKAGE CONTENTS
Rally Bar
Power supply
AC power cord
HDMI cable
USB cable
Remote control
Lens caps for main camera and AI Viewfinder
User documentation
