Lowell NR4P-5236

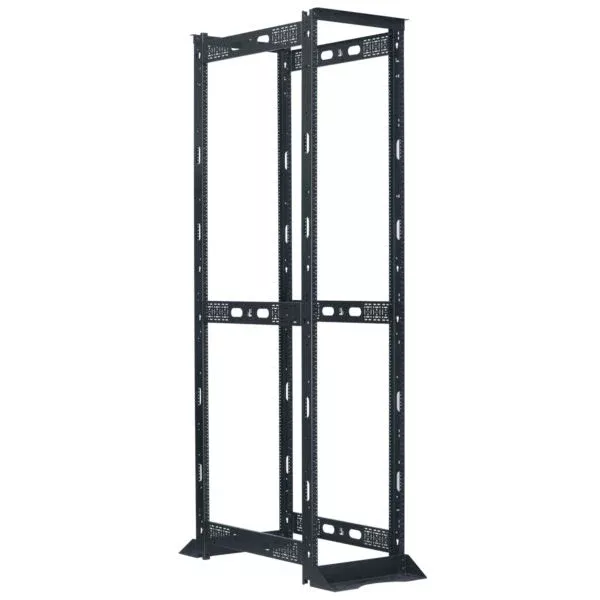

NR4P-5236: Network Rack 52U x 48?D

Four-post, gangable network rack provides full access to 19″ rackmounted electronics such as routers, switches, UPS’s, etc. and the open design provides unrestricted airflow. An economical rack – ideal for telecommunications, equipment rooms and other network applications.

SPECIFICATIONS

• Rack Space: 52U
• Overall Height: 96.50 in.
• Overall Depth: 48.00 in.
• Overall Width: 20.25 in.

FEATURES

• Four double-sided 12-gauge steel channel rails (3 in. wide)
• Holes tapped 12-24 on EIA spacing
• Numbered RU increments
• Multiple cable pass-through points
• Grounding studs at top and bottom
• Two-piece 12-gauge steel top and base
• Four holes for anchors (not included)
• Six side extension panels with multiple holes for cable pass through, and tie off points
• Assembly and mounting hardware
• Smooth black finish
• Ships unassembled

COMPLIANCE & CERTIFICATION

• EIA/TIA compliant
• Certified US steel
• Made in the USA

A&E SPECIFICATIONS

• The EIA/TIA compliant four-post network rack shall be Lowell Model NR4P-5236, which shall measure 20.25″W x 48.00″D (at base) x 96.50″H, providing panel space of 52 rack units. Rack construction shall be a two-piece steel top and two-piece steel base, which shall feature four holes for anchoring to the floor (anchors not included). The network rack shall include four 12-gauge steel (3″W) double-sided vertical channels with mounting holes tapped 12-24 on EIA mounting centers and feature printed RU markings. Side extensions feature holes for cable pass through, and tie off points. Top, base, side extensions and vertical channels shall have a smooth black powder epoxy finish. The rack shall ship unassembled and include assembly and panel mounting hardware.
