Lowell RY-2

Original price was: $116.55.Current price is: $74.01.

Sale!
SKU: RY-2- Categories: ,
Share

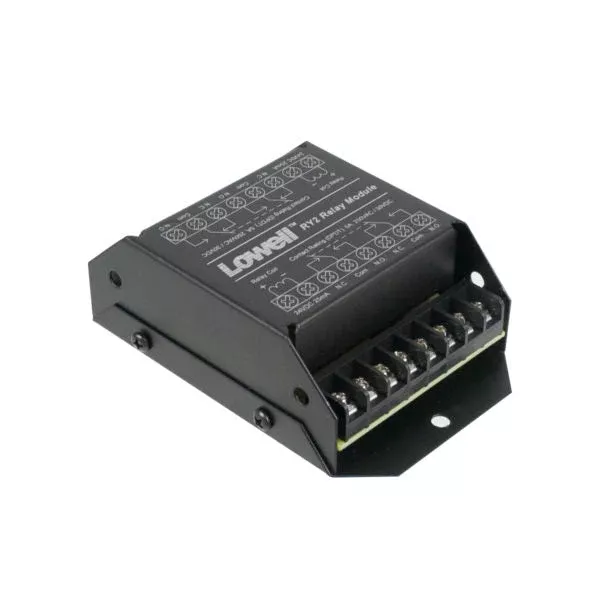

RY-2: Relay Module (classic)

General purpose relay module with 2 heavy duty double-pole double-throw (DPDT) relays.


FEATURES

  • Steel Chassis:  5 in. x 1.688 in. x 3.28 in.
  • 5A contact rating (24VDC/240VAC)
  • Two (2) DPDT independent relays
  • Spike suppression and polarity protection diodes
  • Enclosed design protects relays and components
  • Relay can be field converted to AC operation by installing an electrolytic capacitor
  • Holes for screw-mount installation

COMPLIANCE & CERTIFICATION

  • Made in U.S.A. with global components

A&E SPECIFICATIONS

  • The relay module shall be Lowell Model No.RY-2 to provide two heavy duty DPDT relays. The relay shall have a contact rating of 5 Amps, 24VDC/240VAC. The relay shall be have spike suppression capability, polarity protection diodes and three-sided barrier strip terminals with wire clamps. The module shall be enclosed in a steel chassis measuring 5 in. x 1.69 in. x 3.28 in. It shall have a black semi-gloss finish and holes for wall or shelf mount.
