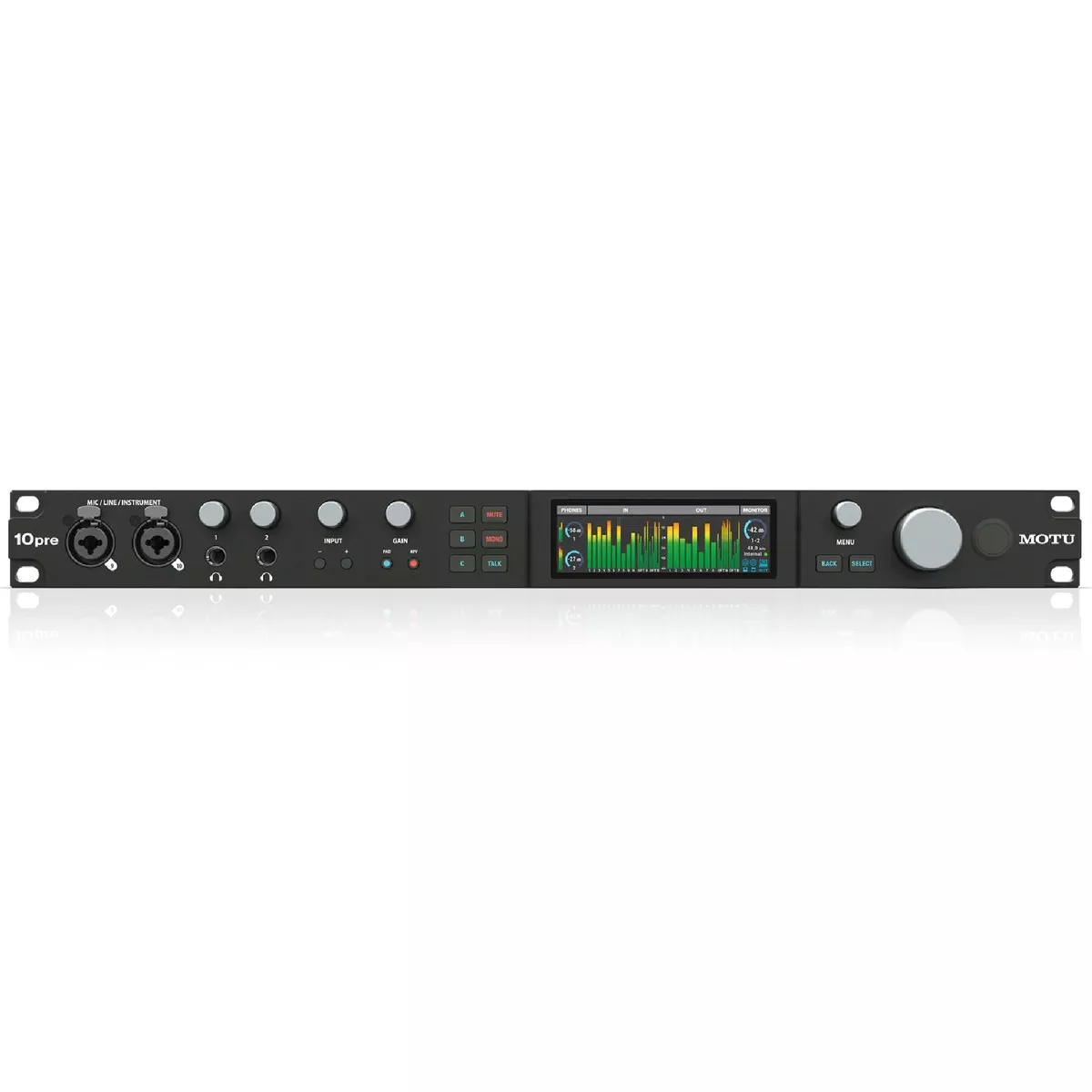

MOTU 10pre Thunderbolt 4/USB4 Audio Interface
Take your studio to the next level with the MOTU 10pre Thunderbolt 4/USB4 Audio Interface. Offering 26 inputs and 28 outputs, ultra-low latency performance, and advanced DSP mixing, the 10pre combines professional-grade audio quality with cutting-edge connectivity for a seamless recording and production experience.
Key Features
-
High-Resolution Display: 3.9-inch 24-bit RGB TFT LCD provides detailed metering and status info for all analog and digital I/O.
-
Superior Audio Quality: ESS Sabre32 DACs deliver 125 dB dynamic range with support for sample rates up to 192 kHz.
-
Ultra-Low Latency: Round-trip latency as low as 1.8 ms at 96 kHz with high-performance DAW hosts.
-
Thunderbolt 4 / USB4 Connectivity: Class-compliant, supports up to 256 audio channels (128 in/128 out) and connects to computers and iPads with USB-C.
-
Flexible I/O: 10 mic/line/instrument combo inputs, 8 TRS analog outputs, two optical I/O banks, and dual headphone outputs.
-
Advanced Mic Channels: Transparent preamps with +74 dB gain, -20 dB pad, 48V phantom power, phase invert, and dedicated insert for channels 1-2.
-
DSP Mixing & Effects: 64-channel mixing with 32-bit floating point DSP, reverb, 4-band EQ, high-pass filter, gate, and compression.
-
Optical Expansion & AVB Networking: Add more inputs/outputs or daisy-chain multiple interfaces with ultra-low network latency.
-
Wi-Fi & CueMix Pro Control: Mix and control settings wirelessly from iOS or desktop devices.
-
Guitar Re-Amping & Loopback: Record dry signals and re-amp later or stream live with flexible routing options.
Technical Specifications
-
Inputs/Outputs: 26 in / 28 out (mic/line/instrument, TRS, optical)
-
Max Sample Rate: 192 kHz
-
THD+N: -114 dB (mic channels)
-
Dynamic Range: 118 dB (mic channels)
-
Power: Bus-powered or external power (depending on setup)
-
Software Included: CueMix Pro & Performer Lite with over 100 instruments, effects, and 6 GB of loops
The MOTU 10pre Thunderbolt 4/USB4 delivers professional-grade audio quality, ultra-low latency, and unparalleled flexibility for any modern studio setup. Whether recording, streaming, or producing, its combination of high-end preamps, DSP effects, and advanced connectivity ensures every session is smooth, precise, and fully under your control.
