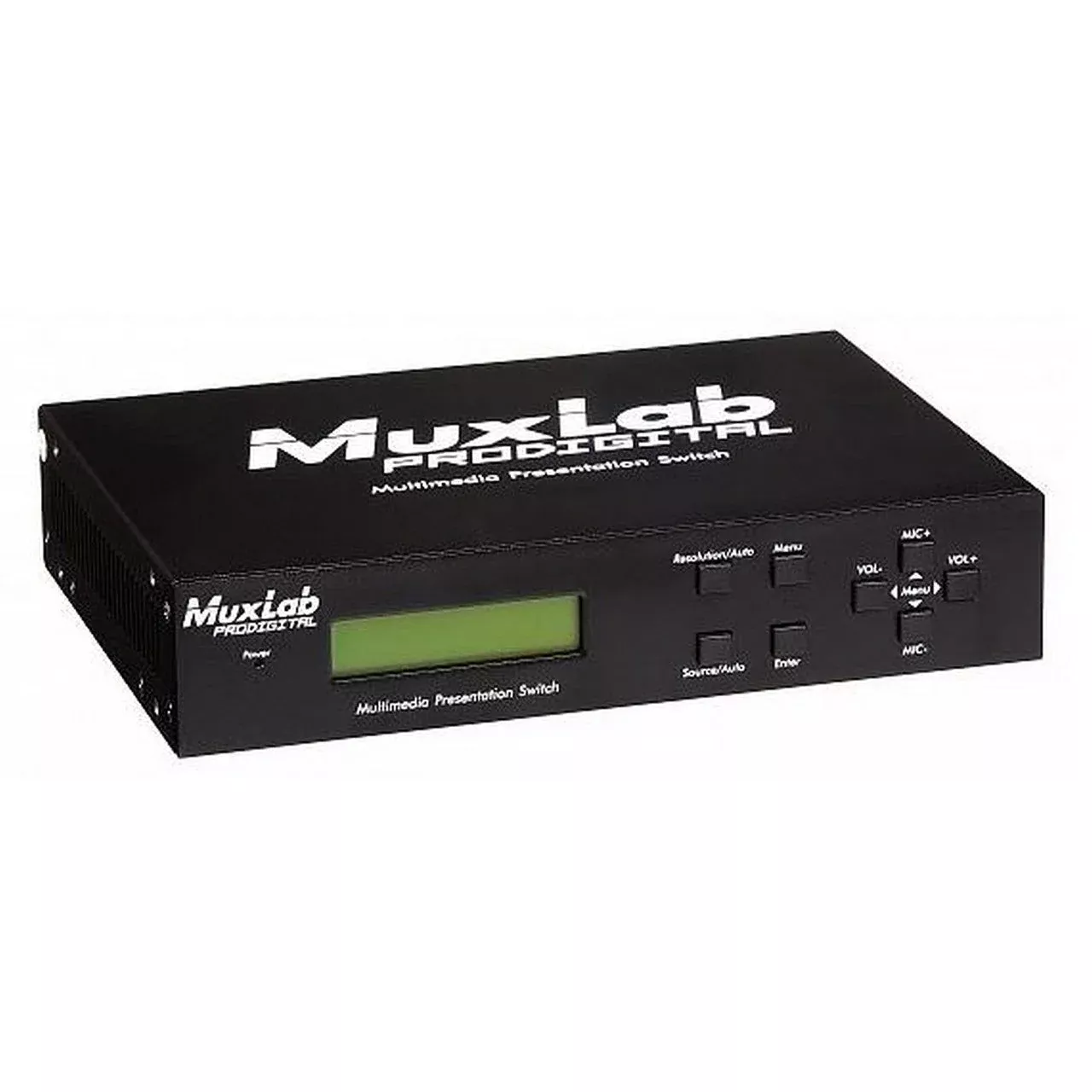

MuxLab 500435 HDMI/HDBT 5X1 Multimedia Presentation Switch
The 5×1 HDMI / HDBT Presentation switch is a compact scaler switcher with 5 video inputs (3 HDMI, 2 VGA) and 6 audio inputs (3 HDMI audio & 2 VGA with audio switched following the video; 1 MIC audio input). The VGA input supports VGA, Component Video (YPbPr) and Composite Video. The 5×1 HDMI / HDBT Presentation switch scales & switches any video signal to HDMI output and HDBaseT output for a transmission over up to 70 m of Cat5e/6 with PoC support. With 1 IR Sensor, 5 IR Emitters and 1 RS232 port, bidirectional IR & RS232 signals can be transmitted simultaneously between the 5×1 HDMI / HDBT Presentation switch and the HDMI Extender PoC/PoE Receiver. Applications: computer realm, monitoring, conference room and conference centres, corporate boardrooms, hotels and hospitality rooms, big screen displaying, television education, command & control centres and smart homes.
Key Features
- Supports video source auto-switching function
- Bi-directional IR & RS232 control
- Supports HDMI, VGA, Composite Video, and Component Video (YPbPr)
- Output resolutions selectable (1920×1200, 1920×1080, 1600×1200, 1360×768, 1280×800, 1280×720, 1024×768)
- Supports CEC, with commands to enable/disable this function
- Compliant with HDCP
- Supports online software upgrading
- MIC port supports balance/unbalance signal, suppress the external noise effectively
- 48V phantom power to support condenser microphone
- 3-level MIC input, supports condenser microphone, dynamic microphone and wireless microphone
- Controllable via button, IR & RS232
- Powerful OSD function
