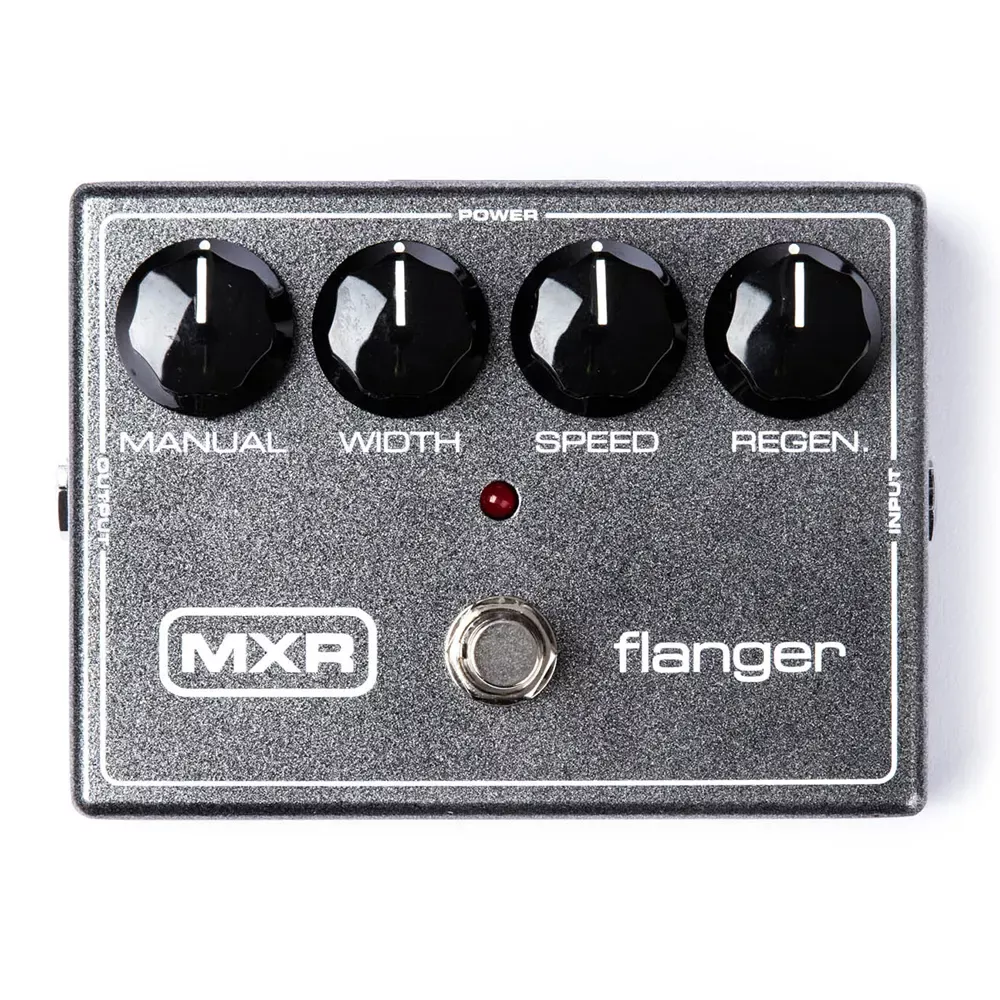

MXR 117R Flanger Guitar Effects Pedal

The MXR Flanger creates a variety of wild sounds from dynamic jet plane or cool space effects to short delay, chorus and vibrato.

The MXR Flanger creates a variety of wild sounds from dynamic jet plane or cool space effects to short delay, chorus and vibrato. Back off Width to zero to disengage auto-sweep, then use the Manual knob to physically place the effect anywhere along the frequency spectrum; use with guitar, bass, keyboards or vocals.

• Input Impedance: 470 kΩ
• Output Impedance: 1 kΩ
• Max Input Level: 5 dBV
• Max Output Level: 5 dBV
• Noise Floor: -98 dBV
• Noise Reduction: 2:1 ratio
• Max Delay: 12.8 ms
• Rate Range: 0.1 Hz to 10 Hz
• Current Draw: 39 mA
• Power Supply: 18 volts DC
