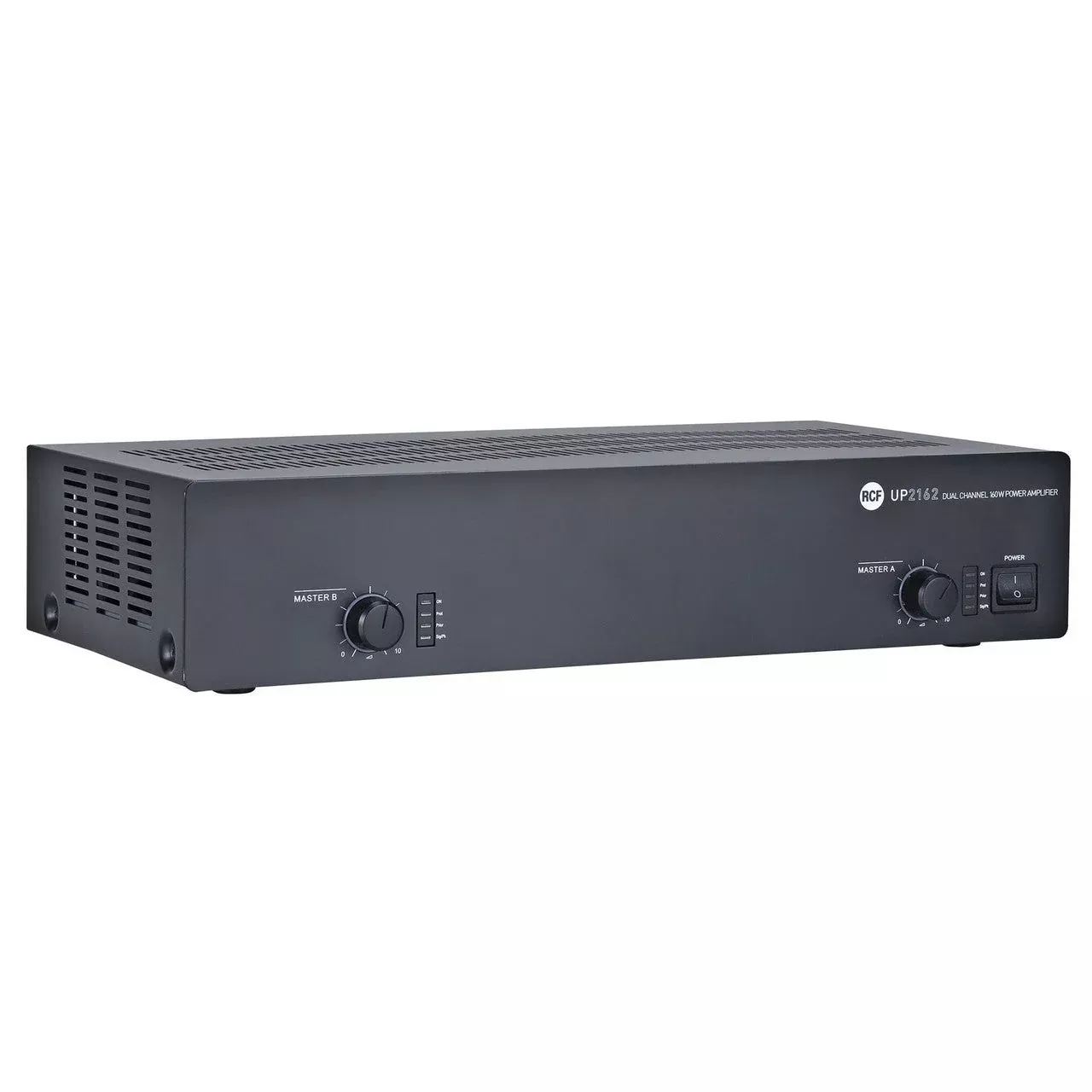

RCF UP-2162 2x160W Power Amplifier

UP 2162 is adevice with 2 separated and independent 160 W amplifiers, each having 2 audioinputs, of which one with priority function through a closing contact. Both theaudio inputs are at ‘line’ level for pre-amplified signals or music sources(e.g. CD players, tuners, etc.).The amplifier output is available either forlow impedance loudspeakers (min. 4 O) or 100 – 70 V constant voltage line (forloudspeakers having 100 – 70 V transformers). The amplifier is Class D withswitching power supply; the overall weight is extremely reduced plus it offersa wide audio bandwidth quality.

Key Features

PowerAmplifier designed for the transmission of announcements and / or musicalprogrammes
Main inputon removable connector
AUX Inputfor music sources removable connector
Controls fortreble, bass and Gain on the AUX Input
Main Inputcan have priority over the Aux Input (by means of an external command linked tothe removable connector)
Outputspeaker available either for low impedance loudspeakers (min. 4 O) or 100 – 70V constant voltage line
Front panelLEDs indicate the device state (ON, PROT), the priority activation (PRIOR) andthe signal/peak level (SIG/PK)

TechnicalSpecifications

Amplifier specifications
DISTORTION (THD+N) @ 1 KHZ NOMINAL POWER
<0.3 %
FREQUENCY RESPONSE (-3DB)
50 Hz – 16kHz
NUMBER OF CHANNELS
2
POWER OUTPUT (@ 100 V)
160 W RMS
POWER OUTPUT PER CHANNEL (@ 4 OHM)
160 W RMS
SIGNAL/NOISE RATE (”A” WEIGHTED)
>80 dB

Controls
CONFIGURATION
Front panel
PRIORITY
Yes

Processing
TONE CONTROLS
Yes

Input section
BALANCED
4
GENERAL PURPOSE INPUTS (GPI)
4
LINE CONNECTORS
Euroblock
LINE INPUTS
4
MONO
2
STEREO
2
TOTAL NUMBER OF INPUTS
4
