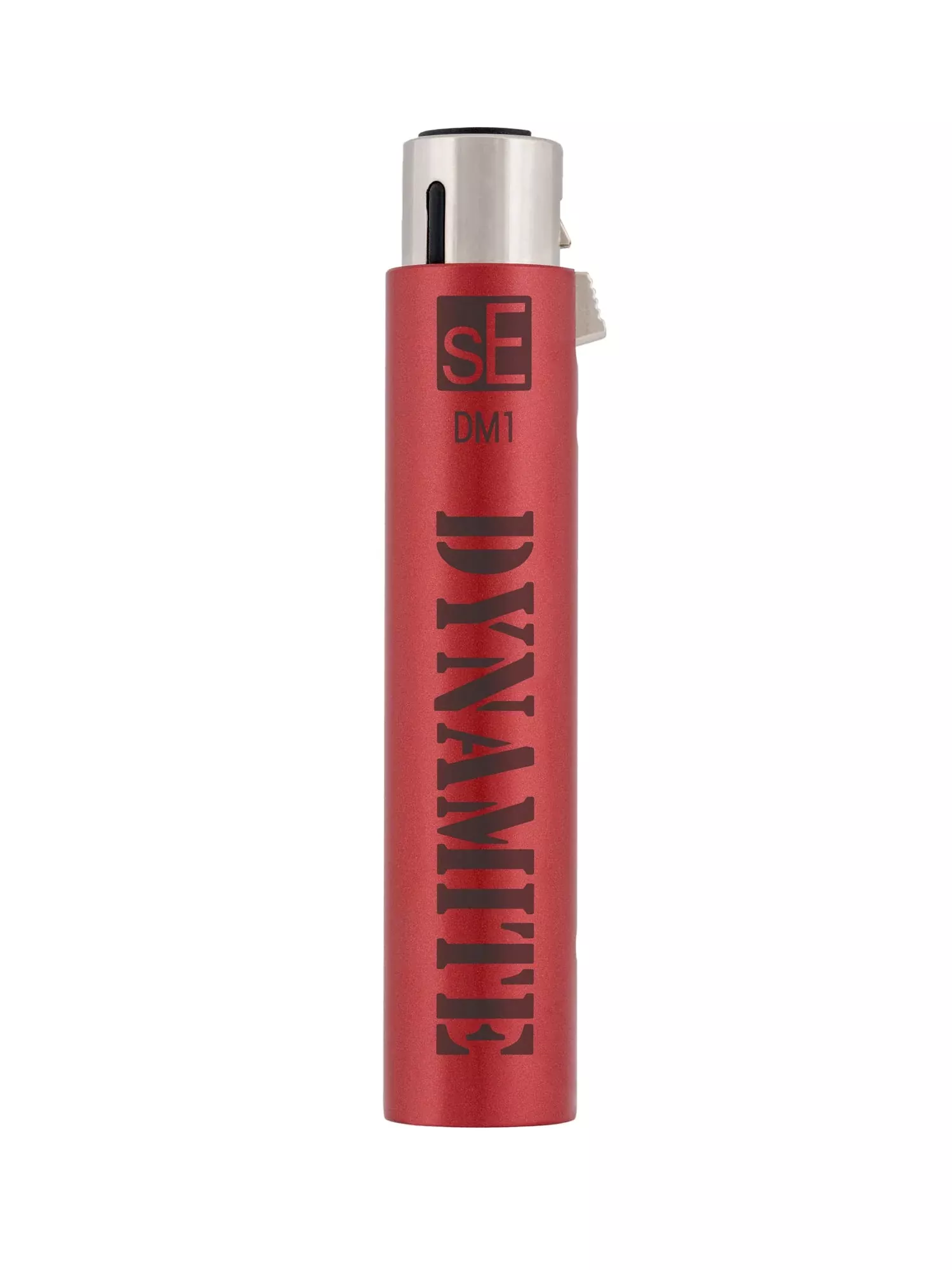

Some microphones require asignificant amount of gain, and not all preamps can handle this demand. Enterthe sE Electronics DM1 Dynamite Active Inline Microphone Preamp with 28dBGain – an ultra-slim active inline preamp that seamlessly integratesbetween your mic and preamp, offering a substantial +28dB of clean, transparentgain for all your passive microphones.
Equipped with a sophisticatedclass-A design and top-notch high-grade FETs, the DM1 boasts markedly loweroutput impedance and nearly half the noise compared to other options on themarket. Its gain remains a consistent 28dB, irrespective of the connected load,thanks to its dedicated buffer amplifier.
The DM1 serves as an idealsolution to amplify the signal from a passive mic, decrease interference risks,and deliver a significantly enhanced level to your preamp without introducingnoise or altering the sound. Notably, its output impedance is the lowest in itscategory, enabling it to drive lengthy cable runs while minimizingvulnerability to RF interference, buzz, and hum.
The sturdy all-metal design,reliable construction, and high-quality manufacturing standards guaranteedependable operation even in challenging on-stage settings and demandingenvironments.
Key Features
- +28dB of clean, consistent gain, unaffected byload variations
- Engineered for neutral, balanced sound quality
- Ideal for enhancing passive microphone signals
- Maintains consistent gain regardless of loadchanges
- Enhances level to your mic preamp for optimalgain staging
- Cutting-edge electronics and high-grade FETs forexceptionally low noise
- Transformerless design for pristine soundquality
- Offers the lowest noise levels in its class
- Delivers +28dB output independently of loadimpedance or cable length
- Ultra-low output impedance
- Capable of driving long cable runs and reducingsusceptibility to interference
- Effectively rejects electrical interference andnoise
- Durable finish ensures a stylish appearance foryears to come
- Slim design facilitates easy placement instudios or on stages
- Ensures loss-free and reliable signal connection
TechnicalSpecifications
Frequency Range
10 Hz -120,000 Hz (-0.3 dB)
Gain
28 dB (load1kOhms)
Max output level (0.5% THD)
8.3 dBV (2.6V)
Output noise level
9 uV (JIS-A)
Powering
48 Voltsaccording toIEC 61938
Electrical impedance
135 Ohms
Recommended load impedance
>1k Ohms
Current consumption
3.0 mA
Connectivity
3-pinmale/female XLR connector
Dimensions
Diameter
19 mm (0.75in.) Length
95.5 mm(3.76 in.)
Weight
80 g (2.82oz.)
In the Box
DM1
sE LogoSticker
User manualwith warranty card
