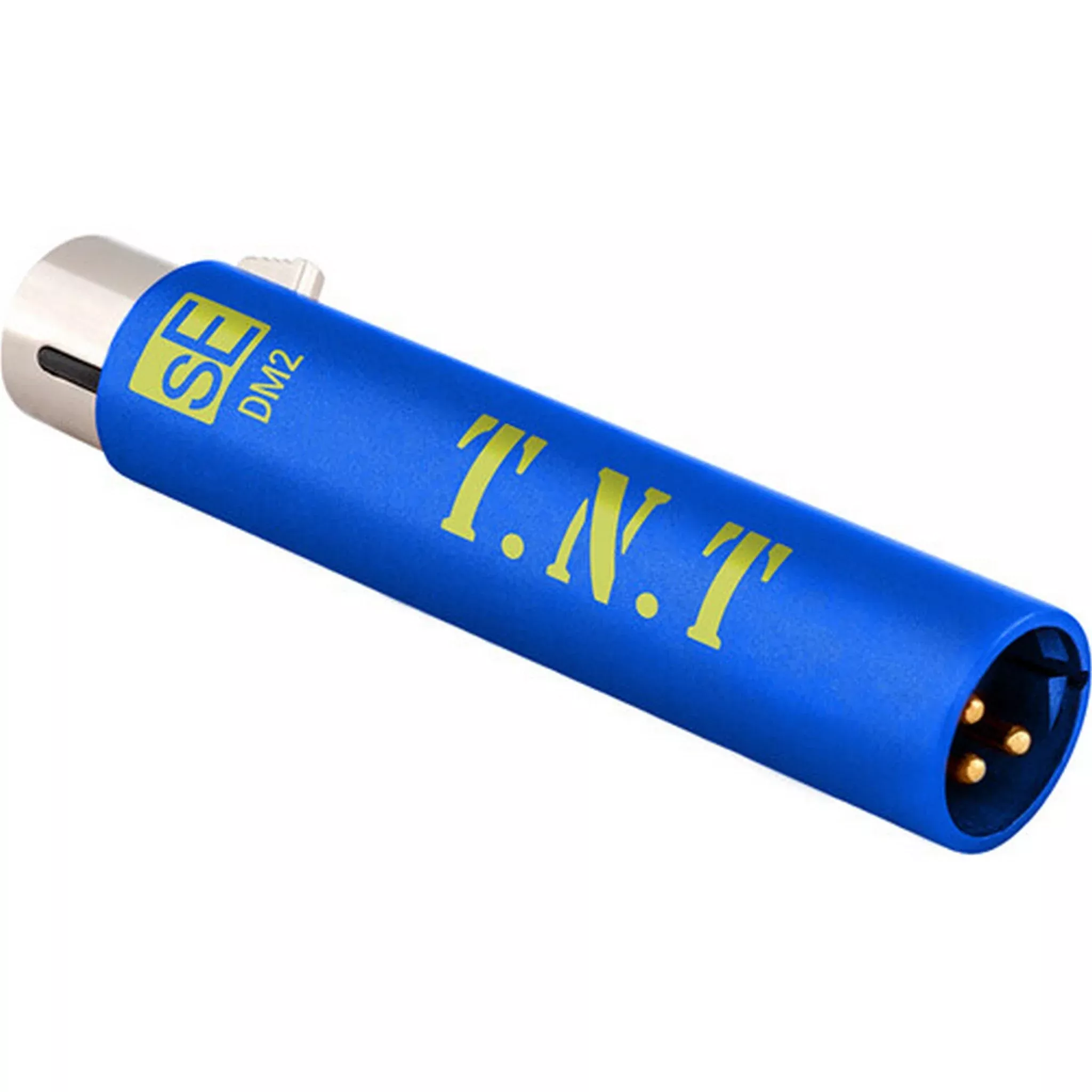

The sE Electronics DM2 TNTActive Inline Microphone Preamp with Selectable Gain offers the choicebetween a moderate +15dB or an explosive +30dB of gain, featuring an ultra-highimpedance input and eight load settings to suit any passive microphoneperfectly. On the other hand, the DM1 DYNAMITE delivers a substantial +28dB ofclean, transparent gain. Whether you are a podcaster, recording engineer, orhandling live sound, sE inline preamps offer an ideal solution to amplify thesignal from a passive microphone, reduce interference, and significantlyenhance the level to your preamp without introducing noise or altering thesound quality.
Key Features
- Cutting-edge electronics and top-notch FETsdeliver an exceptionally quiet
- Transformerless configuration for flawless audioexcellence
- Delivers unparalleled noise reduction within itscategory
- Remarkably low output impedance
- Capable of driving lengthy cable connections andminimizing vulnerability to RF interference, buzzing, and humming
- Effectively rejects all forms of electricalinterference and noise
- Boasts a high-quality finish that guarantees anappealing appearance for an extended period
- Sleek design facilitates effortless positioningin both studio and stage settings.
Technical Specifications
Frequency Range
10 Hz – 120,000 Hz (-0.3 dB)
Gain
15 dB / 30 dB
Max output level (0.5% THD)
9.5 dBV (3.0 V)
Output noise level
1 V @ 15 dB / 6.6 V @ 30 dB
Powering
48 Volts according to IEC 61938
Electrical impedance
135 Ohms
Recommended load impedance
>1k Ohms
Current consumption
3.1 mA
Connectivity
3-pin male/female XLR connector
Dimensions
Diameter: 19 mm (0.75 in.) Length: 95.5 mm (3.76 in.)
Weight
80 g (2.82 oz.)
