Multicore Cable

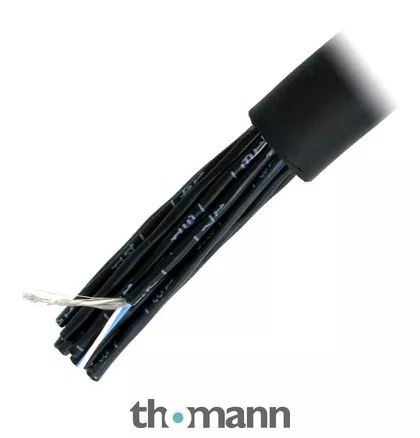

- Quantum Highflex Multipair 24
- High quality 24-pair multicore for studio purposes as well as permanent installations
- Completely torsion-free
- Cold-resistant up to -30°
- Pairs of wires insulated individually with rubber sheath
- Cu coil shielded with 99% coverage
- Low capacitance of 45 pF cable/cable
- 110 Ohm (AES/EBU), compliant over hundreds of metres
- Wire cross-section: 0.14 mm²
- Sheath: S-PVC
- AWG26
- Conductor insulation: Skin PE
- Shielding: Cu coil, paired
- Coverage: 99%
- Temperature range: -30° to 70°
- Sheath colour: Black, matte
- Capacitance cable/cable at 1 m: 45 pF
- Capacitance cable/shield at 1 m: 90 pF
- Conductor resistance at 1 km: <90 Ohm
- Insulation resistance at 1 km:>1 GOhm
- Characteristic impedance: 110 Ohm
- Available sinceJuly 2004
- Item number171618
- Sales Unit1 metre(s)
- Number of NF-channels 24
- Screened Pair Yes
- Colour Black
