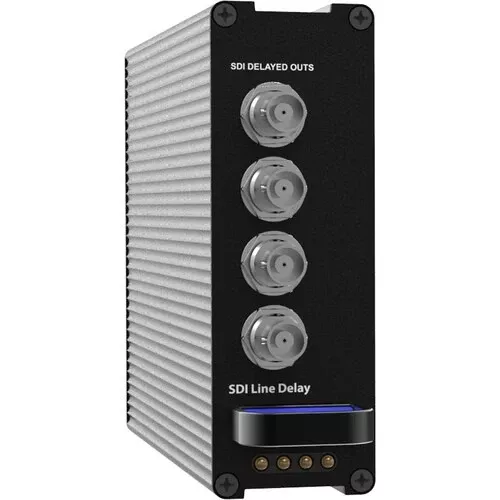

The module can be inserted in the 8-Bay Frame in either direction, allowing the inputs/outputs to be positioned either at the front or the back of the unit depending on the application. There are no exposed PCBs as all modules are enclosed, and therefore protected against static shock, dust and general wear and tear. Gold-plated, redundant spring pins with magnetic retention deliver DC power to the modules, meaning no messy cabling and external power bricks are needed. Read more
Features
- Reversible Design: Can be inserted front-to-back or back-to-front in the 8-Bay Rackmount Frame for flexible placement.
- Robust & Protected: Enclosed module with no exposed PCBs, protecting against static, dust, and wear; also features magnetic retention for power pins.
- Integrated Delay: Delays the full SDI payload (up to 16 channels of audio, 48kHz/24bit).
- Precision Adjustment: Fine-tune delay by frame or millisecond using an onboard OLED screen and rotary wheel.
- Versatile Signal Support: Handles 3G, HD, and SD formats (e.g., 1080p, 720p, 480i, 576i).
- Rackmount Integration: Powers via gold-plated pins from the XVVRF8 frame, eliminating external power bricks and messy cables.
- Connectivity: 1x 3G-SDI BNC input, 1x 3G-SDI BNC loop-thru (no delay), 4x 3G-SDI BNC delayed/mirrored outputs.
- SMPTE Compliance: Supports various standards (ST425M, ST424M, ST292M, ST259M).
