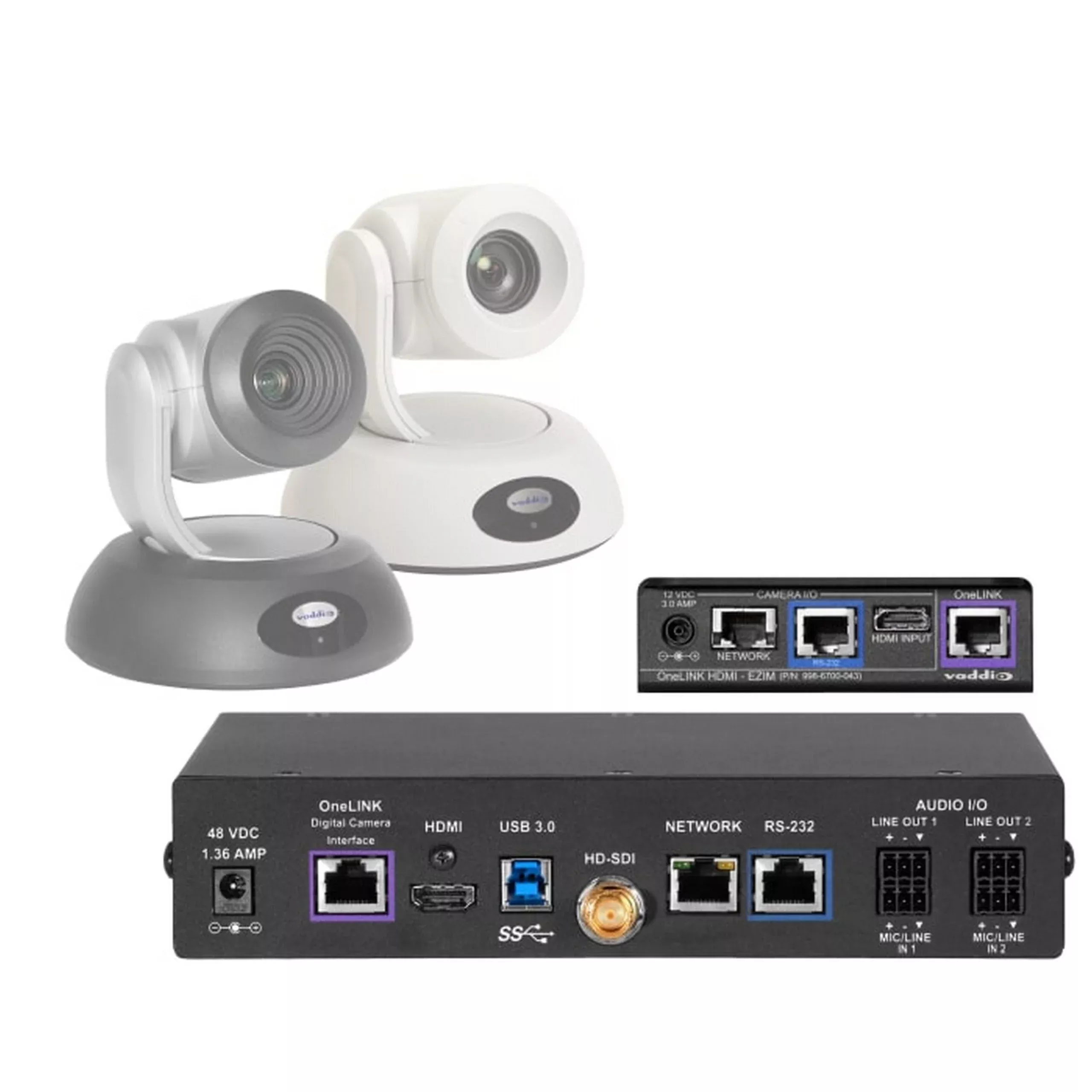

Vaddio OneLINK Bridge Kit for RoboSHOT HDMI Cameras

Vaddio OneLINK Bridge Kit for RoboSHOT HDMI Cameras

For RoboSHOT12 HDMI and RoboSHOT 30 HDMI cameras.

Notcompatible with RoboSHOT 12E HDMI and RoboSHOT 30E HDMI cameras.

More flexibility for room design andinstallation
Makes yourcamera a conferencing camera: OneLINK Bridge connects a non-USB camera andaudio source, and bridges to a USB stream for easy connection to USB-basedconferencing applications such as Skype for Business, Google Hangouts, andZoom. You get traditional videoconferencing audio quality with soft-clientconnectivity – without the traditional videoconferencing price tag.

Soundscomplicated – but it’s not. This OneLINK Bridge kit simplifies installation byextending power, video and control to your camera over a single Cat-5e cable upto 328 ft (100m) to your legacy RoboSHOT HDMI camera.

Benefits:
Moreflexibility in camera placement
HDBaseTinterface extends power, video and control up to 328 ft (100 m)
Delivers anuncompressed USB 3.0 media stream for high-definition cloud conferencing
Connects toany cloud conferencing application, such as Google Hangouts, Skype forBusiness, WebEx, Zoom and others
Plug andplay usability for BYOD conferencing environments
Intuitivebrowser-based user interface for configuration and system administration

This PackageIncludes:
OneLINKBridge Interface
OneLINK HDMIEZIM with mounting screws
Quick-StartGuide
48V powersupply with AC cord set(s)
4 qty3-position phoenix-style connectors
2 qty 1′(0.3m) cat-5 cables, black
1′ (0.3m)HDMI cable
1′ (0.3m)EIAJ-04 to EIAJ-04 power cable for camera
6′ (1.8m)USB 3.0 cable, type A to B

Key Features

• Simple,clutter-free camera extension with HDBaseT technology
• Power,video, and control over a single Cat-5e cable up to 230 ft. (70m), or over aCat-6 cable up to 328 ft. (100m)
• Bridgesaudio and video for easy soft-client conferencing
• Configurableaudio matrix with AEC
• SimultaneousHDMI, USB 3.0, and HD-SDI outputs
• Up to1080p/60 resolution available over uncompressed USB

Technical Specifications

Certifications
CE Approved,FCC Approved, UL Listed
Product Width
8.38″(21.27 cm)
Product Height
1.72″(4.37 cm)
Product Depth
6.5″(16.51 cm)
Product Weight
3.3 lbs (1.5kg)
Power Type
Local Power
Input Ports
HDbT, MicLevel Audio, Line Level Audio
Output Ports
3G-SDI,HDMI, USB 3 Type B, Audio
Browser-based User Interface for RemoteControl
Built-in
Control Method
Web UI,Telnet
OneLINK Compatibility
Native
OneLINK Bridge adds
328 ft (100M) Power, Video, Control Extension
Operating Temperature
32 to 104F(0 to 40C)
Warranty
2 years
Power Supply
48 VDC, 1.36A, 12 VDC, 3.0 A
Quick-Connect Compatibility
No
Distance
328 ft (100m)
