Vaddio Polycom Codec Kit for OneLINK Bridge to EagleEye IV Camera
For PolycomRealPresence Group series 300, 310, 500 or 700 codecs with the Polycom EagleEyeIV camera.
More Flexibility for Room Design andInstallation
Get morefrom your codec: Bridge traditional videoconferencing equipment into theUSB-based conferencing applications such as Skype for Business, GoogleHangouts, or Zoom that your budget-minded customers may prefer.
Make yourcamera a conferencing camera, without a codec: OneLINK Bridge connects anon-USB camera and audio source, and bridges to a USB stream for easyconnection to USB-based conferencing applications such as Skype for Business,Google Hangouts, and Zoom. You get traditional videoconferencing audio qualitywith soft-client connectivity – and without the traditional videoconferencingprice tag.
Soundscomplicated – but it’s not. Tailored for Polycom codec systems and compatiblewith the Polycom EagleEye IV camera, this OneLINK Bridge kit simplifiesinstallation by extending power, video and control to your camera over a singleCat-5e cable up to 328 ft (100m).
Benefitsinclude:
Moreflexibility in camera and/or codec placement – no longer dependent on thelocation of the codec
HDBaseTinterface extends power, video and control up to 328 ft (100 m) – Polycomsystems can now go into larger rooms
Delivers anuncompressed USB 3.0 media stream for high-definition cloud conferencing,making traditional codecs more flexible
Connects to anycloud conferencing application, such as Google Hangouts, Skype for Business,WebEx, Zoom and others
Plug andplay usability for BYOD conferencing environments
Intuitivebrowser-based user interface for configuration and system administration

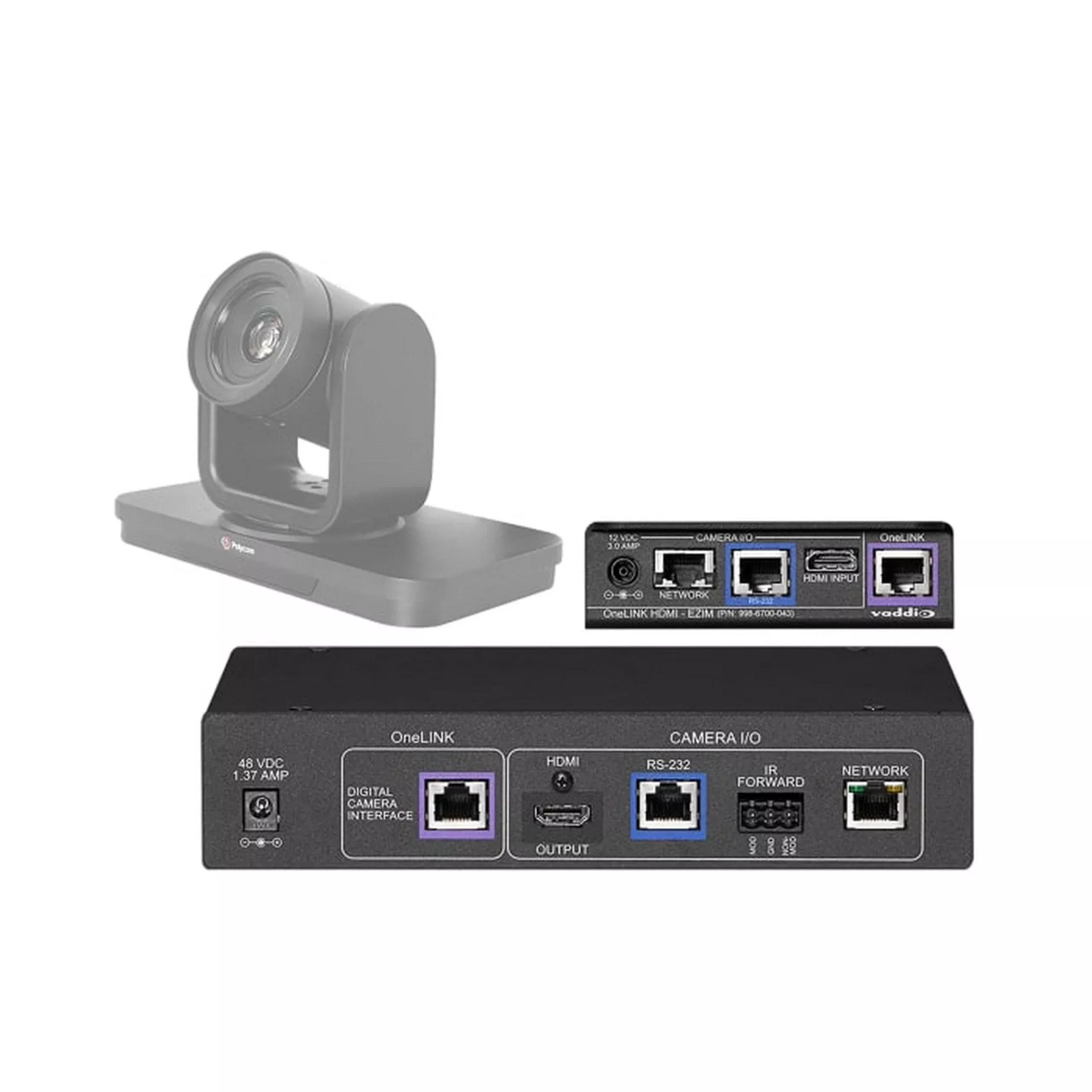

This PackageIncludes:
OneLINKBridge Interface
OneLINK HDMIEZIM with mounting screws
Thin ProfileWall Mount (black) with mounting hardware
Quick-StartGuide
48V powersupply with AC cord set(s)
4 qty3-position phoenix-style connectors
1′ (0.3m)fan-out cable for Polycom, EZIM side
2′ (0.6m)fan-out cable for Polycom, codec side
6′ (1.8m)USB 3.0 cable, type A to B
EZCameraRS-232 Control Adapter
Key Features
- Simple,clutter-free camera extension with HDBaseT technology
- Power, videoand control over a single Cat-5e cable up to 230 ft. (70m), or over a Cat-6cable up to 328 ft. (100m)
- Bridgesaudio and video for easy soft-client conferencing
- Configurableaudio matrix with AEC
- SimultaneousHDMI, USB 3.0, and HD-SDI outputs
- Up to1080p/60 resolution available over uncompressed USB
Technical Specifications
Certifications
CE Approved,FCC Approved, UL Listed
Product Width
8.38″(21.27 cm)
Product Height
1.72″(4.37 cm)
Product Depth
6.5″(16.51 cm)
Product Weight
3.3 lbs (1.5kg)
Power Type
Local Power
Input Ports
HDbT
Output Ports
3G-SDI,HDMI, USB 3 Type B, Audio
Browser-based User Interface for RemoteControl
Built-in
OneLINK Compatibility
Native
OneLINK Bridge adds
328 ft (100M) Power, Video, Control Extension, HDMI, 3G-SDI, USB 3.0, Audio Mixer
Operating Temperature
32 to 104F(0 to 40C)
Warranty
2 years
Power Supply
48 VDC, 1.37A
Distance
328 ft (100m)
