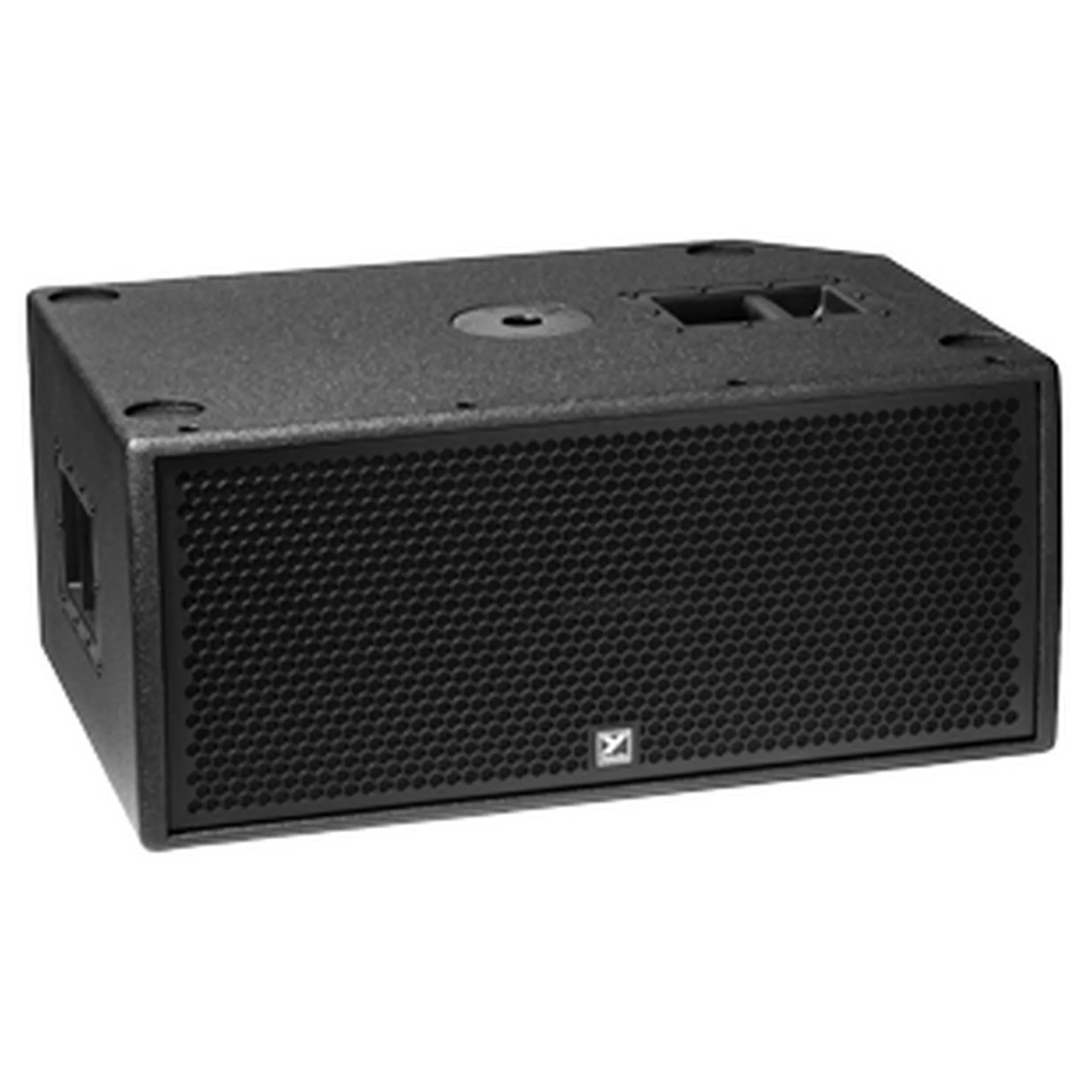

Yorkville PSA1S 2800 Watts Peak Powered Compact Stackable Active Subwoofer
The1400-watt dual 12-inch active PSA1S bass reflex subwoofer is the idealcompanion sub for the PSA1 full range loudspeaker system. Solid 15mm birchplywood cabinet construction and an integrated all-metal pole-mount adaptormake the PSA1S the perfect platform for stacking PSA1 cabinets in a scalablearray system. Compact design, heavy-duty wheels and handles ensure the PSA1Scan easily be handled by a single operator for economical system set-up.
Key Features
- Ultra HighPerformance Compact Active Subwoofer
- High QualityDual 12-inch Speaker Components
- Bass ReflexDesign
- IdealCompanion Subwoofer for PSA1 System
- Solid 15mmBirch Cabinet Construction
- IntegratedPole Mount Adaptor & Heavy Duty Wheels
- Optional :PSA1SF Flyable Version
- Made inCanada
Technical Specifications
Active or Passive
Active
Program Power (Watts)
1400 WattsProgram (2800 Watts Peak)
Max SPL (dB)
135dB Peak(129dB Continuous)
Frequency Response (Hz +/- 3dB)
37Hz-100Hz
Crossover Frequency (Hz)
fixed @100Hz
Driver Configuration
2×12-inch(Bass Reflex Cabinet)
LF Driver(s)
2×12-inchCeramic with 3-inch VoiceCoil
LF Impedance (Ohms)
2×4 Ohm Load
LF Power Amplifier (Watts)
Class D
Power Consumption (typ/max)
210VA / 440VA
Flyable Version
PSA1SF(EYEBOLT3/8A x 4 Required)
Enclosure Materials
15mm Birch
Baffle Material
15mm Birch
Covering / Finish
Paint
Dimensions (DWH xbackW, inches)
22.75 x14 x32
Dimensions (DWH xbackW, cm)
57.8 x 35.6x 81.3
Weight (lbs/kg)
120 / 54.6
