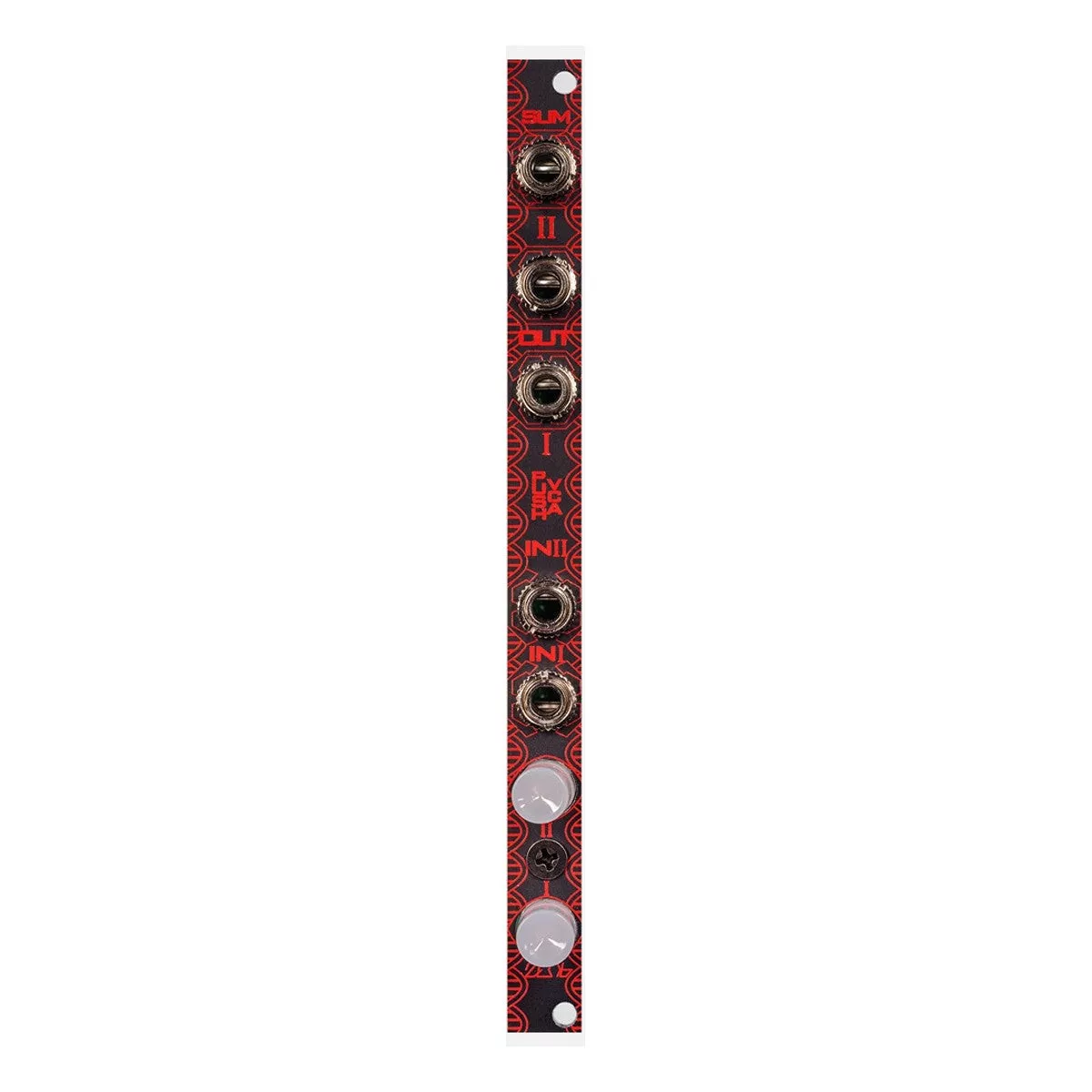

Zlob Push VCA Performance Mu te Module (Momentary)
The Zlob Modular Push VCA is a compact 2HP Eurorack module combining two DC-coupled VCAs with performance-friendly LED push-button mutes. Designed for both audio and CV signals, it gives you two independent unity-gain VCA channels that can be muted directly from the front panel, making it useful for live performance, quick patch changes, rhythmic gating, and hands-on signal control.
Both VCA outputs remain available individually, while a summed output provides a mix of the two channels for compact routing and mixing duties. The newest version also includes +5V normalizations, allowing voltage to be toggled at the outputs when nothing is patched into the inputs, with up to 10V available from the summed output. This makes the Push VCA a flexible utility for muting, switching, mixing, and voltage control in a very small footprint.
Key Features
-
Compact 2HP Eurorack performance mute/VCA module
-
Two independent unity-gain DC-coupled VCAs
-
Works with audio or CV signals
-
LED push-button mutes for hands-on performance control
-
Individual outputs and summed output available simultaneously
-
Sum output mixes both channels
-
+5V normalization for voltage toggling with no input patched
-
Up to 10V available from the summed output in normalized use
-
Reverse power protected
-
Aluminum panel
-
Depth: 60mm
-
Power: +12V 40mA / -12V 20mA / 0mA 5V
The Zlob Modular Push VCA is a smart utility for compact Eurorack systems, offering dual VCA control, direct mute performance, summed mixing, and voltage toggling in only 2HP.
