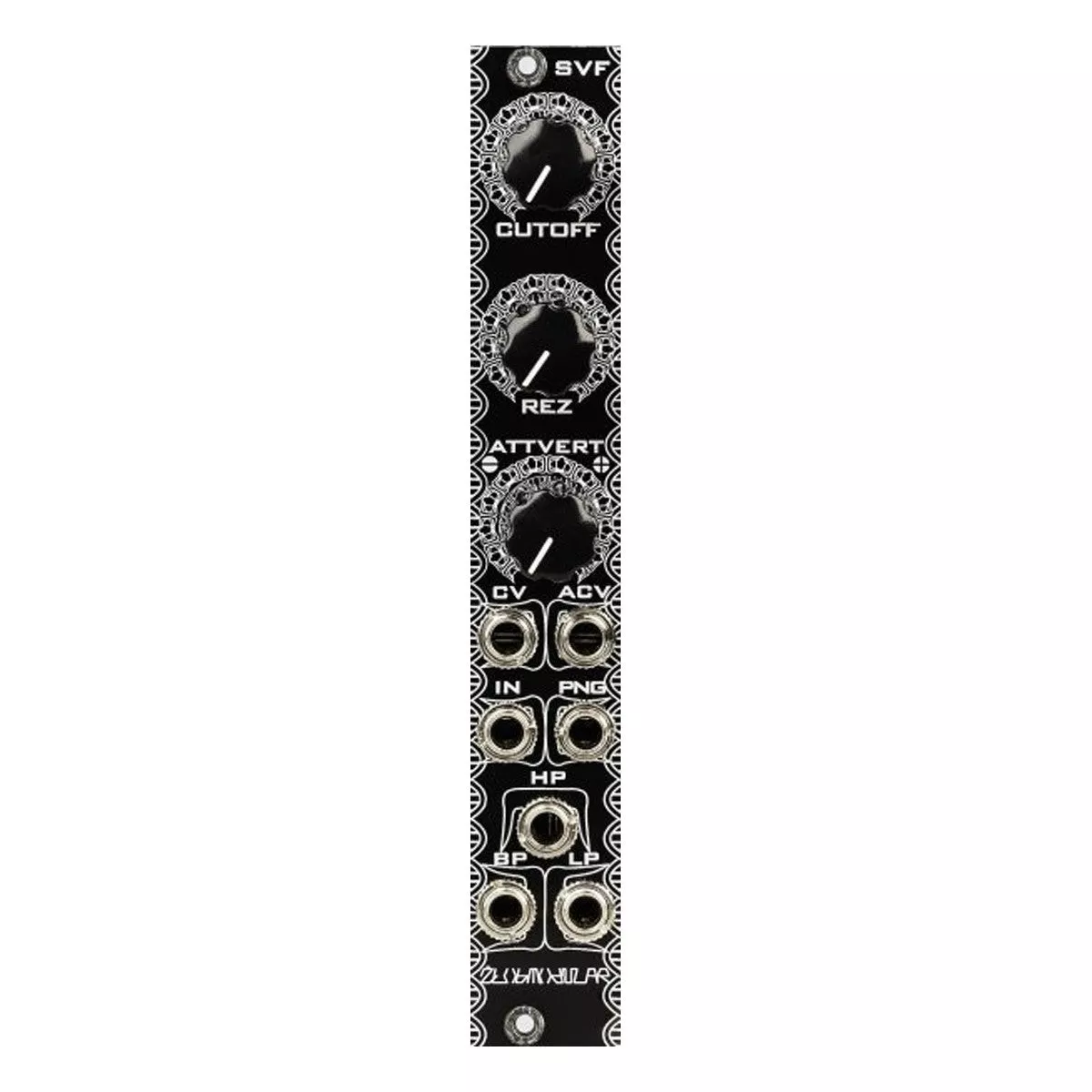

Zlob SVF Pingable Filter Module

Zlob SVF Pingable Filter Module

The Zlob Modular SVF is a compact 4HP 2-pole 12dB state variable filter for Eurorack systems, offering low pass, band pass, and high pass outputs in a small but flexible format. Inspired by WASP and Thomas Henry filter topologies, it is designed for everything from clean filtering and classic subtractive synthesis to resonant sweeps, pinged plucks, and chaotic self-oscillation.

The module includes two audio inputs, with the second input jumper-selectable for standard audio input or pingable operation. Dedicated CV inputs let you modulate cutoff frequency, including an attenuverted ACV input for more controlled movement. Jumper-selectable resonance modes allow the SVF to move from clean and precise to juicy, drippy, low-pass-gate-like plonks, screaming resonance, and self-oscillating sine-like tones.

Key Features

• Compact 4HP Eurorack state variable filter

• 2-pole 12dB filter design

• Low pass, band pass, and high pass outputs

• Inspired by WASP and Thomas Henry filter topologies

• Two audio inputs

• Input 2 can be jumper-selected for standard audio or pingable operation

• Cutoff CV input for frequency modulation

• ACV input with attenuverter control

• Jumper-selectable resonance modes

• Capable of clean filtering, max resonance, self-oscillation, or no-oscillation modes

• Can produce sine-like tones with no input in self-oscillation mode

• Output can exceed 10Vpp in max resonance mode

• Reverse power protected

• Width: 4HP

• Depth: 46mm

• Power: +12V 15mA / -12V 15mA

Whats Included

• Zlob Modular SVF Eurorack Pingable Filter Module

• M3 black nylon screws

The Zlob Modular SVF is a powerful compact filter for modular users who want classic multimode filtering, pingable response, flexible resonance behavior, and experimental self-oscillation in just 4HP.
