JBL AC566-WH 15″ 2-Way Full-Range Loudspeaker System

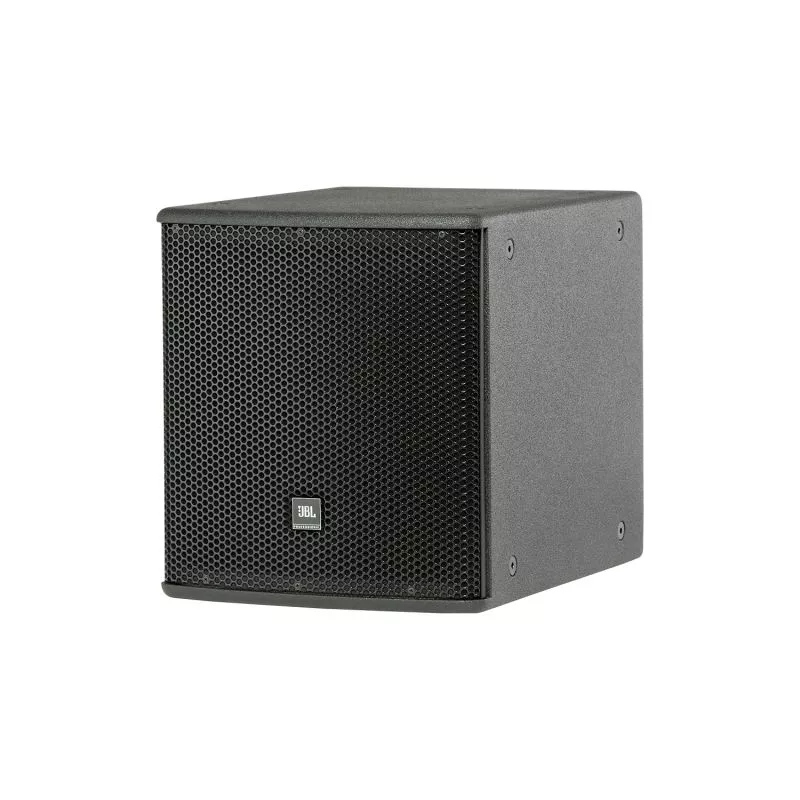

Finish: WHITE (AC566-WH). JBL publishes photos of the black version only; the pictures show the same product in black. This listing is the white finish.
The AC566-WH is a compact, versatile full-range studio monitor and reinforcement speaker engineered for control room, project studio, and live tracking environments. Its white textured finish and lightweight design integrate seamlessly into recording spaces, while dual Neutrik connectors and threaded suspension points support flexible mounting for desktop, stand, or wall-mounted placement in any session setup.
Audio Performance
This system delivers a maximum SPL of 122 dB at 1 meter (128 dB peak) with a nominal sensitivity of 98 dB (1W @ 1m), enabling efficient amplifier coupling and headroom-friendly gain structure in the control chain. The 75 Hz to 18 kHz frequency response (±3dB) captures articulate midrange clarity and extended high-frequency detail essential for mixing and mastering, while the 60° × 60° coverage pattern in both vertical and horizontal planes establishes a consistent sweet spot and predictable off-axis behavior for accurate monitoring positions.
Design & Build
The cabinet features robust 0.59″ enclosure construction with a durable white textured finish, supported by M10 threaded suspension points and four back-panel threaded inserts for MultiMount attachment compatibility. The high-slope passive crossover at 1.5 kHz maintains phase coherence and minimizes tonal coloration across the critical midrange vocal and instrument band, while the 15″ low-frequency driver and 25 mm compression driver deliver focused, controlled bass integration and articulate treble definition for transparent recording monitoring and mixing.
Key Features
- 15″ (384 mm) low-frequency driver with 25 mm (1″) exit compression driver
- Frequency response ±3dB: 75 Hz to 18 kHz
- Frequency range -10dB: 60 Hz to 20 kHz
- Maximum SPL: 122 dB @ 1m (128 dB peak)
- Nominal sensitivity: 98 dB (1W @ 1m)
- 8 Ohm impedance with 250W/500W/1000W power capacity (Continuous/Program/Peak)
- System power rating (AES): 350W (1400W peak) over 2 hours
- 60° × 60° coverage pattern (vertical and horizontal)
- High-slope passive crossover at 1.5 kHz with minimal band overlap
- Dual Neutrik NL4MP connectors and screw terminal connectivity
- M10 threaded suspension points with MultiMount-compatible back inserts
- White textured finish with 0.59″ cabinet construction
The AC566-WH combines full-range monitoring accuracy with straightforward integration, making it an effective choice for home studios, project rooms, tracking spaces, and any scenario requiring dependable, phase-coherent sound reproduction for professional recording and mixing work.
